Scan code: LN143714 Manufacturer code: MAG PANO M100R PZ WHITE

MSI MAG PANO M100R PZ Micro-ATX Tower Tempered Glass PC Gaming Case White

MSI MAG PANO M100R PZ, White, Micro-ATX Chassis w/ Tempered Glass Window, 4x 120mm ARGB Fans, USB 3.0, mATX/mITX

Thumbnail 1 : MSI MAG PANO M100R PZ Micro-ATX Tower Tempered Glass PC Gaming Case White Thumbnail 2 : MSI MAG PANO M100R PZ Micro-ATX Tower Tempered Glass PC Gaming Case White Thumbnail 3 : MSI MAG PANO M100R PZ Micro-ATX Tower Tempered Glass PC Gaming Case White Thumbnail 4 : MSI MAG PANO M100R PZ Micro-ATX Tower Tempered Glass PC Gaming Case White
Scan code: LN143714 Manufacturer code: MAG PANO M100R PZ WHITE
£89.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

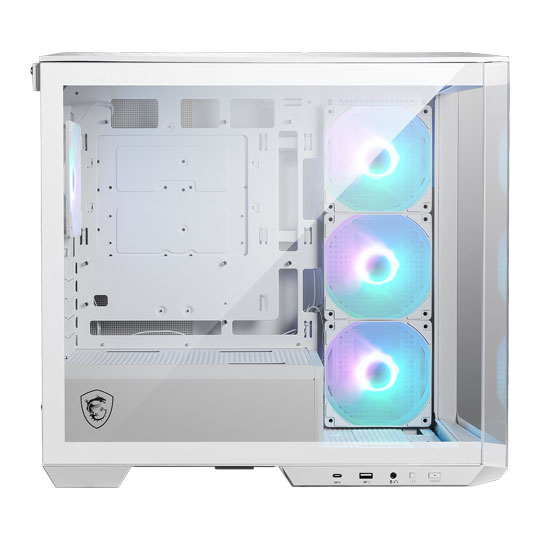

Pre-build with Reverse-Blade Fan

Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.


Support Back-Connect Motherboard

Supporting back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

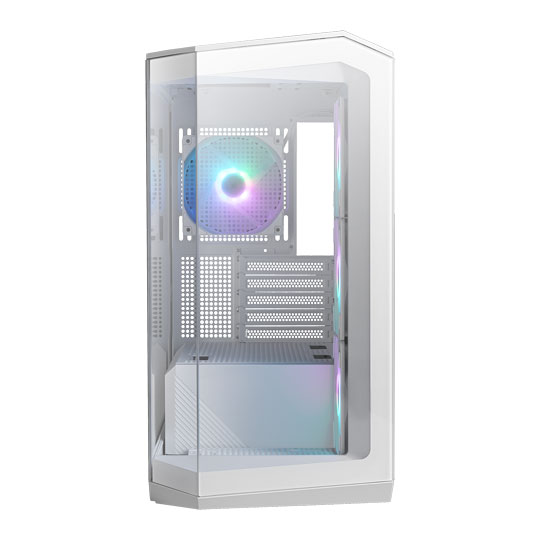

270-degree Panoramic Display

Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.


GPU Support Stand

Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the chassis.


1 to 4 ARGB-FAN Control Board

This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.

Features

• Form Factor: Micro-ATX Tower.
• Motherboard Support: M-ATX / ITX.
• Drive Mount Support: 1x 3.5", 1x 2.5"/3.5".
• Expansion Slots: 5.
• Pre-installed Fans: 4x 120mm ARGB.
• Dimensions: 235 x 405 x 440 mm.

Specifications
Core Chassis Specifications
Case Edition MAG PANO M100R PZ
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x LED Control Button
  • 1 x Line Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Drive Bays
  • 1 x 2.5"/ 3.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 5
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included
  • 6 x 120mm
  • 4 x 120mm / 3x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 140mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 175 mm
Max GPU Card Length 390 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 200 mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials
Dimensions 235 x 405 x 440 (WxHxD mm)
Weight
Package Type
Please Note
Additional Information
Scan Code LN143714
Model Number MAG PANO M100R PZ WHITE
GTIN 4711377136488
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
