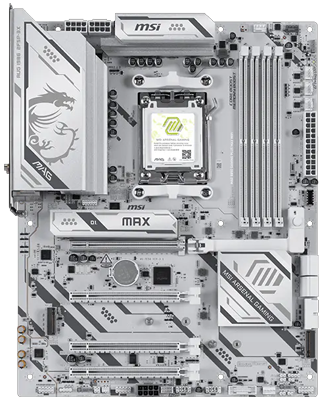

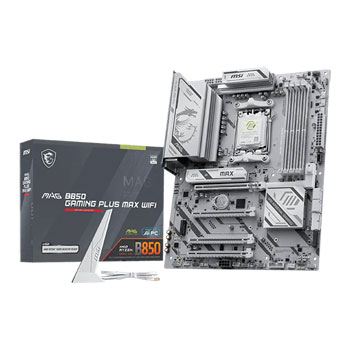

MSI MAG B850 GAMING PLUS MAX WIFI AM5 DDR5 PCIe 5.0 ATX Motherboard
MSI MAG B850 GAMING PLUS MAX WIFI, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 5G/WiFi7, USB 3.2 A+C, AMD EXPO, ATX
Email me when the availability or price changes
Finance this product
- From £9.77 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

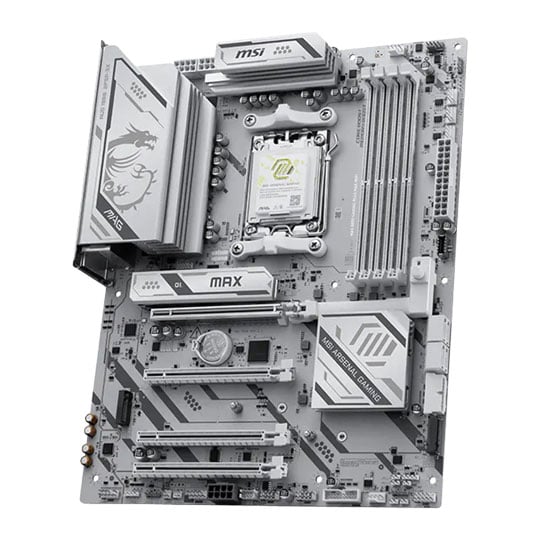

MAG B850 GAMING PLUS MAX WIFI DDR5 PCIe 5.0 AMD ATX Motherboard from MSI
Brutal & Battle ReadySupporting AMD Ryzen 7000, 8000 and 9000 Series processors on the AM5 platform, the all-white MAG GAMING PLUS MAX delivers excellent compatibility for gaming, streaming and demanding productivity workloads. With support for DDR5 memory up to 8200MHz (OC), PCIe 5.0 graphics cards and Gen5 NVMe SSDs, this motherboard is engineered to maximise system responsiveness and unlock the full potential of modern hardware. Integrated WiFi 7, 5G LAN and USB 10Gbps connectivity provide ultra-fast networking and peripheral support, while extensive cooling options including multiple fan headers, M.2 Shield Frozr heatsinks and pump support help maintain stable temperatures during heavy workloads. Featuring three M.2 slots, four SATA ports, EZ Debug LEDs and Flash BIOS functionality, the MAG B850 GAMING PLUS MAX WIFI offers an ideal balance of performance, expansion and reliability for gaming PC builds.
B850AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
ATXForm Factor
Incredible Power Design

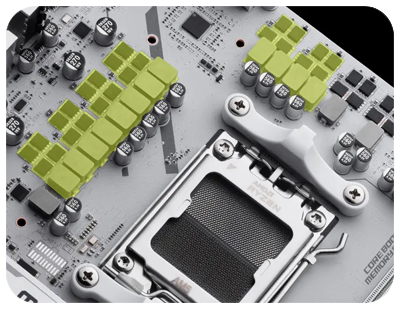

12+2+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 12+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850 GAMING PLUS MAX WIFI is fully prepared to handle the demands of high-end processors.
12 Vcore Power - SPS 60A
2 SOC Power
1 Misc Power

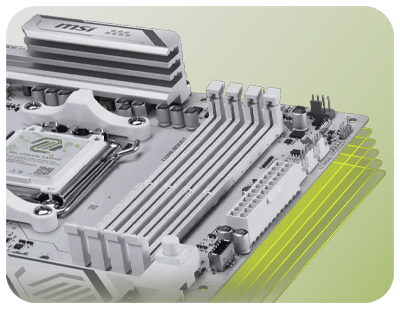

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 6 PCB Layers Server-grade PCB material 2oz Thickened Copper

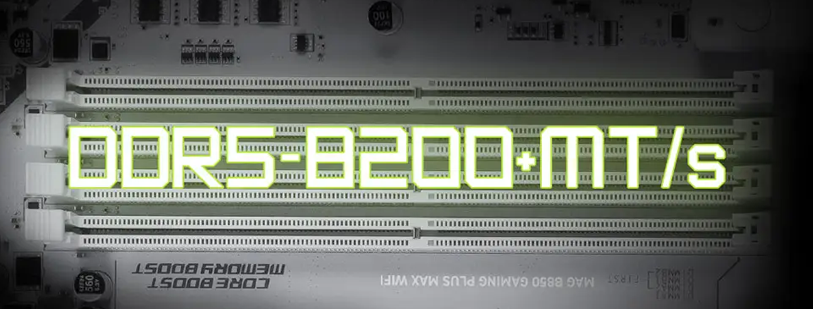

High Performance Memory Support
Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850 GAMING PLUS MAX WIFI is primed to deliver world-class memory performance.
EXPO / A-XMP Support
Memory Boost
SMT Process

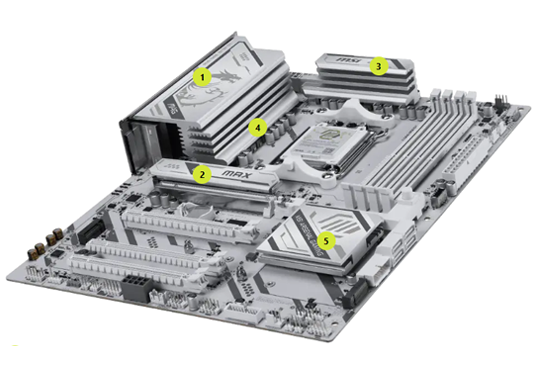

Frozr Cooling Design
1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
2. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
3. Heavy Plated VRM HeatsinkThe upper MOS is protected with the VRM heatsink for efficient heat dissipation.
4. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
5. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
Thermals Done Your Way

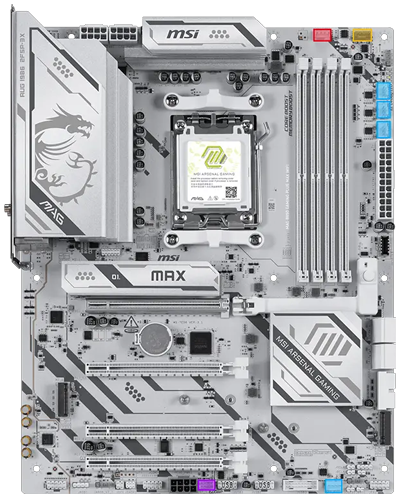

DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan
Exclusive EZ CONN. - JAF_2
A Breakthrough in Bandwidth

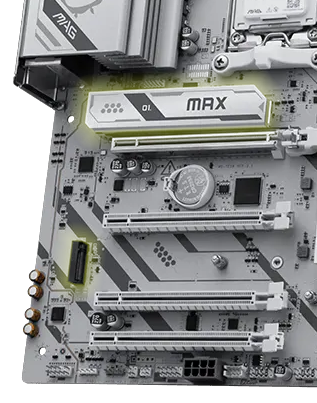

Quadruple Armoured M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
• M.2 PCIe 5.0 x4 (22110/2280)
• M.2 PCIe 5.0 x4 (2280/2260)
• M.2 PCIe 4.0 x2 (2280/2260) [Not Pictured]

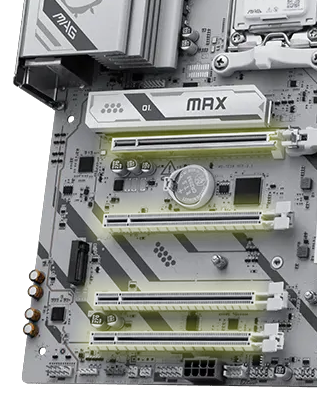

Packed with PCIe
For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.
x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x1 Full-Length PCIe 4.0 (x4)
x2 Full-Length PCIe 3.0 (x1)
Supercharge Your Networking
WiFi 7 - 5.8Gbps
WiFi 6 - 2.4Gbps
WiFi 7The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.

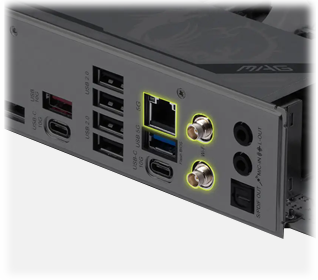

High-Bandwidth, Low Latency LANMSI's premium 5G network solution provides incredible transfer speeds for demanding users.

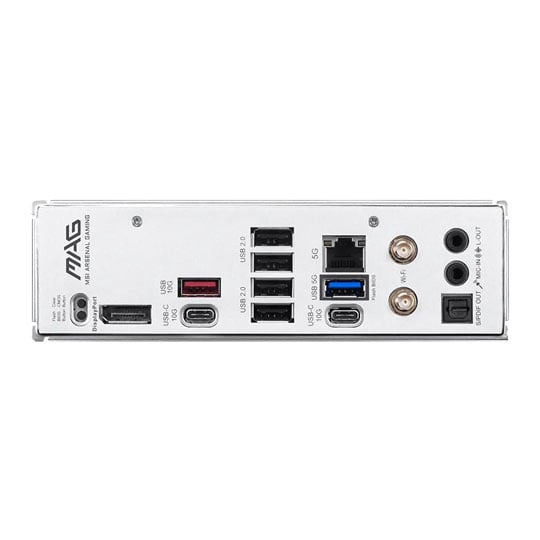

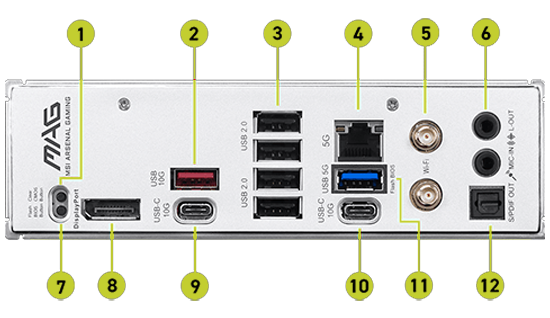

Peripheral Power
