Scan code: LN108115 Manufacturer code: B550 TOMAHAWK

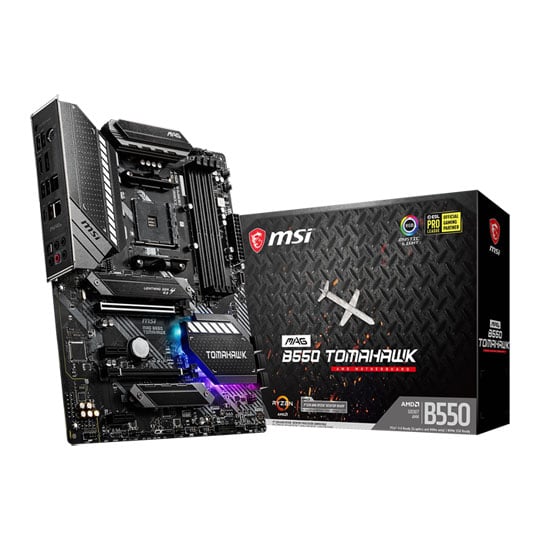

MSI AMD B550 MAG TOMAHAWK ATX Motherboard

MSI MAG B550 TOMAHAWK, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI AMD B550 MAG TOMAHAWK ATX Motherboard Thumbnail 2 : MSI AMD B550 MAG TOMAHAWK ATX Motherboard Thumbnail 3 : MSI AMD B550 MAG TOMAHAWK ATX Motherboard Thumbnail 4 : MSI AMD B550 MAG TOMAHAWK ATX Motherboard
Scan code: LN108115 Manufacturer code: B550 TOMAHAWK
There are 6 people viewing this product
£179.99
Order now and get it tomorrow, Fri 14th Aug
From £16.16 / month (APR 14.9%)
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 14th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI B550 TOMAHAWK 3rd Gen Ryzen ATX MAG Seires Motherboard

MSI b550 Tomahawk

Conquer the Battlefield with this arsenal gaming motherboard The MSI B550 Tomahawk Motherboard has been crafted for the new 3000 XT Series AMD Ryzen processors. The MAG Series B550 Tomahawk also boasts lightning fast PCIe 4.0 and lightning gen 4 m.2 support to launch you into the next generation of gaming. The B550 Tomahawk has been through rigorous quality testing and is designed to be a sturdy, durable and easy to install, the user friendly interface makes this motherboard perfect for entry level gamers and is sure to provide you with an incredible user experience. The motherboard has a striking grey and black design and RGB lighting with the ability to add more RGB LED strips to outshine your opponents.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™ ReadyCompatible Processors

ATXForm Factor

Special Features of the B550 Tomahawk

Main Features
Core Boost

Core Boost TechnologyMSI's premium layout design, that is ready to unleash maximum performance.

Digital PWM

Digital PWMHighest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

Core Boost

6 layer PCB6 layer PCB provides higher performance and long-lasting system stability without any compromise.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and electromagnetic interference for better performance, stability and longevity.

2oz Copper PCB

2oz Thickened Copper PCBAn enhanced PCB design improves heat dissipation and performance reliability.

Premium Thermal Solution

Temperature Features
7w thermal Pad

7W/mK Thermal PadPreminum 7W/mK thermal pad covers both the MOSFET and chokes, providing better heat transfer to the heatsink.

Extended Heatsink

Extended HeatsinkMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.

Pump Support

Pump Fan Supportoptimise your watercooling pump speeds for better flow and noise control.

m.2 Shield

M.2 Shield FrozrBuilt-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, helping them run faster.

Next Generation Connectivity

Networking Features
Turbo USB

Turbo USBFeaturing the TURBO USB 3.2 GEN 2 10Gbps, with reversible Type-C connector.

DDR4 Boost

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

PCIe 4.0

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

2.5g LAN

2.5G plus Gigabit LANFeaturing 2.5G, Gigabit LAN with LAN manager delivers better network experience.

Unbelievable Power Solution

New VRM Power Design

10 +2 +1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain heavy daily work.

1 PhaseAPU Power

2 PhasesSOC Power

10 PhasesDuet Rail Power System/Smart Power Stage

Digital PWM IC

Protect your Sensitive Components During Installation and Beyond

Extended Heatsink

Extended Heatsink With newer processors housing more cores, thermal and power design becomes for important to ensure temperatures remain stable. The MSI B550 Tomahawk features an all-metal extended heatsink to enlarge the surface area you can also expect more efficient heat dissipation allowing even high end processors to run at full speed.

Experience Core Boost

b550 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.

Give yourself a Lightning Fast Experience

4K Recording

LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds when compared to other brands. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what and with optimised memory traces you don't need to worry about your system crashing under load!

Protecting your PCIe Slots

B550  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MAG B550 TOMAHAWK supports multiple GPU solutions. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Connections at your Fingertips

B550  I/O

True Colour Control with MSI Mystic Light

Mystic Light

Your Motherboard Your Style Take personalisation up a notch with MSI Mystic Light, with 16.8 Million colours and 29 effects, create your own style and sync across mystic light supported products via the mystic light desktop or mobile application.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MAG TOMAHAWK
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3066
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4866+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x Rainbow 5050 RGB LED 5V connector (JRAINBOW1)
  • 6 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Realtek (2.5GbE LAN)
  • 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108115
Model Number B550 TOMAHAWK
GTIN 4719072728625
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
MSI MAG B550 TOMAHAWK, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, USB 3.2 Gen2, ATX is rated 5.0 out of 5 by 4.
Rated 5 out of 5 by from A great solid motherboard A great solid motherboard. After two months of ownership no hardware problems. Boosting my AMD R7 3700x to it's correct boost clock. Under Linux had an issue with audio popping/cracking noise which there is a work around. Link aggregation works well. Under Windows 10 home Link aggregation not straight forward required a NDIS driver from Realtek.
Date published: 2020-08-10
Rated 5 out of 5 by from Great board, Solid power delivery Having waited for B550 to launch before upgrade the wait was worth it. The MSI MAG B550 TOMAHAWK is features rich, with Dual Ehternet, PCIe 4.0 and more. Allowing for further future upgrades this motherboard is a solid choice for anybody looking for solid option with longevity. Writing this review after a month of usage I have little complaints. One small issue has occurred with booting to the POST screen using DisplayPort, however it still boots to Windows just fine and HDMI works without issue. I suspect a BIOS update will fix this in the furture. Pros: Strong power delivery solution Good VRM cooling and MOSFET temperature sensor 2.5 Gigabit Ethernet plus 1 Gigabit Ethernet USB Type-C front panel header Dual cooled M.2 slots Cons: Only six USB ports on Rear IO Other boards have better audio codec No integrated Wi-Fi Conclusion: All round a solid board with future proof features. Value for money could be better but is in line with other manufactures and is expected with new chipsets. Overall highly recommended motherboard from MSI.
Date published: 2020-08-06
Rated 5 out of 5 by from Great build quality, feature rich motherboard I've recently rebuilt my computer and have decided to go with a B550 motherboard to allow future upgrades. The box came with loads of accessories which I thought was neat! The board itself is very high quality, the heatsinks on it are hefty, but also have a great design. The manual is also very throughout (also including stuff like applying thermal paste) so I would fully recommend this for both new and existing PC euthanists.
Date published: 2020-08-06
Rated 5 out of 5 by from Great Board With the next-gen consoles not "wowing" me with exclusives, I decided it was the season to upgrade my PC instead. And swap Blue for Red with the increasing popularity of Ryzen. Having heard the B450 Tomahawk was a hit amongst builders, I decided to do some futureproofing this time round with my build and bagged the B550 Tomahawk instead. This board has alot of headers and ports available to expand the rig down the line. Especially fans, there's 7 fan headers on this beast! Speaking of which, not having a fan on the B550 chipset opposed to the X570 is reassuring for me. I wasn't keen on the idea of the tiny fan possibly failing (not saying that it does but the anxiety is there) as I'm not sure if its replaceable, thus its peace of mind. I'm not into overclocking so sadly I can't comment on what the board is truly capable of. It does however boost my Ryzen 7 3700x out of the box with ease and seen it around the 4.2GHz range comfortably. Great board ready for Zen 3 with alot of features, expansion, stellar RAM speed support and easy to work with. Another quality board from MSI. Having used their boards in my last build and that of other PC's within my family, we've never had an issue :) Scan as per usual is a fantastic outlet for PC components. Always hit these guys up for my components. Great service, thanks y'all :)
Date published: 2020-06-29
