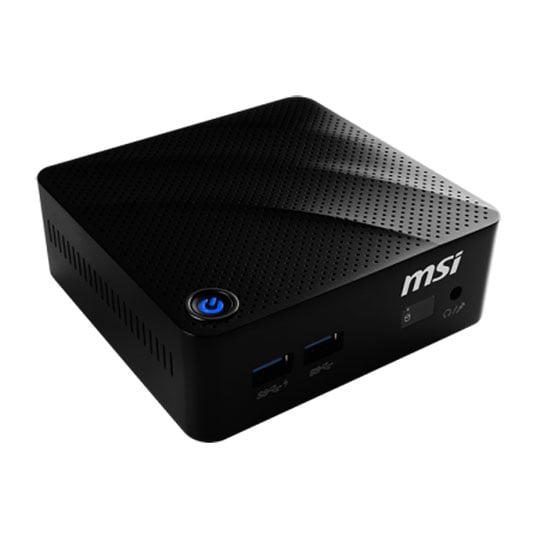

MSI MS-B120 Cubi Dual Core N3060 1.6GHz mSATA w/o OS

MSI Cubi Mini-PC, ID1, Intel Braswell N3060 1.6GHz CPU, DDR3L, mSATA, WiFi, Fanless, w/o OS

MSI
Scan code: LN75288 Manufacturer code: CUBI N-021BEU-BN3060XX Request call
£119.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 25th Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The energy efficient Mini-PC
IDEAL FOR COUNTLESS APPLICATIONS
The MSI Cubi N is one of the latest and smallest mini-desktops, suited to serve as HTPC at home, all-round media PC in the office or commercial project PC.

• HOME
• OFFICE
• COMMERICAL PROJECTS

PALM-SIZED SIZE PC
Smaller than a lunchbox and less volume than a large soda can, MSI Cubi N is the smallest mini PC in its kind. With a 0.45 liter case that still provides all the elements of a desktop-worthy PC. With a wavy meshed design, Cubi N is not just a mini PC but a fashion house decoration.

MORE EFFICIENCY, MORE ENERGY-SAVING
MSI Cubi N equips the Intel® Braswell N processor which is more powerful GPU performance, faster transmission speed and lower power consumption than last generation. With Intel Braswell processor, you can improve work efficiency while saving energy.

EASILY EXTEND YOUR STORAGE
Based on a modular design, the MSI Cubi N offers the possibility to install an additional 2.5” HDD for super high capacity data storage. Users can easily replace the bottom cover with an extended module, providing more space for those who desire more storage. With a built-in mSATA solid state drive and an extra 2.5” SSD or HDD, users can enjoy high-speed data processing and a big storage capacity at the same time.

HAPPINESS ALL AROUND
MSI Cubi N is equipped with a Intel® Braswell N processor which is a Braswell SoC with a 12 EU GPU and supports HEVC (H.265) decoding to provide substantially improved video quality and brings whole new ultra-realistic visuals. With Cubi N, you can experience the high quality of 4K UHD.
(Notice: Dual channel memories require for 4K video playback. Please install a pair of identical memories.)

MOUNTABLE TO A MONITOR
Cubi N is designed with a mini size and supports standard VESA-mount. Mount the Cubi N to the back of a monitor and make the PC completely invisible.

FANLESS DESIGN
Its innovative fanless heat dissipation design is both silent and energy efficient. A fan-less design also reduces malfunctions and increases the life-cycle of the Cubi N mini PC.

DO MORE WORK SIMULTANEOUSLY
Are you watching a lot of webpages and applications on a small monitor? With the HDMI port and VGA port MSI Cubi N can support dual monitors, you can do and view more. Features cubi
- 1x VGA out
- 1x HDMI out
- 2x USB3.1 gen 1
- 1x JR45
- 1x DC in
- Power Button
- 2x USB3.1 Gen1
- HDD Lens
- 1x Mic in / Speaker out
Specifications
Edition
Form Factor UCFF 4" x 4"
CPU Included Yes
CPU Type Intel Celeron
Core Dual Core
No. of Threads 2
CPU Model N3060
Clock Speed 1.60 GHz
Burst Frequency 2.48 GHz
CPU Cooler
CPU Socket Integrated CPU
Chipset N/A
Motherboard Form Factor
Memory Type DDR3L
Memory Included No
Memory Capacity Included N/A
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR3L - 1600
Max. Memory Capacity 8GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
GPU Chipset
GPU Cores
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 3.0 (x16)
Expansion Slots N/A
SATA SATA3
Storage Drive Included No
Storage Drive Type mSATA SSD
Storage Drive Capacity N/A
Optical Drive None
Drive Bays N/A
RAID Support N/A
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable
PSU Wattage
Operating System Included No
Operating System Not Included
Colour Black
Dimensions 116 x 112 x 55.5 (mm WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
SCAN/MSI
Telephone:
0871 472 4747
Customers also bought
Reviews
MSI Cubi Mini-PC, ID1, Intel Braswell N3060 1.6GHz CPU, DDR3L, mSATA, WiFi, Fanless, w/o OS is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Great Made a small Web surfing/video streaming box/retro console emulator for a dumb TV as the wife wanted the pc out of sight. Works great bolts to the back of the panel out of sight out of mind.
Date published: 2016-11-24
  • y_2017, m_8, d_23, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_75288, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

does this fit a standard 2.5" sata hdd

can u fit a standard 2.5" sata hdd out of the box or is it just msata only
Asked by: yukami
Hello, This is mSATA only, doesn't support 2.5inch HDD/SSDs as standard. Regards,
Answered by: LizN
Date published: 2016-11-11

SO-DIMM or normal RAM

This is listed as using DDR3L ram, but doesn't specify whether it is DIMM or SO-DIMM. I'm guessing it's SO-DIMM due to the size?
Asked by: eksime

PXE Boot

Does the NIC in this product support PXE booting?
Asked by: eksime

support for Linux

Does this support Linux OS
Asked by: TopGun
