MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
BUNDLEOffer
MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
Scan code: LN145409 Manufacturer code: MSI B650 GAMING PLUS WIFI & AMD 7600X RETAIL
Was: £354.98
£339.98
Add To Basket
Get it Tomorrow, 18 MarIn stock
  • Thumbnail 1 : MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
  • Thumbnail 2 : MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
  • Thumbnail 3 : MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
  • Thumbnail 4 : MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle
BUNDLEOffer

MSI B650 GAMING PLUS WIFI Motherboard + AMD Ryzen 5 7600X Motherboard Bundle

MSI B650 GAMING PLUS WIFI ATX Motherboard & AMD Ryzen 5 7600X Hardware Bundle
MORE INFO
MORE INFO

Scan code: LN145409 Manufacturer code: MSI B650 GAMING PLUS WIFI & AMD 7600X RETAIL
Was: £354.98£339.98
Order now and get it tomorrow, Tue 18th Mar
Add To Basket
Get it Tomorrow, 18 MarIn stock

Email me when the availability or price changes

  • By DPD On 18th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £14.17 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £28.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £339.98
    Total inc. interest: £339.98
    Monthly Payment: £14.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £339.98
    Total inc. interest: £339.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £9.03 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI steam promotion

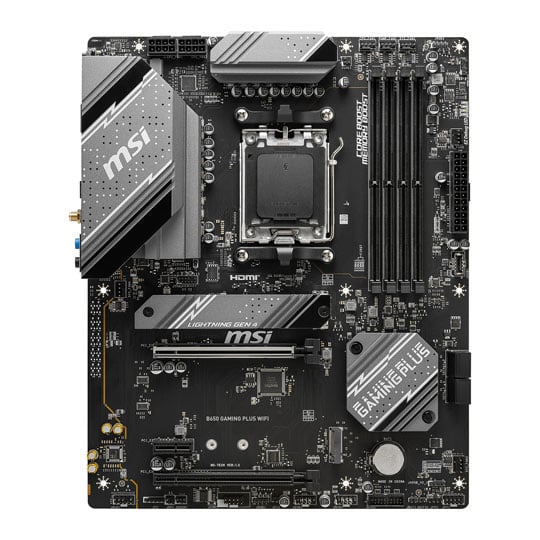

MSI B650 GAMING PLUS WIFI AM5 ATX Motherboard & AMD Ryzen 5 7600X Hardware Bundle

MSI B650 Motherboard

MSI B650 GAMING PLUS WIFI AM5 ATX MotherboardB650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and a convenient Wi-Fi solution for gamers who want all. Boasting support for DDR5 memory, an enhanced 12+2+1 power design, lightning-fast PCIe 4.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined, these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

AMD B650Chipset

AM5CPU Socket

Ryzen™ 7000 SeriesCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK Thermal Pads

M.2 Shield FROZR

M.2
Shield Frozr

Pump fan support

Pump Fan
Support

Extended heatsinks

Extended
Heatsink

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 4

Memory Boost

Memory
Boost

DDR5

DDR5
Support

HDMI

Lighting USB
20G

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

Digital
PWM

PCB

6-Layer
PCB

2oz copper

2oz
Thick Copper

8-Pin Power

2x 8-Pin
Power

XL Clip

XL
Clip

Massive Cooling Potential

1. Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

5. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Aggressive Power Design

Robust power design

12+2+1 POWER DESIGNUnleash and sustain the maximum performance with a VRM design built with a total of 12+2+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI B650 GAMING PLUS WIFI is ready to sustain heavy daily work.

Meet The Latest Generation

PCIE 4 slots

LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageB650 GAMING PLUS WIFI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

High-Bandwidth and Low-Latency Network

2.5G LAN & WIFI 6E

2.5G LAN & WiFi 6EMSI's premium network solution provides incredible data transfer speed for demanding users.

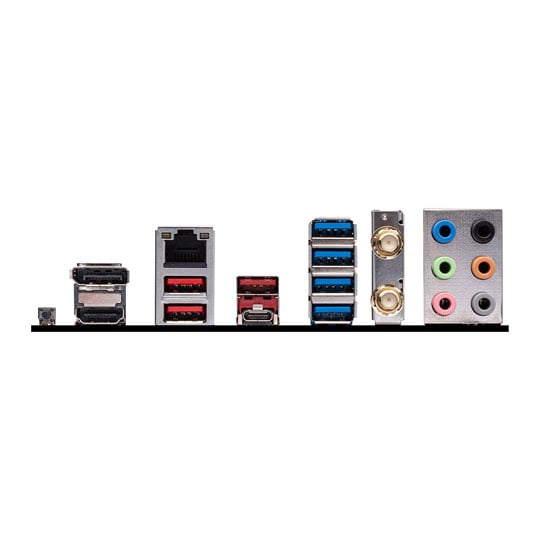

Fully Comprehensive I/O Panel

I/O Panel

Rear: 1: DisplayPort
2: 2.5G LAN
3: USB 3.2 Gen 2 10Gbps (Type-A)
4: USB 3.2 Gen 1 5Gbps (Type-A)
5: Wi-Fi / Bluetooth
6: Audio connectors
7: Flash BIOS Button
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2x2 20Gbps (Type-C)

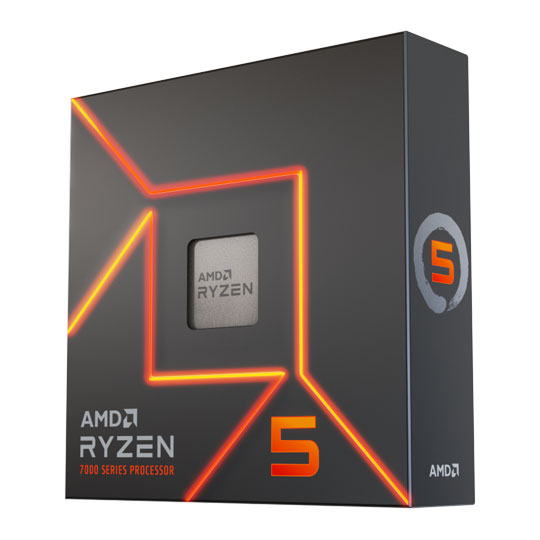

AMD Ryzen™ 5 7600X CPU - This Changes Everything

Ryzen 7000 Series CPU

The most advanced PC processor for gamers and creators.Welcome to the new era of performance. AMD Ryzen 7000 Series ushers in the speed of “Zen 4” for gamers and creators with pure power to tackle any game or workflow on the digital playground. The AMD Ryzen™ 5 7600X CPU boasts 6 cores / 12 threads, support for DDR5 (5200Mhz) memory and incredible boosted clock speeds of up to 5.3GHz taking you to the boundaries of modern day performance. The world’s most advanced PC processor for gamers and creators extends AMD performance leadership to power your PC.

AM5CPU Socket

4.7GHzBase Clock

5.3GHzBoost Clock

6/12Cores/Threads

Incredible Performance with 5nm Zen 4 Architecture

Ryzen Zen Architecture

Change How You GameWhen your PC has the world’s most advanced desktop processor for gamers, you can focus on what really matters: being victorious on the digital battlefield. Whether you’re playing the latest titles or revisiting a classic, the AMD Ryzen™ 7000 Series Ryzen 5 processors are a gaming powerhouse with high-performance “Zen 4” cores. With 6 cores, 12 threads, boost clocks of up to 5.3GHz and up to 38MB of cache, AMD Ryzen 7000 Series Ryzen 7 processors deliver game changing performance.

Create Until Your Hearts Content

Great for Creators

Elevate Your ExperienceWhether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen™ 7000 Series Ryzen 5 processors are built to beat the clock. With time-saving connectivity like PCIe® 5.0 storage support, ultra-fast WiFi® 6E, AMD EXPO™ technology, up to 12 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors.

Filled With Cutting-Edge Technology

AMD EXPO

Easy Overclocking, Game OnAccelerate your gaming with AMD EXPO™ technology. Higher memory frequencies and more aggressive settings can unlock higher and smoother frame rates in your favorite games.



down

Precision Boost 2Precision Boost 2 automatically raises processor frequencies for supercharged performance when you need it most.

up

Precision Boost OverdrivePrecision Boost Overdrive5 uses your motherboard’s robust design to boost clock speeds higher and longer, and lets you overclock at the touch of a button.

up

Unlocked for OverclockingTweak and tune your AMD Ryzen processor for personalised performance using the robust AMD Ryzen Master utility.

The Future of Ryzen™

AM5

Embrace True PerformanceThe all-new AMD Ryzen 7000 Series processors are packed with state-of-the-art technologies for an effortlessly modern PC. Highlights include high-speed DDR5 memory, PCIe® 5.0 support, AMD EXPO™ one-touch memory overclocking, and hyper-efficient 5nm manufacturing. Put an AMD Socket AM5 motherboard at the heart of your rig to dominate the games you love today and tomorrow. If your PC needs the latest and greatest capabilities, insist on AMD Ryzen™ processors.

AMD Processor Specifications

Range
Model
Architecture
Socket
Cores / Threads
Base Frequency
Turbo Frequency
Level 3 Cache
Memory
Controller
Maximum
Memory
Memory Type
Memory Frequency
PCIe 5.0 / 4.0 / 3.0 Lanes
Integrated GPU
TDP
Ryzen Threadripper PRO Ryzen Threadripper Ryzen 9 Ryzen 7 Ryzen 5 Ryzen 3 ATHLON
7995WX 5995WX 7985WX 5975WX 7975WX 5965WX 7965WX 7980X 7970X 7960X 9950X 9900X 7950X3D 7950X 5950X 5900XT 7900X3D 7900X 5900X 7900 9800X3D 9700X 8700G 7800X3D 7700X 7700 5800X3D 5800XT 5800X 5700X 5700G 9600X 8600G 8500G 7600X 7600 5600X 5600 5600G 5500 4600G 4500 4100 3000G
Zen 4 Zen 3 Zen 4 Zen 3 Zen 4 Zen 3 Zen 4 Zen 4 Zen 4 Zen 4 Zen 5 Zen 5 Zen 4 Zen 4 Zen 3 Zen 3 Zen 4 Zen 4 Zen 3 Zen 4 Zen 5 Zen 5 Zen 4 Zen 4 Zen 4 Zen 4 Zen 3 Zen 3 Zen 3 Zen 3 Zen 4 Zen 5 Zen 4 Zen 4 Zen 4 Zen 4 Zen 3 Zen 3 Zen 3 Zen 3 Zen 2 Zen 2 Zen 2 Zen
TR5 sWRX8 TR5 sWRX8 TR5 sWRX8 TR5 TR5 TR5 TR5 AM5 AM5 AM5 AM5 AM4 AM4 AM5 AM5 AM4 AM5 AM5 AM5 AM5 AM5 AM5 AM5 AM4 AM4 AM4 AM4 AM4 AM5 AM5 AM5 AM5 AM5 AM4 AM4 AM4 AM4 AM4 AM4 AM4 AM4
96 / 192 64 / 128 64 / 128 32 / 64 32 / 64 24 / 48 24 / 48 64 / 128 32 / 64 24 / 48 16 / 32 12 / 24 16 / 32 16 / 32 16 / 32 16 / 32 12 / 24 12 / 24 12 / 24 12 / 24 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 8 / 16 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 6 / 12 4 / 8 2 / 4
2.5GHz 2.7GHz 3.2GHz 3.6GHz 4.0GHz 3.8GHz 3.8GHz 3.2GHz 4.0GHz 2.8GHz 4.3GHz 4.4GHz 4.2GHz 4.5GHz 3.4GHz 3.3GHz 4.4GHz 4.7GHz 3.7GHz 4.0GHz 4.7GHz 3.8GHz 4.2GHz 4.2GHz 4.5GHz 3.8GHz 3.4GHz 3.8GHz 3.8GHz 3.4GHz 4.3GHz 3.9GHz 4.3GHz 3.5GHz 4.7GHz 3.8GHz 3.7GHz 3.5GHz 3.9GHz 3.6GHz 3.7GHz 3.6GHz 3.8GHz 3.5GHz
5.1GHz 4.5GHz 5.1GHz 4.5GHz 5.3GHz 4.5GHz 5.3GHz 5.1GHz 5.3GHz 5.3GHz 5.7GHz 5.6GHz 5.7GHz 5.7GHz 4.9GHz 4.8GHz 5.6GHz 5.6GHz 4.8GHz 5.4GHz 5.2GHz 5.5GHz 5.1GHz 5.0GHz 5.4GHz 5.3GHz 4.5GHz 4.8GHz 4.7GHz 4.6GHz 4.6GHz 5.4GHz 5.0GHz 5.0GHz 5.3GHz 5.1GHz 4.6GHz 4.4GHz 4.4GHz 4.4GHz 4.2GHz 4.1GHz 4.0GH ✖
384MB 288MB 256MB 144MB 128MB 72MB 128MB 320MB 160MB 152MB 64MB 64MB 128MB 64MB 64MB 64MB 128MB 64MB 64MB 64MB 96MB 32MB 16MB 96MB 32MB 32MB 96MB 32MB 32MB 32MB 20MB 32MB 16MB 16MB 32MB 32MB 32MB 32MB 32MB 19MB 11MB 11MB 6MB 4MB
Eight-channel Eight-channel Eight-channel Eight-channel Eight-channel Eight-channel Eight-channel Four-channel Four-channel Four-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel Dual-channel
2TB ECC Registered ECC Registered 2TB ECC Registered ECC Registered 2TB ECC Registered ECC Registered 2TB ECC Registered 1TB ECC Reg 1TB ECC Reg 1TB ECC Reg 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 192GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 192GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB 128GB
DDR5 DDR4 DDR5 DDR4 DDR5 DDR4 DDR5 DDR5 DDR5 DDR5 DDR5 DDR5 DDR5 DDR5 DDR4 DDR4 DDR5 DDR5 DDR4 DDR5 DDR5 DDR5 DDR5 DDR5 DDR5 DDR5 DDR4 DDR4 DDR4 DDR4 DDR4 DDR5 DDR5 DDR5 DDR5 DDR5 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4
5,200MHz 3,200MHz 5,200MHz 3,200MHz 5,200MHz 3,200MHz 5,200MHz 5,200MHz 5,200MHz 5,200MHz 5,600MHz 5,600MHz 5,200MHz 5,200MHz 3,200MHz 3,200MHz 5,200MHz 5,200MHz 3,200MHz 5,200MHz 5,600MHz 5,600MHz 6,000MHz 5,200MHz 5,200MHz 5,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 5,600MHz 6,000MHz 6,000MHz 5,200MHz 5,200MHz 3,200MHz 3,200MHz 3,200MHz 3,200MHz 2,666MHz 2,666MHz 2,666MHz 2,666MHz
128 / 0 / 8 0 / 128 / 0 128 / 0 / 8 0 / 128 / 0 128 / 0 / 8 0 / 128 / 0 128 / 0 / 8 48 / 32 / 8 48 / 32 / 8 48 / 32 / 8 24 / 0 / 0 24 / 0 / 0 24 / 0 / 0 24 / 0 / 0 0 / 20 / 0 20 / 20 / 0 24 / 0 / 0 24 / 0 / 0 0 / 20 / 0 24 / 0 / 0 24 / 0 / 0 24 / 0 / 0 0 / 16 / 0 24 / 0 / 0 24 / 0 / 0 24 / 0 / 0 0 / 20 / 0 20 / 20 / 0 0 / 20 / 0 0 / 20 / 0 0 / 0 / 20 24 / 0 / 0 0 / 16 / 0 0 / 10 / 0 24 / 0 / 0 24 / 0 / 0 0 / 20 / 0 0 / 20 / 0 0 / 0 / 20 0 / 0 / 20 0 / 0 / 16 0 / 0 / 16 0 / 0 / 16 0 / 0 / 16
✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✖ ✓ ✓ ✓ ✓ ✖ ✖ ✓ ✓ ✖ ✓ ✓ ✓ ✓ ✓ ✓ ✖ ✖ ✖ ✖ ✓ ✓ ✓ ✓ ✓ ✓ ✖ ✖ ✓ ✖ ✓ ✖ ✖ ✓
350W 280W 350W 280W 350W 280W 350W 120W 350W 350W 170W 120W 170W 105W 120W 105W 170W 105W 65W 120W 120W 65W 120W 105W 65W 105W 105W 105W 65W 65W 65W 65W 65W 105W 65W 65W 65W 65W 65W 65W 65W 65W 35W 35W
Specifications
Core Specifications
Edition B650 GAMING PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Serial (COM) Header
  • 4 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 3 x USB 3.2 Gen1 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN145409
Model Number MSI B650 GAMING PLUS WIFI & AMD 7600X RETAIL
GTIN 4711377098052
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
