Scan code: LN121601 Manufacturer code: B560-A PRO

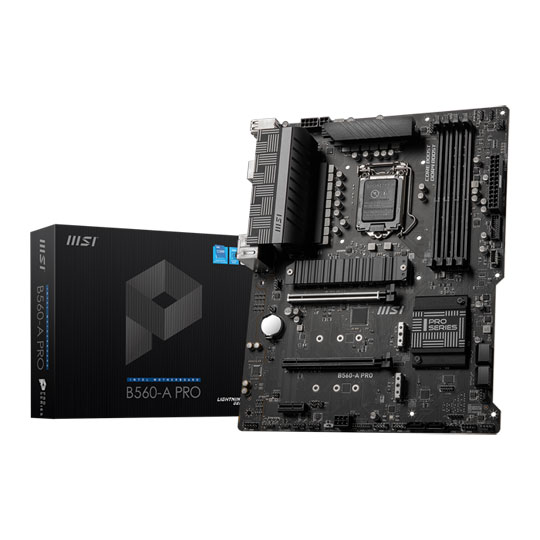

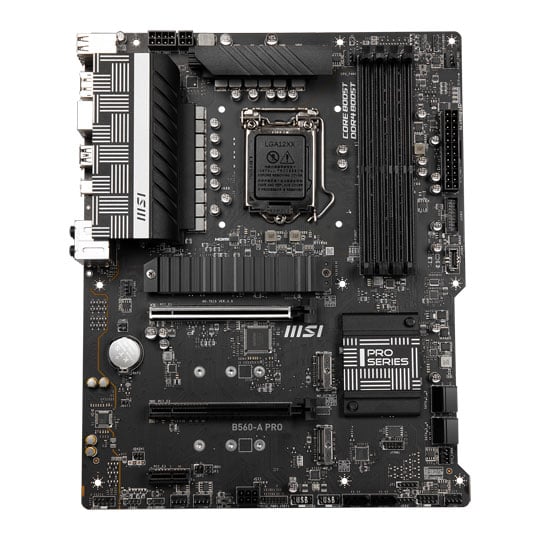

MSI AMD B560-A PRO ATX Motherboard

MSI B560-A PRO, AMD B560, S AM4, DDR4, SATA3, PCIe 4.0, 3x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : MSI AMD B560-A PRO ATX Motherboard Thumbnail 2 : MSI AMD B560-A PRO ATX Motherboard Thumbnail 3 : MSI AMD B560-A PRO ATX Motherboard Thumbnail 4 : MSI AMD B560-A PRO ATX Motherboard
Scan code: LN121601 Manufacturer code: B560-A PRO
£109.99Item currently awaiting an ETA
Pre order
From £9.17 / month (APR 0%) or 0% for 4 months
Monthly Payment: £9.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £109.99
Total inc. interest: £109.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

PRO Series

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimised professional workflows but also less troubleshooting and more longevity.


User Friendly Design

MSI motherboards feature tons of convenient and smart design features for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easy to install your own motherboard without any issue.


Thermal Solution for More Cores and Higher Performance

With more cores’ processors, thermal and power design is more important to make sure the temperature stays low. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors run at full speed with MSI motherboards.


M.2 Shield Frozr

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboard’s heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that the SSD maintains maximum performance.


Fully Controllable in BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


Frozr AI Cooling

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.


Optimised for Water Cooling

Designed to support the most popular All-In-One & customised water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.


Connectivity

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.


High-Bandwidth and Low-Latency Network

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.


Optimise Network for Lower Latency

MSI LAN Manager automatically classifies and prioritises the latency-sensitive applications, giving you the best online experience with low latency.


Fast and Future-Ready Storage

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.


Lightning Gen 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.


Lightning Gen 4 M.2

Utilising 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.


Boost Your HDD to Perform Like an SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.


Experience More

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.


12 + 2 +1 Power Design

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.


A Huge Step of DDR Performance

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.


Core Boost

Core Boost technology combines MSI's premium layout and optimised power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.


Dedicated High Definition Audio Processor

Make sure you enjoy the purest sound quality in both stereo and surround sound.


High Quality Audio Capacitors

A high-fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.


HD Audio Connectors

Keep your sound perfect by transmitting your audio with pure digital signal.


De-Pop Protection

Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.


Isolated Audio Design

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.


Separated Audio Layers

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.


Secure Boost

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

Features

• CPU Support: 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket.
• Memory: Supports DDR4 Memory, up to 5066(OC) MHz.
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.
• Audio Boost: Reward your ears with studio grade sound quality.
• Multi-GPU: With Steel armour PCI-E slots. Supports 2-Way AMD Crossfire™.

Specifications
Core Specifications
Edition B560-A PRO
Form Factor ATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x4
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 5 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 6-pin PCIe (Power)
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 3 x M.2
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TBT connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

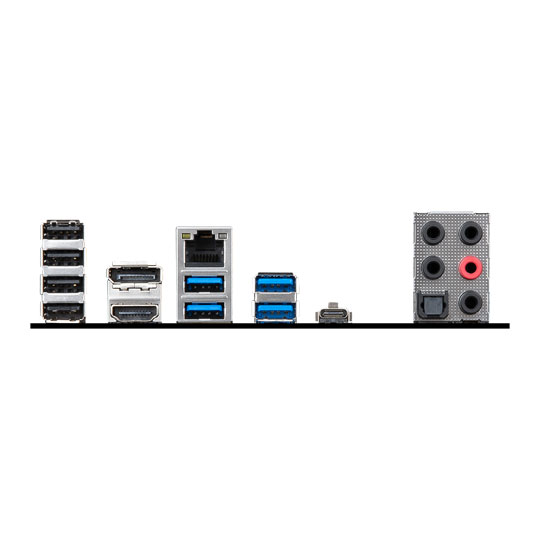

Rear I/O Connectors
  • 1 x Audio I/O
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 30.5 x 24.4 mm
Note
Additional Information
Scan Code LN121601
Model Number B560-A PRO
GTIN 4719072864316
