Scan code: LN100730 Manufacturer code: B450 TOMAHAWK MAX

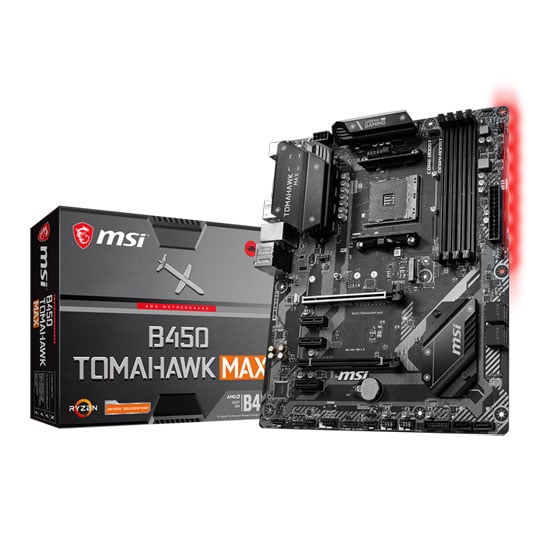

MSI AMD Ryzen B450 TOMAHAWK MAX AMD AM4 ATX Motherboard

MSI B450 TOMAHAWK MAX, AMD B450, S AM4, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : MSI AMD Ryzen B450 TOMAHAWK MAX AMD AM4 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen B450 TOMAHAWK MAX AMD AM4 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen B450 TOMAHAWK MAX AMD AM4 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen B450 TOMAHAWK MAX AMD AM4 ATX Motherboard
Scan code: LN100730 Manufacturer code: B450 TOMAHAWK MAX
£124.99
Low stock
Order now and get it tomorrow, Thu 16th Jul
From £11.22 / month (APR 14.9%)
Monthly Payment: £21.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £130.14
Monthly Payment: £11.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £124.99
Total inc. interest: £134.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

Get In The Game with the MSI B450 TOMAHAWK MAX

b450 MAX

MAX GAMING power ATX Motherboard from MSIGet serious gaming performance with the B450 TOMAHAWK MAX and its arsenal of game enhancing abilities. GAMING LAN, Turbo M.2, optimized gaming audio and great cooling with a gaming theme are just a few of many empowering aspects. The B450 TOMAHAWK max makes use of the striking design combined with PCI-e lane armouring whilst boosts to other areas such as the DDR4 memory power help push this motherboard above others and allow speeds of up to 4133(OC) MHz. Plus, you can be sure it will last thanks to the high-quality components used in construction.

Please note: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4.

AMD B450Chipset

AM4CPU Socket

ATXForm Factor

Keep Working and Gaming Through Intense Workloads

b450 cooling

STAY COOL AND SUSTAIN PERFORMANCE Cooling is essential for a high performance PC to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

Convenient System Assembly

RGB

TROUBLESHOOTING FRIENDLY DESIGN MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.

Optimized Layout for Perfect Stability and Performance

back

UNMATCHED MEMORY PERFORMANCE Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

A Motherboard Designed for Compatibility in Mind

RGB

Easier to Pick compatible Products MSI motherboards are designed with both physical and device compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products.

Packed and Easy to Use BIOS Setup

RGB

PERFORMANCE ENHANCING APPS Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.

Take your System to the Next Level

back

FAST AND FUTURE-READY STORAGE MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Offering a Wide Variety of Fast Device Options

back

MAXIMIZE YOUR USB DEVICE PERFORMANCE Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s.

Control Your System with MSI Dragon Center

Easy to Access Software to Monitor your system The exclusive and brand-new UI merges all the MSI software functions into one specific application – MSI Dragon Center. Not only integrates all the MSI software functions, but also sync all the MSI desktop products to work together, providing the best user experience. No more messy programs or ICONs, just one click and you can enjoy all the functions in Dragon Center.

Gaming Mode MSI Gaming Mode provides the most suitable setting for your whole gaming system, bring you the best gaming experience with one click.

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need.

OC Setting Interface With an intuitive interface, OC Setting allows you to tune settings to increase system stability, maximize performance and optimize your system’s cooling features.

Mystic Light Control Create your own colorful masterpiece with ease. Make your PC look and feel brand new with any color you want with just a few clicks.

Specifications
Core Specifications
Edition B450 TOMAHAWK MAX
Form Factor ATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3066(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 5050 RGB LED 12V connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 3 x Audio I/O
  • 1 x DVI-D
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN100730
Model Number B450 TOMAHAWK MAX
GTIN 4719072659226
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI UK Support
Telephone:
08708200009
Loading Please Wait

Please wait . . .

Reviews
MSI B450 TOMAHAWK MAX, AMD B450, S AM4, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.2 Gen2 A+C, ATX is rated 5.0 out of 5 by 25.
Rated 5 out of 5 by from Great! Great motherboard and shipping was very fast. Received it the next day despite them saying it would take multiple days.
Date published: 2020-06-09
Rated 5 out of 5 by from Quality product It may not be in the top end list of Motherboards but it certainly can hold its own with what you get for the money. The minute you unpack it, you can see the quality and it doesn't disappoint.
Date published: 2020-05-30
Rated 5 out of 5 by from Great for ryzen 7 3700x Itt works perfectly with my Ryzen 7 3700x I would recommend it for ryzen 3000series
Date published: 2020-05-02
Rated 5 out of 5 by from For the Price this Mobo is a Monster Have done my research and wanted a very good mobo for my new Ryzen 3700x and have noticed that the new X570 boards are way to expensive and not as good as this Monster for the price. This mobo is actually an upgrade from its predecessor which supports the new Ryzen 3 chips straight out of the box. Which also comes with an upgraded Bios software which is very nice. Also comes with a fancy RBG lights which you can setup as you wish. If your looking for a great mobo for the new Ryzen 3 chips and do not want to spend a fortune for a mediocre X570 board then this board here is for you. I think MSI has done a great job on this product. I would highly recommend this Board.
Date published: 2020-05-01
Rated 5 out of 5 by from One of the best motherboards from B450 series One of the best motherboards from B450 series so far! It comes out of the box and already compactible with 3nd ryzen processors! Price is really good for that kind of motherboard. I always choose MSI products if I can, and never was dissapointed. If you need good motherboard, with good VRAM, affordable price, and compactible with 3rd ryzen processors, get this one!
Date published: 2020-04-22
Rated 5 out of 5 by from Excellent MB for Ubuntu install - Win7 forget it! Really smooth install of Ubuntu and Debian systems - took Ubuntu Studio 19.10 with no problems, low latency kernel quite happy. Windows 7 was a disaster though - endless loops of updates to drivers, and after a day and a half I gave up. Probably a bit optimistic to try such an old-world O/S on a modern board, but I refuse to go down the spyware rabbit hole wihich is Win 10. Really happy with the board!
Date published: 2020-04-20
Rated 5 out of 5 by from Best VRAM in the B450 series Heat sinks and VRAM help keep this bad boy nice and cool even when overclocked with a Ryzen 2700X. Finished my PC build and now works like a beast
Date published: 2020-04-04
Rated 5 out of 5 by from Good board, bios already updated After building a pretty much new PC (specs below), I went to update the BIOS to make sure I didnt have any compatibility issues with NVMe, Ryzen 3600 etc etc., neednt have bothered as it was already the latest. So far, the board has performed as expected, the BIOS menu is easy to use. A few points: - Turned XMP on - worked fine, running at 3200Mhz as per mem specs - checked with CPU-Z - NVMe running to spec - checked with CrystalDiskMark - Fan profiles changed in bios for system and cpu fans - quiet for web surfing, full blast for gaming, linked to CPU load. - I would NOT recommend installing MSI Dragon Centre, caused me all sorts of problems as it kept resetting all sorts of settings without me instructing it too. - It is not advisable to use 'Gaming' mode which can be set in the BIOS or dragon centre - not first hand experience but you can unknowingly 'cook' your CPU reducing its lifespan. - Benchmarked my setup and am getting top 5-15th percentile on 3DMark (Firestrike and Time Spy). CPU running hot at stock under benchmark loads so will exchange the stock AMD cooler (not the MB's fault though). Final build (+scan codes): MSI B450 tomahawk max - LN100730 AMD Ryzen 3600 - LN99201 Palit Jetstream 2070 Super Corsair 3200 DDR4 LPX 2 sticks total 16GB Ryzen - LN82180 - not QVL but they work! WD Blue N550 Nvme 1 TB - LN101870 - not QVL but it works! Old PSU: Bequiet 630W bronze
Date published: 2020-04-03
  • y_2020, m_7, d_13, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_25
  • loc_en_GB, sid_100730, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What BIOS version ships with this Board? I'm looking to pair it with a 3600X and it requires a recent BIOS version for the 3000 series to be supported

Asked by: ST44RK7
Bought this board a few weeks ago and it shipped with the latest BIOS: 7C02v35.
Answered by: giblets
Date published: 2020-06-02

WiFi

Does this have built in WiFi into the motherboard
Asked by: Ethan8273
No.
Answered by: Forester
Date published: 2020-06-19

Ssd

Can I have a ssd installed straight onto the motherboard if so where?
Asked by: Ethan8273
You know the answer to this. You can fit a M2 SSD onto the board, MP510 980GB works flawlessly.
Answered by: SteveLBMK
Date published: 2020-02-21

SSD M.2

Will this fit a M.2 PCIe 3.0 x4 NVMe SSD 2280
Asked by: Ethan8273
You will lose two SATA ports if you go that route - just be aware! Double check with the MSI site for a list of compatible SSDs.
Answered by: Forester
Date published: 2020-06-19

what would be a good comapatible gpu for this mobo?

I'm new to pc builds so I don't want to buy the wrong stuff, which I have already learnt is easily done
Asked by: PoPeYeXC
Depends what you want to do, and how much you want to spend. Any nVidia or AMD GPU will do a grand job, and some of the AMD processors include on-board graphics - so this https://www.scan.co.uk/products/amd-ryzen-3-3200g-w-radeon-rx-vega-8-graphics-am4-zenplus-quad-core-4-thread-36ghz-40ghz-turbo-4mb-6 would do the job for not too much cash. I run an MSI AMD 580 GPU on the board, works without a hitch, and gives me up to 120 fps in X-Plane (my gaming weakness...) which is superb! If you went that road, it would cost you £170 for the CPU (Ryzen 5 3600, scan code LN99201) plus £160 for a GPU (Asus 580 board, scan code LN105692). So you really need to know what you want to do with the system before choosing! A word of caution - if you go for the on-board NVME solid-state drive option, you will lose two channels for SATA drives. In my case, I need all 6 SATA slots so I went for a single SSD as my operating system drive, and used the rest for DVD drive and RAID array etc. Blue skies - keep safe!
Answered by: Forester
Date published: 2020-06-19
