Scan code: LN110283 Manufacturer code: A520M PRO-C DASH

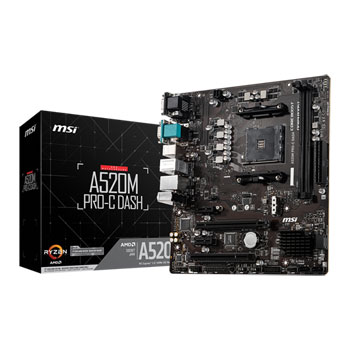

MSI AMD Ryzen A520M PRO-C DASH AM4 MicroATX Motherboard

MSI A520M PRO-C DASH, AMD A520, S AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.2 Gen1 A, MicroATX

Thumbnail 1 : MSI AMD Ryzen A520M PRO-C DASH AM4 MicroATX Motherboard Thumbnail 2 : MSI AMD Ryzen A520M PRO-C DASH AM4 MicroATX Motherboard Thumbnail 3 : MSI AMD Ryzen A520M PRO-C DASH AM4 MicroATX Motherboard Thumbnail 4 : MSI AMD Ryzen A520M PRO-C DASH AM4 MicroATX Motherboard
Scan code: LN110283 Manufacturer code: A520M PRO-C DASH
£83.99Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Make Your PC More Than You Think

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.


Stability & Reliability

MSI motherboards are tested for compatibility with over thousands of components and devices, and passed more than 7000 hours of validation. Moreover, smart designs, countless system tuning and troubleshooting tools are ready for all demanding users.


Secure Boot

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.


TPM Support

The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI PRO series motherboards support TPM to enable a deeper and broader level of security coverage.


Overvoltage Protection

To prevent an damage from unexpected high voltage power, MSI PRO motherboards are designed with optimized circuit and high quality components.


Humidity Protection

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.


High Temperature Protection

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.


Circuit Protection

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.


ESD Protection

Each and every I/O port is protected against the hazards of Electro Static Discharge.


EMI Protection

All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.


EZ Debug LED

Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.


Keep Out Zone

Circuits have been routed away from the case standoff keep out zones to minimise the damage impacts of misplaced mounting pieces.


Connectivity

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.


Network with High Security

A520M PRO-C DASH equips Realtek® 8111EPV Gigabit LAN, a security network solution combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.


Fast and Future-Ready Storage

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.


Experience More

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.


PCB with 2oz Thickened Copper

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.


A Huge Step of DDR Performance

MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.


Core Boost

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.


Customised Service

MSI provides customized services, including management of ACPI, system, networking, connectivity and security, for SI customers. Contact our local office for more information.

Features

Processor Support: 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors.
Memory Support: DDR4 Memory, up to 4600(OC) MHz.
DASH LAN: supports DMTF’s client management standard for secure out-of-band and remote management.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Stability: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost.
Reliability: over 7000+ validation hours industrial level test.
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Specifications
Core Specifications
Edition A520M PRO-C DASH
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2666(OC)
  • DDR4 - 2800
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 2933(OC)
  • DDR4 - 3000
  • DDR4 - 3000(OC)
  • DDR4 - 3066
  • DDR4 - 3066(OC)
  • DDR4 - 3200
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 220 mm
Note
Additional Information
Scan Code LN110283
Model Number A520M PRO-C DASH
GTIN 0000000000000
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
