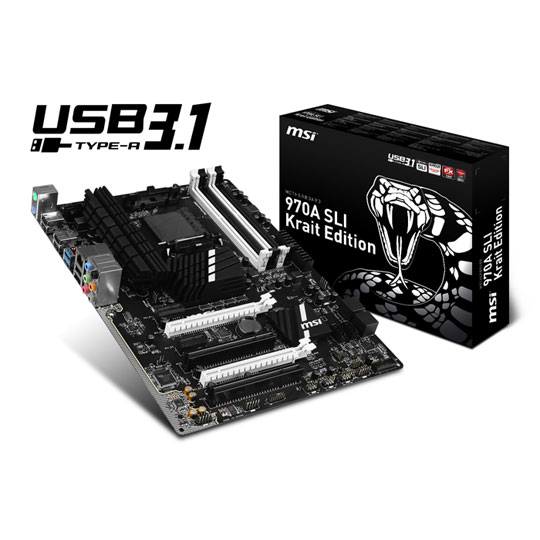

MSI 970A SLI Krait Edition USB 3.1 ATX Motherboard

MSI 970A SLI Krait Edition, USB 3.1, AMD 970, S AM3/AM3+, DDR3, PCIe 2.0 (x16), 2 Way SLi, 2 Way CrossFireX, ATX

MSI
Scan code: LN63289 Manufacturer code: 970A SLI Krait Edition Request call
£79.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 8th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview MSI USB 3.1 2X Faster
USB 3.1 allows for speeds up to 10 Gbps, doubling the speed compared to USB 3.0 and 20x faster than legacy USB 2.0. USB 3.1 is even faster than SATAIII! Transferring your favorite games, music and movies over USB has never been faster.

• 2X faster than USB 3.0
• 20x faster than USB 2.0
• Up to 10Gbps data transfer bandwidth
• Boost transfer rate between your PC and external storage devices

Optimized for multiple graphics cards
Get up to 2 PCI-Express 2.0 x16 slots, with optimal placement for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping off from your screen when running a NVIDIA® SLI™ or AMD® CrossFire™ gaming setup.

Military Class 4
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.

Dark Choke
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

Dark Cap
With their aluminum core design, Dark CAP`s has been a staple in high-end design mainboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

Isolated Audio PCB
With traditional onboard audio the signal is distorted by electromagnetic signals from the rest of the PCB. Acting like a dedicated soundcard by physically isolating the audio circuitry which is separated by a isolating path. Less interference gives you a more clear audio signal.

High Quality Audio Capacitors
With the use of professional Nichicon Japanese capacitors, specially designed for audio purposes, 970A SLI Krait Edition delivers high fidelity crystal clear sound with exceptional acoustics and realism.

• Acoustic series
• Lower Tolerance
• Lower Dielectric Absorption
• Lower ESR
• Lower Leakage Current
• Higher Stability

OC Genie 4
With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.

Click BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.

Command Centre
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.

Live Update 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

Unlimited Ramdisk
MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.

• Speed up system performance
• Load complete game images
• Speed up games, apps and browser

Fast Boot
No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.

M-Flash
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

• Backup/Restore Your BIOS to/from Any USB Flash Disk
• Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
• Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process Features • Supports AMD FX / Phenom™ II / Athlon™ II / Sempron™ processors for AM3+ socket
• Supports DDR3-2133(OC) Memory
• USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection
• USB 3.1 + SATA 6Gb/s
• Military Class 4: Top Quality & Stability
• OC Genie 4: Overclock in 1 Second
• Click BIOS 4: Easily Fine-tune Your System
• Multi-GPU: NVIDIA SLI & AMD CrossFire Support
• Command Center: Control & Customize Your PC Settings
• Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
• M-Flash: Simply Update & Backup Your BIOS
• Live Update 6: Easily Update The Latest BIOS & Drivers
Specifications
Specifications
Form Factor ATX
CPU Socket AM3+
QPI Speed N/A
Chipset AMD 970 / SB950
Memory Type DDR3
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 2133(OC)
Maximum Memory Capacity 32GB (4x8GB)
Graphics Connectors
Graphics Interface PCIe 2.0 (x16)
SLI Support 2 Way SLi
Crossfire Support 2 Way CrossFireX
Audio Realtek ALC887 7.1 HD Audio
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules 1 x Realtek RTL8111E (Gigabit LAN)
SATA SATA III 6Gb/s
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Water Cooled No
Expansion Slots
  • 2 x PCI
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x8 Bandwidth)
Internal I/O
  • 1 x 24pin (V)
  • 1 x 3pin Fan (V)
  • 1 x 4pin Fan (V)
  • 1 x 8pin (V)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector (4-pin)
  • 1 x FP Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 6 x USB 2.0
  • 2 x USB 3.1 Type-A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 4.5 out of 5 by 2 reviewers.
Rated 5 out of 5 by good quality board, there are better for its price range let me start by saying that the quality of the board is great and just what I expected from msi, its got a very thick strong feel to it and the matt black finish looks really nice against a white case, fans, etc. I bought this board after my asus sabertooth started to get random ram errors and as its my spare system my wife sometimes uses I didn't want to spend a great amount on a motherboard, ive always used msi boards were I could and i choose this as I went with a black and white colour scheme and it does look amazing in the nzxt s340 case. I have had no issues with the board at all and everything has been perfect over the week ive been using it, I do have a couple of complaints and this is with the location of some of the connectors, to start with the usb 3 connector is in a terrible place, I use the msi gaming 5 board in my intel system and it is in a much better location on that board, the issue is only really a problem when using sli or crossfire and you are using thick gpu cards as I am using 2 560 ti,s in sli and the bottom card seems to push the connector down bending the plug but its not a major issue, the other issue is again when using dual gpu,s and wanting the use all 6 sata ports as the bottom card partially covers 2 of the sata connctions luckily I only use the 4 on the side of the board so wasn't a problem but will be for anyone wanting to use sli and all 6 sata ports, other than that the board is excellent and works fine even when overclocking my fx 6300 over 4.5ghz. I would recommend this board but unless you really want the white colour scheme I would also highly recommend the msi 970 gaming as it is slightly better laid out with all the sata ports on the side but for the price this is excellent and im sure it will be perfect for many years like all my msi boards. 02 February 2016
Rated 4 out of 5 by Not suitable for 8350 CPU This motherboard is fantastic! The BIOS is super simple and straight forward. A flaw I saw though is that in the On board check, it says that one of my fans are disabled but...it is not. Also, the MOBO cannot handle an 8 core CPU. My MOBO has reached up to 80 Degrees in simple Warcraft game play which is ridiculous. It may be better with a 6 core. 08 August 2015
