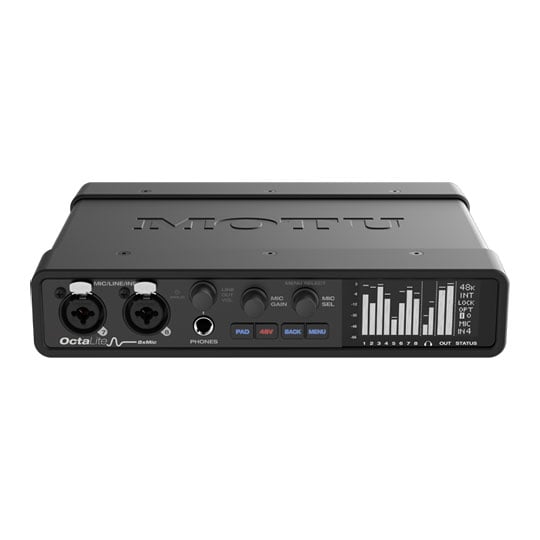

  • Thumbnail 1 : MOTU OctaLite USB Audio Interface & Optical Expander
  • Thumbnail 2 : MOTU OctaLite USB Audio Interface & Optical Expander

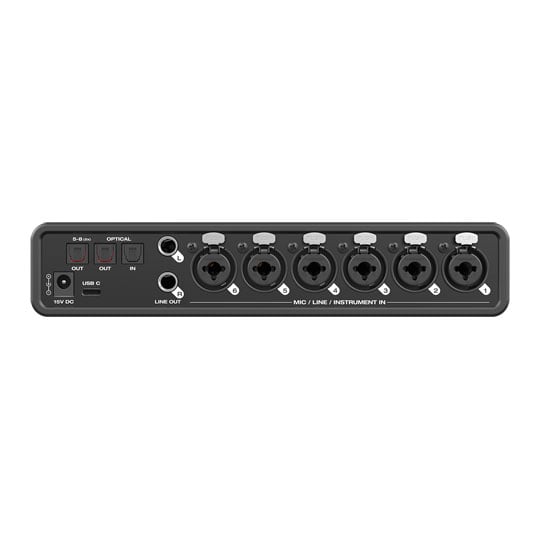

  • Thumbnail 3 : MOTU OctaLite USB Audio Interface & Optical Expander

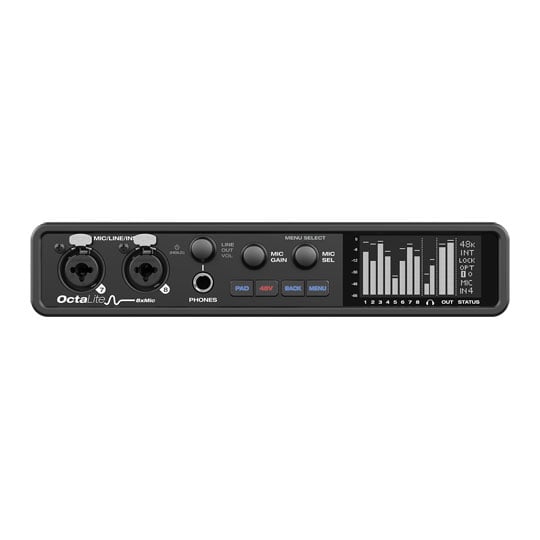

  • Thumbnail 4 : MOTU OctaLite USB Audio Interface & Optical Expander
New

MOTU OctaLite USB Audio Interface & Optical Expander

MOTU - OctaLite 16x12 USB Audio Interface and Optical Expander with Mixing, Effects, and 8 Ultra-Quiet Mic Preamps

Scan code: LN175758 Manufacturer code: OctaLite
£848.99
Free delivery on your entire basket
Item due on 24 October 2026
Due 24th Oct
Pay in 3 interest-free payments of £283.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £29.73 / month (APR 16.9%) for 36 months or 0% for 4 months
  • With a 10% deposit from just £21.21 / month (APR 15.9%)

Suggested Alternatives

USB Audio Interface & Optical Expander
MOTU - OctaLite

MOTU OctaLite

Best-in-class audio qualityThe MOTU OctaLite is a 16x12 USB audio interface and optical expander with mixing, effects, and eight pristine, ultra-quiet mic preamps in a compact, mobile half-rack unit. The OctaLite analog output is driven by renowned ESS Sabre32™ DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N. Equipped with Burr-Brown™ op-amps, the eight mic inputs deliver super-clean, ultra-quiet, neutral performance and +74 dB of preamp gain. Renowned USB audio drivers deliver rock-solid performance and industry-leading low latency.

Amazing Features • 8 mic/line/hi-Z guitar inputs in a half rack unit
• USB interface and optical expander operation
• On-board DSP, mixing and effects
• Universal connectivity
• Loopback and other advanced extras
• CueMix™ 5 console app (Mac/Win/iOS)

Eight Mic Inputs in a Half-Rack Unit

MOTU OctaLite

compact & powerfulAs an interface or mixer, the OctaLite provides eight mic/line/instrument inputs in a half rack form factor. Connect up to eight microphones, or any combination of mics, line level inputs, and guitars. The hi-Z quarter-inch jacks are perfect for DI guitar recording. Connect your speakers to balanced line outputs (L-R), along with headphones and 8-channel optical I/O. The optical ports alternatively support stereo TOSLink (optical S/PDIF). Operate the OctaLite as a USB audio interface, stand-alone mixer or 8-channel optical expander for another interface or mixer.

Superb Sound Quality & Performance

MOTU OctaLite

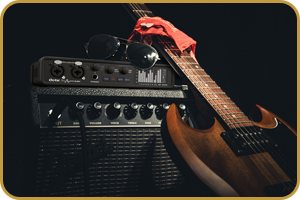

Built for studio and stageHoused in a compact, steel enclosure you can take anywhere, the OctaLite is equally well-suited for studio and stage, with or without a computer. Connect all your personal studio gear for state-of-the art computer-based recording and production, or take it to your next gig to mix live.

MOTU OctaLite

Ultra-low latencyWhen operating the OctaLite as a USB audio interface, optimized drivers for both Mac and PC deliver ultra-low latency performance with a round trip latency (RTL) of 2 ms (milliseconds) over USB (at 96 kHz with a 32-sample host buffer).

MOTU OctaLite

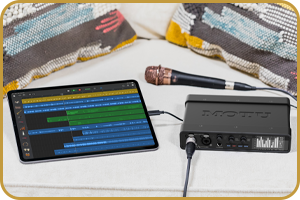

Studio-grade I/OThe OctaLite is USB audio class compliant, giving you plug-and-play compatibility with iPad® and other Apple® iOS devices. Record on-the-go, directly to your iPad, or play backing tracks during a gig, mixed with your live inputs with the OctaLite's built-in mixing. Control everything from the CueMix 5™ mixing app on your iPad or iPhone.

MOTU OctaLite

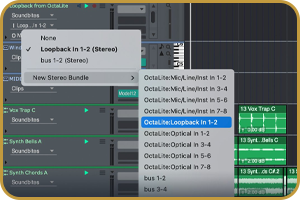

LoopbackThe OctaLite provides convenient loopback channels to your host computer or iOS device, so you can easily route computer output, along with a mix of live inputs from the OctaLite itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet. The OctaLite provides three virtual mix buses that you can use for alternate loopback mixes. Streaming and podcasting has never been easier and better-sounding!

MOTU OctaLite

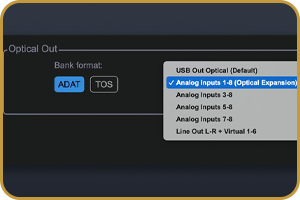

Optical ExpansionIn addition to USB audio interface operation, the OctaLite serves as the perfect optical expander for your UltraLite-mk5, 828, 16A or other audio interface. Add eight mic channels to your setup with a single optical cable. The mic input circuits in the OctaLite are identical to the UltraLite-mk5, ensuring uniformity across both units for all ten combined inputs. Setup is easy: just select the analog inputs as the source for the Optical Out bank, and you're good to go. There's even a 2nd extra optical ouput port to cover channels 5-8 when employing the 4-channel SMUX optical format at high sample rates (88.2 or 96 kHz).

MOTU OctaLite

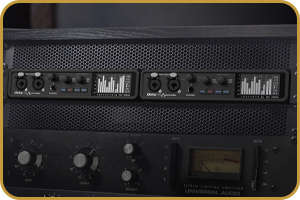

16 mic inputs in a single rack spaceMount two OctaLites side by side and you've got sixteen mic inputs in a single rack space. Great for your studio rack or a portable rack case for on-the-go recording!

The CueMix 5 app

MOTU OctaLite

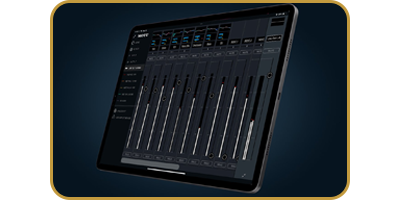

Monitor Mixing with EffectsCueMix 5 gives you simple, yet comprehensive graphic control over your OctaLite mix. For macOS, Windoww and iOS, CueMix 5 delivers intuitive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface for quick access to all mixing features, digitally controlled trims and other settings in your OctaLite. Create separate mixes for the rear-panel monitor (line) outputs, front-panel headphones and loopback channels.

Start Making Music Right Away

MOTU OctaLite

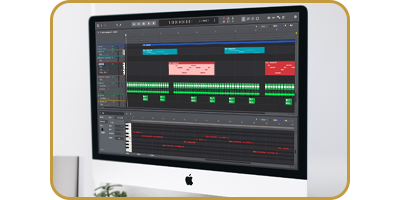

workstation softwareConnect the OctaLite to your Mac or PC and start laying down tracks with the included Performer Lite production software, plus hundreds of loops, one-shots and sounds from industry leaders MOTU, Big Fish Audio, Lucidsamples and Loopmasters.

Performer Lite

MOTU OctaLite

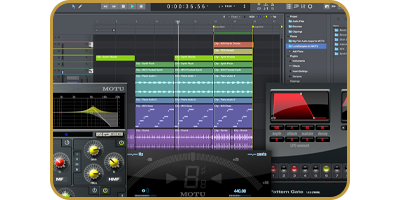

record, edit, mixPerformer Lite provides everything you need to record, edit, mix, process and master your own music tracks quickly and easily. Plug in your mic, guitar and MIDI keyboard and start tracking with over 100 virtual instruments, dozens of effects plug-ins, guitar FX processing and much more.

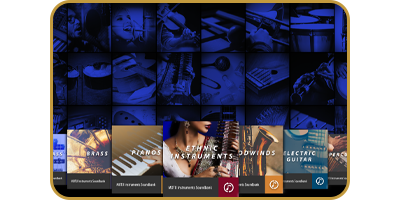

100+ Instruments

MOTU OctaLite

expand your creativityPerformer Lite includes over 100 virtual instruments, including acoustic and electric pianos, guitars, basses, drums, organs synths, orchestral instruments, choirs, world instruments and much more. Take your musical muse wherever it wants to go.

6 GB of Free Loops and Sample Packs

easy-to-usePerformer Lite includes 6 GB of free loops and sample packs from leading sample content providers to help you start making music right away. From Performer Lite's Content Browser, choose from dozens of musical styles, click to audition, then drag and drop in your projects timeline to build your track quick.

MOTU OctaLite

Big Fish AudioSince 1986, Big Fish Audio has consistently produced the highest quality sample libraries available. Over the years, their sounds have been featured in hundreds of charting songs and top film and television soundtracks.

MOTU OctaLite

LucidsamplesLucidsamples is a collective of experienced music producers and professional musicians that offers high quality samples and sample packs which are suitable for creating products in the most popular music genres. Their sounds are being used all over the world by many well known DJs, music producers and companies.

MOTU OctaLite

LoopmastersLoopmasters is the definitive "sample boutique." Based in Brighton, England, this label has been providing pristine audio libraries for more than a decade. Content has been expansive and evolving over the years, with hundreds upon hundreds of royalty-free packs to inspire amateurs and seasoned artists alike.

The Tech Spec

Features Specification
Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz

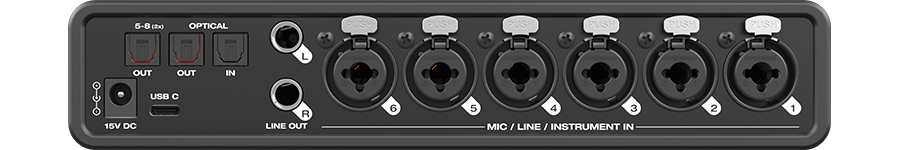

Mic/Line/Guitar Inputs 8 x XLR/TRS "combo" jacks
1 MΩ impedance on the line/instr inputs
Audio Performance 125 dB dynamic range on output
-129 dBu EIN on mic inputs
Digital I/O 1 bank (channels 1-8) of ADAT optical at 1x sample rates
1 bank (channels 5-8) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
Computer I/O 1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable)
Total Audio I/O 16 in / 12 out (28 total) at 1x sample rates
12 in / 12 out (22 total) at 2x sample rates
8 in / 4 out (12 total) at 4x sample rates
Headphone 1 x 1/4" TRS stereo phone
Phantom Power 8 x individual +48V

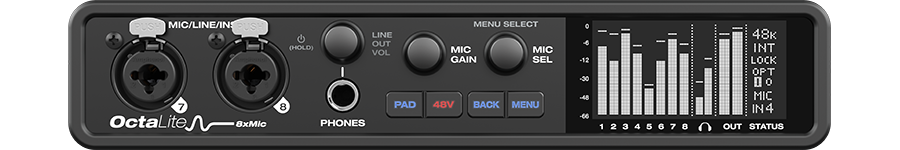

Front Panel 2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer • phone/monitor vol
1 x potentiometer • mic/instr input gain
1 x potentiometer • mic channel select
4 x switches • 48V, pad, back, menu
1x high-resolution white OLED display for metering/status
Power Multi-blade international 15V DC power adapter
2.0A max • tip positive
Supports 100-240V power sources (US/Japan, EU, UK, Australia)
Mac System Requirements Apple silicon and Intel processors supported
8+ GB RAM recommended for optimal performance
macOS 12 or later (with driver or USB class compliant)
Available USB port
Windows System Requirements x86-64 (Intel, AMD) & ARM (Snapdragon) PCs supported
8+ GB RAM recommended for optimal performance
Windows 11 23H2 or later (x86-64/ARM64)
Available USB port
Class-Compliant Support USB audio class compliant for plug-and-play operation on Mac or iOS (no driver required)
Included Software CueMix 5
MOTU Performer Lite
Ableton Live Lite
6GB of loops and sounds from MOTU, Big Fish Audio, LucidSamples, and LoopCloud
Dimensions (width x depth x height, enclosure only) 8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
Weight 3.0 lbs / 1.36 kg
Specifications
Computer Interface Type USB 2.0 Type-C
Connections (Input)
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x S/PDIF Optical
  • 8 x XLR / Jack Combo
Mic Preamps (Max) 8
Instrument Inputs (Max) 8
Phantom Power Yes
Sample Rate (Max)
  • 176.4 kHz
  • 192 kHz
  • 44.1 kHz
  • 48 kHz
  • 88.2 kHz
  • 96 kHz
Bit Resolution
iPad Compatible Yes
Connections (Output)
  • 2 x S/PDIF Optical
  • 2 x Stereo TRS 1/4" Monitor Outputs
Dimensions (mm) 220 x 45 x 175 WxHxD
DSP Processing No
