Scan code: LN107484 Manufacturer code: MOD-SUBH-03

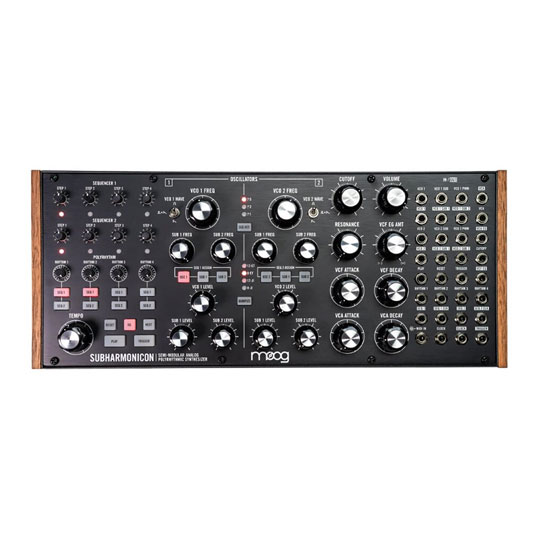

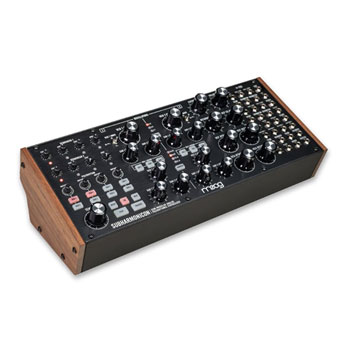

MOOG Subharmonicon

MOOG Subharmonicon Subharmonic semi-modular synthesizer

Thumbnail 1 : MOOG Subharmonicon Thumbnail 2 : MOOG Subharmonicon Thumbnail 3 : MOOG Subharmonicon Thumbnail 4 : MOOG Subharmonicon
Scan code: LN107484 Manufacturer code: MOD-SUBH-03
£733.99Item due on 20 November 2020
Due 20th Nov
FREE DELIVERY ON YOUR ENTIRE BASKET
From £25.08 / month (APR 14.9%)
Monthly Payment: £65.90
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £733.99
Total inc. interest: £790.71
Monthly Payment: £35.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £733.99
Total inc. interest: £845.52
Monthly Payment: £25.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £733.99
Total inc. interest: £902.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Explore Moog’s New Sonic Playground...
Moog - 'Subharmonicon'

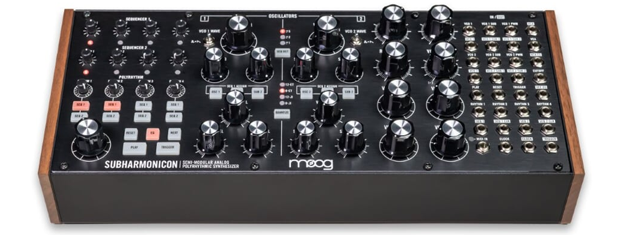

Moog Subharmonicon

semi-modular analogue
polyrhythmic synthesizer
Meet the Subharmonicon! Moog’s latest innovation is a semi-modular Polyrhythmic Analogue Synthesizer and the most recent addition to Moog’s famous semi-modular family. Featuring 2x VCO’s, 4x Subharmonic Generators, 2x sequencers and 4x Rhythm Generators, the Subharmonicon delivers a rich harmonic kaleidoscope that divides into itself until everything that is up becomes down!

Since the original's inception in 2018 as an ultra-limited edition build-it-yourself kit (limited to 120 units worldwide!), the Subharmonicon has been one of the most requested public releases from the Moog synthesizer community.

At a glance • Updated design of the highly sought after 2018 Moogfest Engineering Workshop Instrument.
• Use as a standalone synth with included +12V DC power supply or simply remove the front panel to install into any Eurorack system.
• Two 4-step sequencers capable of triggering polyrhythmic patterns
• 6-tone chord generation via two oscillators and four subharmonic oscillators
• 32 patch points with 3.5mm MIDI Input (MIDI Type A adapter included for converting DIN to 3.5mm)

x2Analogue VCOs

x4Subharmonic Oscillators

x4Rhythm Generators

2 Analogue VCOs - 4 Subharmonic Oscillators

back

Onboard quantizationMoog’s Subharmonicon is a semi-modular polyrhythmic analogue synth that utilises a 6-tone sound engine and multi-layered sequencers to delve deep into an exciting realm of subharmonics, polyrhythms and the unique relationships between them.

The Subharmonicon’s signature sound begins with two analogue VCOs and four Subharmonic Oscillators for a total of six hugely powerful sound sources. Each subharmonic tone is cleverly mathematically derived from one of the two main VCOs, gifting the resulting chord shapes a wonderfully coherent nature. Integrated quantisation lets you dial in perfect intervals each time with selections for numerous tuning systems. Opt for the contemporary ‘Equal Temperament’ settings, the sparkling intervals of ‘Just Intonation’, or the uninhibited freedom of no quantisation at all.

Dual 4-Step Sequencers

4K Recording

32-point 3.5mm patchbay Animating Subharmonicon’s distinctive chord shapes is done through a polyrhythmic pair of 4-Step Sequencers. Each sequencer is clocked by any or all of four Rhythm Generators that output mathematical divisions of the master tempo. Layer multiple Rhythm Generators on top of each other to create complex polyrhythms and discover inspiring new patterns and styles. Delve into Subharmonicon’s dual Envelope Generators, Moog Ladder Filter, and analogue VCA to call up dynamic articulations ranging from lush pads and blurred edges to percussive plosives and ritualistic rhythms.

Although no patching is required to start creating, exploring Subharmonicon’s modular patchbay unlocks worlds of possibilities as you make novel connections and plug into new ideas. The 32-point 3.5mm patchbay can be patched into itself, expanding Subharmonicon’s onboard capabilities, or interfaced with Mother-32, DFAM, and other external Eurorack-compatible gear.

'Music as Living Matter'

composed entirely on SubharmoniconElectronic music pioneer Suzanne Ciani and multidisciplinary visual artist Scott Kiernan invite you to reimagine conventional ideas of music, sound, and expression through a delicate balance of mystery and order in this experimental piece composed entirely with the new Moog Subharmonicon synthesizer and analog video synthesis techniques.

The film’s visuals and narration offer a deeper understanding of the instrument, drawing inspiration from the language and illustrations found in Bob Moog’s old copy of Joseph Schillinger’s book “The Mathematical Basis of the Arts.” Engage your imagination as the rhythmic ping-ponging of Ciani’s score meets Kiernan’s depiction of the evolving shapes, forms, and textures Subharmonicon’s sound creates.

The Tech Spec

Analogue Sound Engine
Sources VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
Filter Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave)
Envelopes VCA EG (Attack, Decay); VCF EG (Attack, Decay)
Analogue Sequencers (x2)
Steps 4 Steps per Sequencer, selectable Quantization
Clock Driven by any and all of the Rhythm Generators
Rhythm Generators (x4)
Rhythm Derived by dividing the Tempo by an integer value (1-16)
Clock 20 BPM to 3,000 BPM (Beats per Minute; 1 Pulse per Quarter-note), MIDI Clock, EXT CLOCK
Patchbay
Jacks 32 x 3.5mm
Inputs 17 Input Jacks
Outputs 15 Output Jacks
MIDI 3.5mm MIDI Input (Type A dongle included)

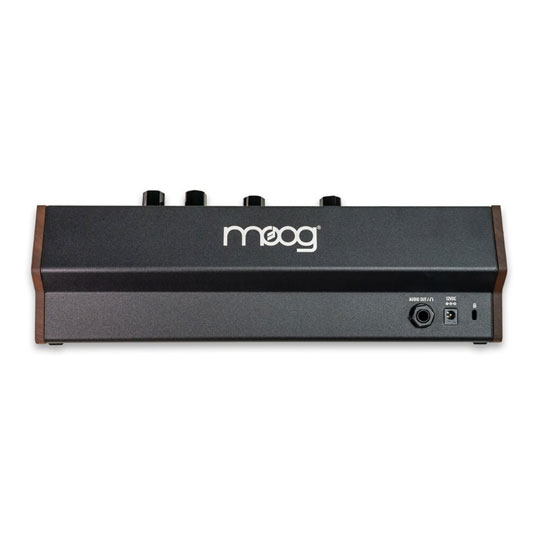

Rear Panel
Audio 1⁄4” TRS Headphone or 1⁄4” TS Instrument
Power Power supply connection
Security Kensington lock slot
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN107484
Model Number MOD-SUBH-03
GTIN 040232358890
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
30 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Moog
