Mo-Sys - 'StarTracker Max'

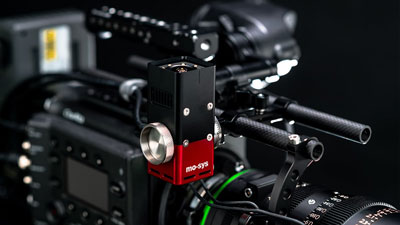

TAKE YOUR PRODUCTION TO THE MAXMo-Sys StarTracker Max is a cutting-edge optical camera tracking system designed to elevate virtual production and augmented reality experiences to the highest level of precision and reliability. Building on 25 years of pioneering marker-based tracking technology, StarTracker Max introduces a lightweight, miniaturised design with enhanced hardware and algorithms, delivering Mo-Sys’ most accurate tracking solution to date. It features real-time 6-axis tracking with lens zoom, focus, and iris control, ensuring seamless integration of photo-realistic 3D virtual graphics with the real world, delivering an immersive mixed reality experience. The system boasts zero drift, no daily recalibration, fast star map discovery, and a user-friendly web interface.
Maximum Precision

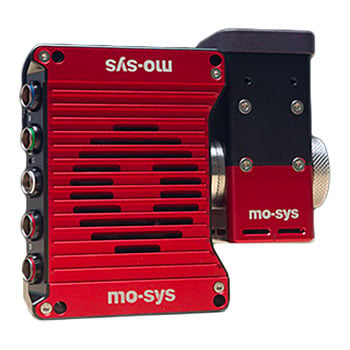

Next generation high-resolution trackingMo-Sys invented 'simple-to-use' marker-based optical camera tracking for Virtual Production. The resulting product, StarTracker, became the world's best-selling absolute tracking solution for broadcast and cinematic. StarTracker Max features redesigned and miniaturized hardware which leverages Mo-Sys improved algorithm to produce Mo-Sys' most accurate tacking solution to date.

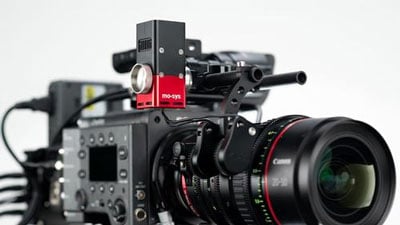

Set-and-forget professional trackingStarTracker Max auto alignment technology simplifies set-up and ensures ultra-precise studio calibration. Once set-up, StarTracker Max is fully autonomous with no need for costly, time-consuming daily re-calibration. With rapid star map discovery, a new user-friendly interface (web browser-based) and simple D-Tap power inlet, StarTracker Max sets a new standard for set-and-forget professional tracking.
Superior tracking capabilitiesStarTracker Max delivers 6-axis tracking with lens zoom and focus for precision blending of photo realistic 3D virtual graphics with the real-world scenes and objects. Its 130-degree field of view sensor enables tracking even on a camera pointing straight down, with zero drift accumulation and ultra-fast star map discovery.

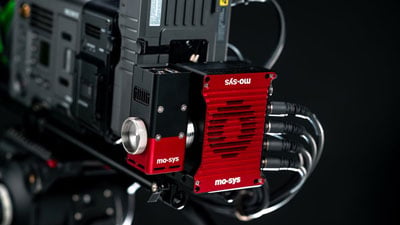

Unrivalled pedigreeIt's a StarTracker! Designed and manufactured in the UK to the same exacting standards as all of our world-leading Virtual Production solutions, StarTracker Max marks the beginning of an exciting new platform, building on the trusted current StarTracker technology and delivering even greater tracking accuracy coupled with new unique capabilities to be announced in due course.

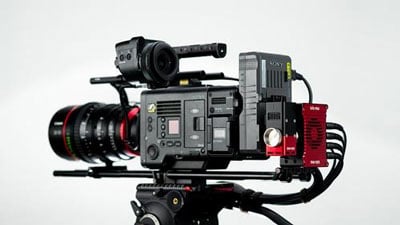

Maximum versatilityStarTracker Max is optimized for use in studio spaces up to 100 x 100m with no explicit upper limit, and ceiling heights >16m with appropriately sized and spaced stars. Immune to occlusion and blind spotting often experienced by 'outside-in' tracking systems, StarTracker Max provides absolute 'inside-out' tracking. Furthermore, when powered from the camera or battery (typical power draw only 20 W), and combined with the Mo-Sys radio allows for untethered camera setups.

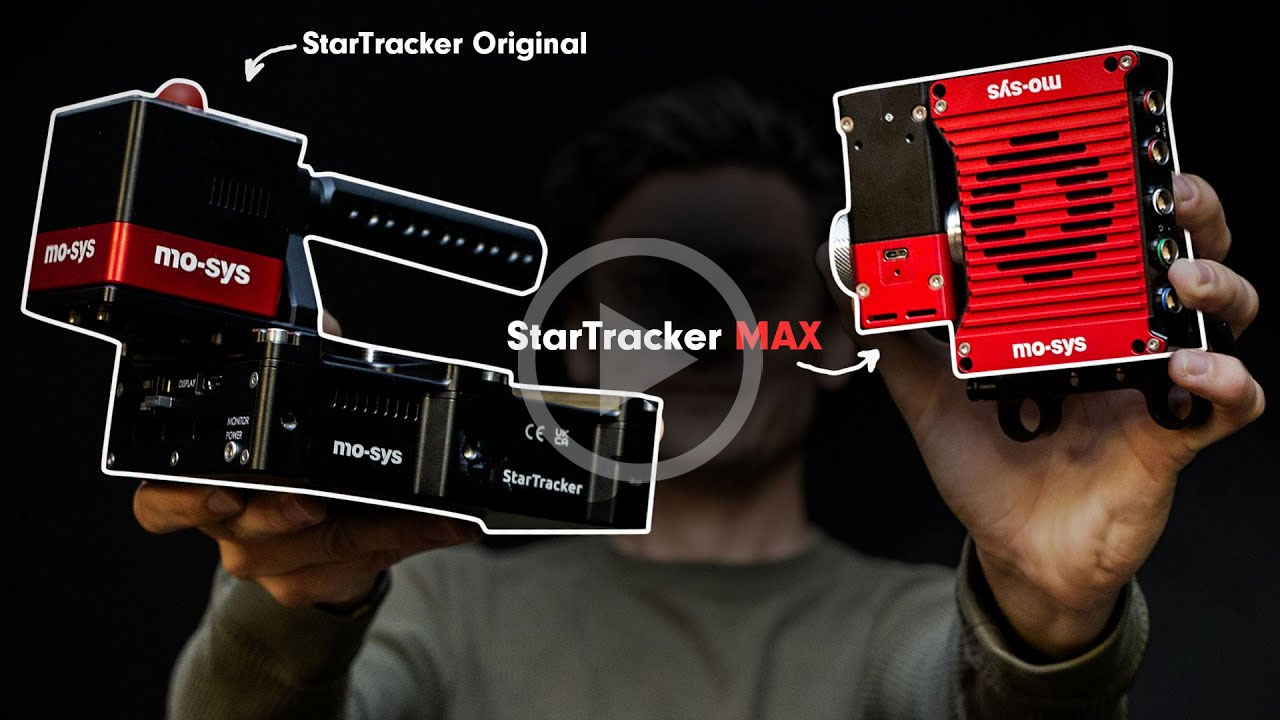

StarTracker Vs StarTracker MAX
Technical Specifications
| Features | Specification | Max Ceiling Height | 16+m |
|---|---|
| Max Studio Space | 100 x 100 m (no explicit limit) |
| Tracking Stars Configuration | Ceiling, wall or floor mounted retro-reflective stickers or digital LED wall markers |
| Sensor Unit Dimensions | 4 x 4 x 9 cm |
| Processor Unit Dimensions | 11 x 8 x 5 cm |
| Weight (Sensor/Processor) | 250g / 450g |
