Scan code: LN124454 Manufacturer code: MR80X

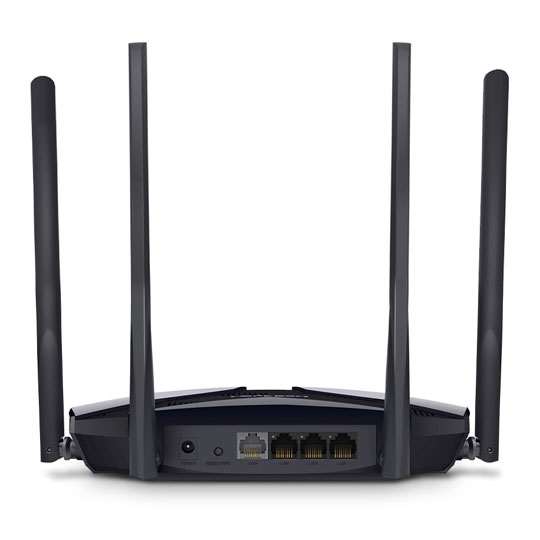

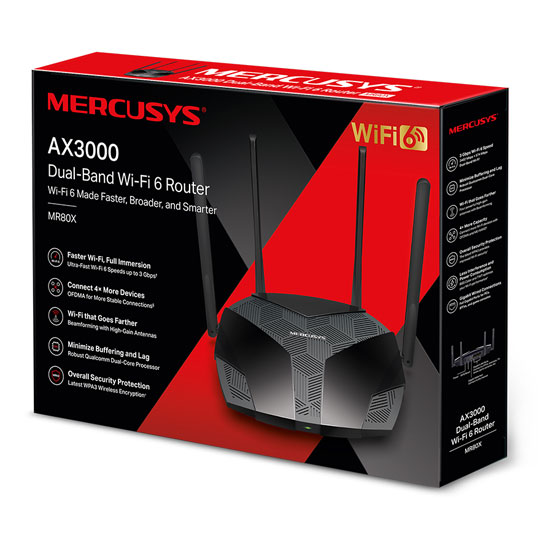

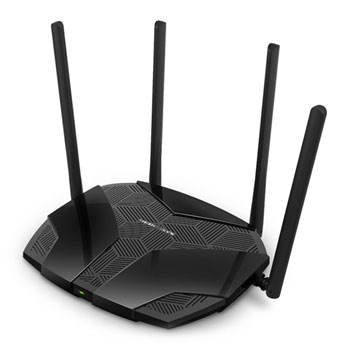

Mercusys MR80X WiFi 6 Dual-Band Gigabit Router

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router, 4x Antennas, Dual-Band (574+2402Mbps), GbE, OFDMA, MU-MIMO, 802.11ax

Thumbnail 1 : Mercusys MR80X WiFi 6 Dual-Band Gigabit Router Thumbnail 2 : Mercusys MR80X WiFi 6 Dual-Band Gigabit Router Thumbnail 3 : Mercusys MR80X WiFi 6 Dual-Band Gigabit Router Thumbnail 4 : Mercusys MR80X WiFi 6 Dual-Band Gigabit Router
Scan code: LN124454 Manufacturer code: MR80X
£94.49Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Gigabit WiFi Connectivity, Always Up-to-Date

Doubling the bandwidth with 160 MHz channels,1 MR80X unlocks the limits of the previous channel width and provides next-level speeds for your devices. With WiFi 6 speeds up to 3 Gbps,2 finish large-file downloads in minutes and experience stunning 4K streaming without lag.


Connect 4× More Devices, All Simultaneously

Streaming or gaming on multiple devices brings more fun without dragging down performance. MR80X supports OFDMA and MU-MIMO1 to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments.


Reduce the Interference from Your Neighbours WiFi

Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbours. MR80X supports BSS Colouring to mark the data frames from different APs. This helps minimize the signal interference from your neighbours to improve transmission efficiency.


Eco-Friendly Power Saving

Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices' battery life.


More Targeted Signals that Penetrate Walls

Four external high-gain antennas armed with integrated signal amplifiers provide strong WiFi signals that reach farther. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.


The Latest WPA3 Protects Your Personal Network

The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.


Assigns Devices to the Best Band Automatically

Smart Connect allows each of MR80X's wireless bands to use the same wireless settings. MR80X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.


Powerful Qualcomm Chipset Minimizes Buffering and Lag

Powered by a highly integrated Qualcomm WiFi 6 chipset that combines a 64-bit dual-core CPU and an advanced 12-thread programmable network processor, MR80X enables stable connections for up to 256 devices.5 Your network can now handle massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time.


Parental Controls

Establish appropriate policies to protect children for responsible, safe internet access.


Guest Network

Allows guests to join your WiFi network-all while protecting your privacy-making sharing easy and secure.


Quality of Service

Prioritizes devices you select to perform better.


Rigorous Testing for High-Quality Products

UES Stability Test = 1500 hours, Working in a device-rich environment.
Power ON/OFF Test = 10,000 test cycles, Cumulative number over 3 scenarios.
Extreme Environment Test = 7200 hours, Devices work continuously in extreme environments.
Vibration Test = 100 cycles, Cumulative testing with multiple devices for product endurance.
Drop Test = 30 cycles, Dropping from 6 surfaces 80 cm high to a concrete floor.
Memory Stress Test = 900,000 cycles, Consecutive memory read/write tests.

Features


• Optimal WIFI 6 Speeds - Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streaming, and downloading, all at the same time.
• More Devices, More Fun - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
• WiFi That Goes Farther - 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner.
• Overall Security Protection - The latest WPA3 provides improved WiFi security.
• Gigabit Wired Connections - Make full use of your internet access and transfer data at dizzying speeds for peak performance.
• Eco-Friendly Power Saving - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions.
• Less WIFI Interference - Minimizes the interference from neighbouring signals to improve transmission efficiency with BSS colouring .
• Smart Connect - Intelligently chooses the best available band for each device.

Specifications
Networking, Connectivity & Ports
Model MR80X
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Existing WiFi Network
Network Connectivity
  • 10/100/1000
  • Wireless LAN
Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 3
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 3000 Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <20dBm(2.4GHz), <23dBm(5GHz), < 30dBm(5GHz) (band3)
Antenna 4x External
Core Features
Features Guest Network
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
  • Mac OS
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols
  • WPA-PSK
  • WPA2-PSK
  • WPA3
Firewall/NAT No
Management
  • DHCP
  • DMZ
  • Port Forwarding
  • Port Trigger
  • UPnP
VPN Support
Physical Specifications
Dimensions 208.8 × 41.7 x 171.6 mm mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN124454
Model Number MR80X
GTIN 6957939000431
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
