Scan code: LN114958 Manufacturer code: MR70X

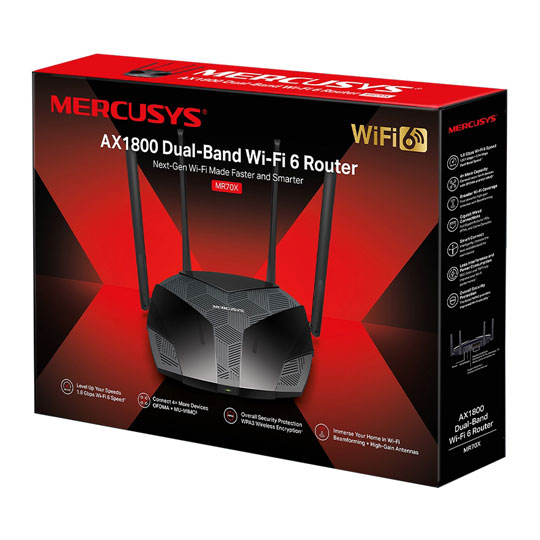

Mercusys MR70X WiFi 6 Dual-Band Gigabit Router

Mercusys MR70X AX1800 Dual-Band Wi-Fi 6 Router, 4x Antennas, Dual-Band (574+1201Mbps), GbE, OFDMA, MU-MIMO, 802.11ax

Thumbnail 1 : Mercusys MR70X WiFi 6 Dual-Band Gigabit Router Thumbnail 2 : Mercusys MR70X WiFi 6 Dual-Band Gigabit Router Thumbnail 3 : Mercusys MR70X WiFi 6 Dual-Band Gigabit Router Thumbnail 4 : Mercusys MR70X WiFi 6 Dual-Band Gigabit Router
Scan code: LN114958 Manufacturer code: MR70X
£64.99
Order now and get it tomorrow, Tue 26th Oct
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

The Innovation of WiFi

The increasing number of wireless and smart home devices tests the limits of previous WiFi standards. The latest WiFi 6 standard implements advanced technology designed to boost the average data throughput per user in dense user environments, deliver more simultaneous connections, extend WiFi range, and maintain reliable data transmissions, satisfying the demand for a high-performance wireless experience.


Level Up Your Speeds with WiFi 6

Enjoy unrivaled levels of speed with next-gen WiFi 6. By combining 1024-QAM and a long OFDM symbol, MR70X delivers total speeds of up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Game online, watch 4K videos and crank up everything to the highest settings without lag.


4× More Capacity, More Streams, More Devices, More Fun

WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, MR70X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of your whole network under the same conditions.


Immerse Your Home in WiFi

Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.


Overall Security Protection

The latest security standard, WPA3, provides improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.


Protection Against Brute-Force Attacks

Prevents password-guessing attacks and delivers robust protections even when you are using a weak password


Your Data Is Safer

Forward Secrecy support prevents any captured data from being snooped even if a cracker compromises a session’s secret keys


Advanced Encryption Security

128-Bit Encryption, which is considered to be logically unbreakable, creates an active defense against security threats and intruders


Less WiFi Interference

BSS Color marks the data frames from different APs which helps minimize the signal interference from your neighbors to improve transmission efficiency.


Eco-Friendly, Power Saving

Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life.


Smart Connect Combines Two Bands in One

Equipped with next-gen WiFi 6, both 5 GHz and 2.4 GHz are upgraded to the latest generation. Smart Connect combines the 2.4 GHz and 5 GHz bands into a single WiFi SSID and helps your devices intelligently choose the best available band that has a stronger signal and faster speed. This keeps your devices always running optimally when you walk around your home.


Abundant Features for Any Needs

Parental Controls: Establish appropriate policies to protect your family with responsible, safe internet access
Guest Network: Provides a separate network for guests to ensure your security and privacy
Quality of Service: Prioritizes devices you select to perform better
IPTV Support: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
IPv6 Support: Allows you to enjoy IPv6 services provided by your ISP and lets you visit IPv6 websites
VPN Support: Supports OpenVPN and PPTP to create a secure VPN connection for remote access

Features


Next-Gen WiFi 6 Speeds: Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
4× More Capacity: OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
Broader, Stronger Coverage: – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Overall Security Protection: The latest WPA3 provides improved WiFi security
Gigabit Wired Connections: Make full use of your internet access and transfer data at dizzying speeds for peak performance
Eco-Friendly Power Saving: Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
Less WiFi Interference: Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
Smart Connect: Intelligently chooses the best available band for each device
Access Point Mode: Extends a wired network and makes it wireless

Specifications
Networking, Connectivity & Ports
Model MR70X
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Existing WiFi Network
Network Connectivity
  • 10/100/1000
  • Wireless LAN

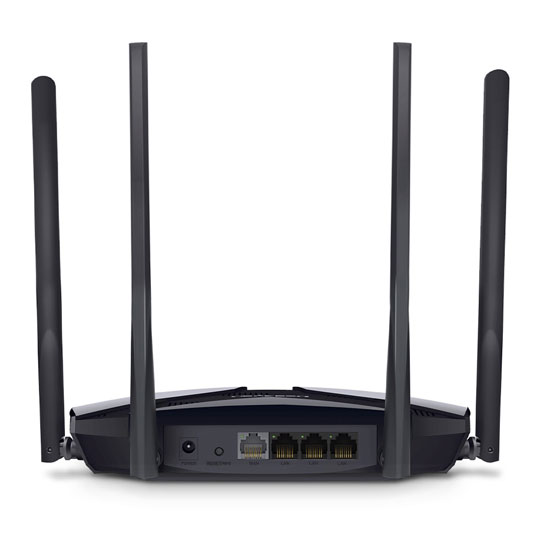

Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 3
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <20dBm(2.4GHz), <23dBm(5GHz)
Antenna 4x External
Core Features
Features Guest Network
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
  • Mac OS
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols
  • WPA-PSK
  • WPA2-PSK
  • WPA3
Firewall/NAT No
Management
  • DHCP
  • DMZ
  • Port Forwarding
  • Port Trigger
  • UPnP
VPN Support
Physical Specifications
Dimensions 208.8 × 41.7 x 171.6 mm mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN114958
Model Number MR70X
GTIN 6957939000578
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
