Scan code: LN137058 Manufacturer code: A010-001-01

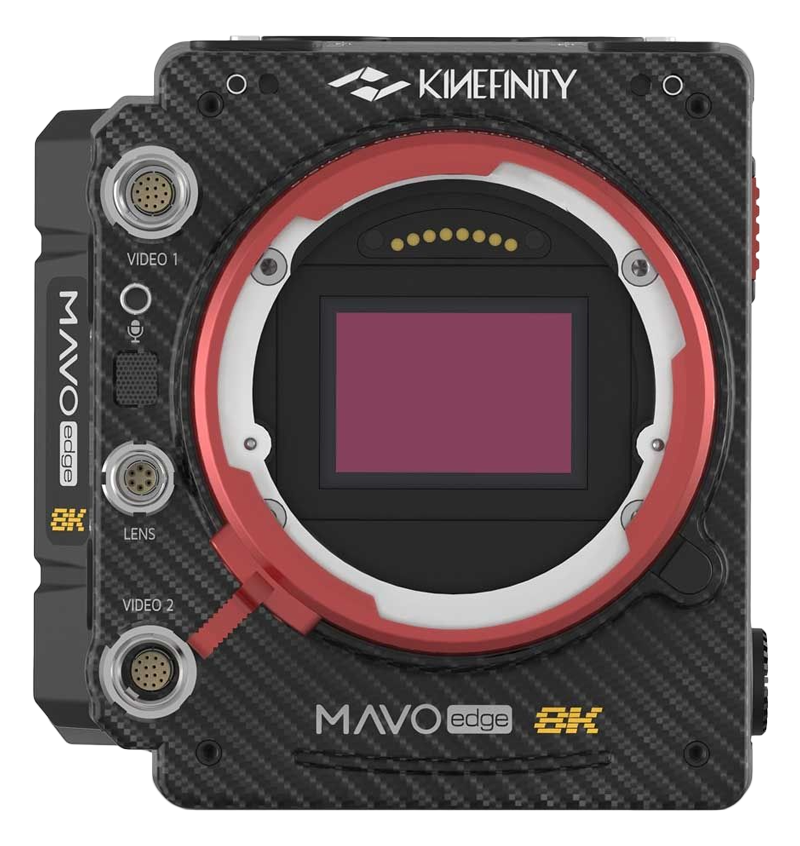

MAVO Edge 8K Camera

MAVO Edge 8K Camera, 8K 70p, Dual NVME SSD slots, Internal e-ND filter, KineMOUNT

Thumbnail 1 : MAVO Edge 8K Camera Thumbnail 2 : MAVO Edge 8K Camera Thumbnail 3 : MAVO Edge 8K Camera Thumbnail 4 : MAVO Edge 8K Camera
Scan code: LN137058 Manufacturer code: A010-001-01
£11,998.99Item currently awaiting an ETA
Pre order
FREE DELIVERY ON YOUR ENTIRE BASKET
From £338.32 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £1,087.08
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £11,998.99
Total inc. interest: £13,044.85
Monthly Payment: £585.89
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £11,998.99
Total inc. interest: £14,061.25
Monthly Payment: £420.18
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £11,998.99
Total inc. interest: £15,126.16
Monthly Payment: £338.32
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £11,998.99
Total inc. interest: £16,239.23
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £318.85 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Kinefinity - 'MAVO Edge 8K Camera'

Kinefinity MAVO Edge 8K Camera

Whole-new MAVO Edge CameraIntroducing the MAVO Edge 8K, a revolutionary large-format cine camera that sets a new standard in imaging technology. Featuring a sleek carbon fibre body, this cutting-edge camera is designed to deliver exceptional performance. The MAVO Edge 8K features a remarkable 8K 70P CMOS imaging sensor along with an advanced image processing engine, propelling the Kinefinity camera system to unprecedented heights. Equipped with internal motorized full-spectrum e-ND, industry-standard ports, and dual SSD media slots, this compact and lightweight powerhouse seamlessly integrates versatility and convenience. Kinefinity also introduces Apple ProRes4444/XQ up to 8K as an in-camera codec, streamlining the workflow for enhanced efficiency. Get ready to explore the limitless possibilities of cinematography with the MAVO Edge 8K.

Kinefinity MAVO Edge 8K Test Video

video thumbnail showcasing the key features of the kinefinity mavo edge 8k

Stunning 8K 70P Imaging Sensor

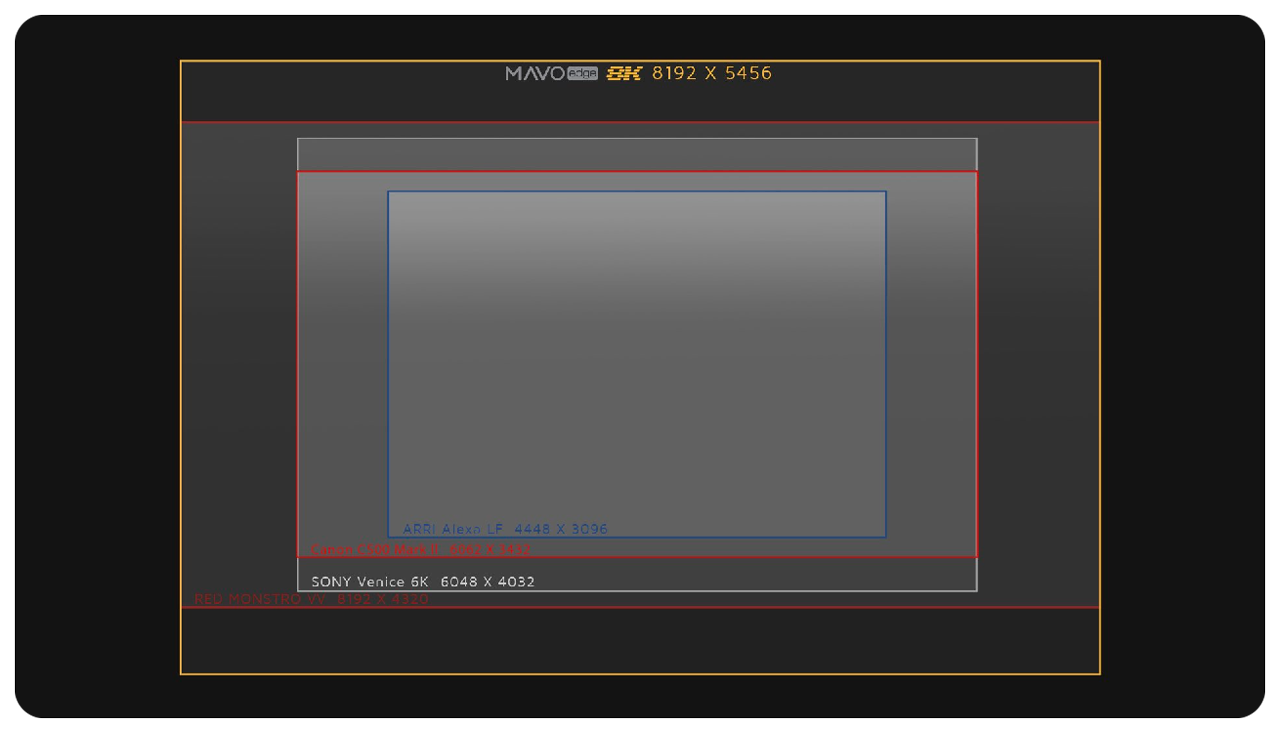

chart comparing sensor sizes highlighting the kinefinity mavo edge 8k

45 million pixelsThe new 8K imaging sensor on the MAVO Edge is an amazing canvas with 45 million pixels on a 36x24mm full-frame CMOS sensor featuring 640/2560 dual native ISO, 8K Wide up to 70fps and latitude up to 14+ stops. Even at open gate 3:2 , surprisingly this beast can still deliver a gorgeous image of 45 million pixels at up to 45 frames per second. All of these features allow cinematographers to create without boundaries, no matter for feature movies, production with VFX, high-end TV commercial and series, even wild-life documentaries. Not just getting highest resolution for motion pictures, MAVO Edge ensures natural color, pleasing skin tones, low noise, high dynamic range and stunning details in organic and delicate way, cinematically.

In-Camera 8K ProRes4444

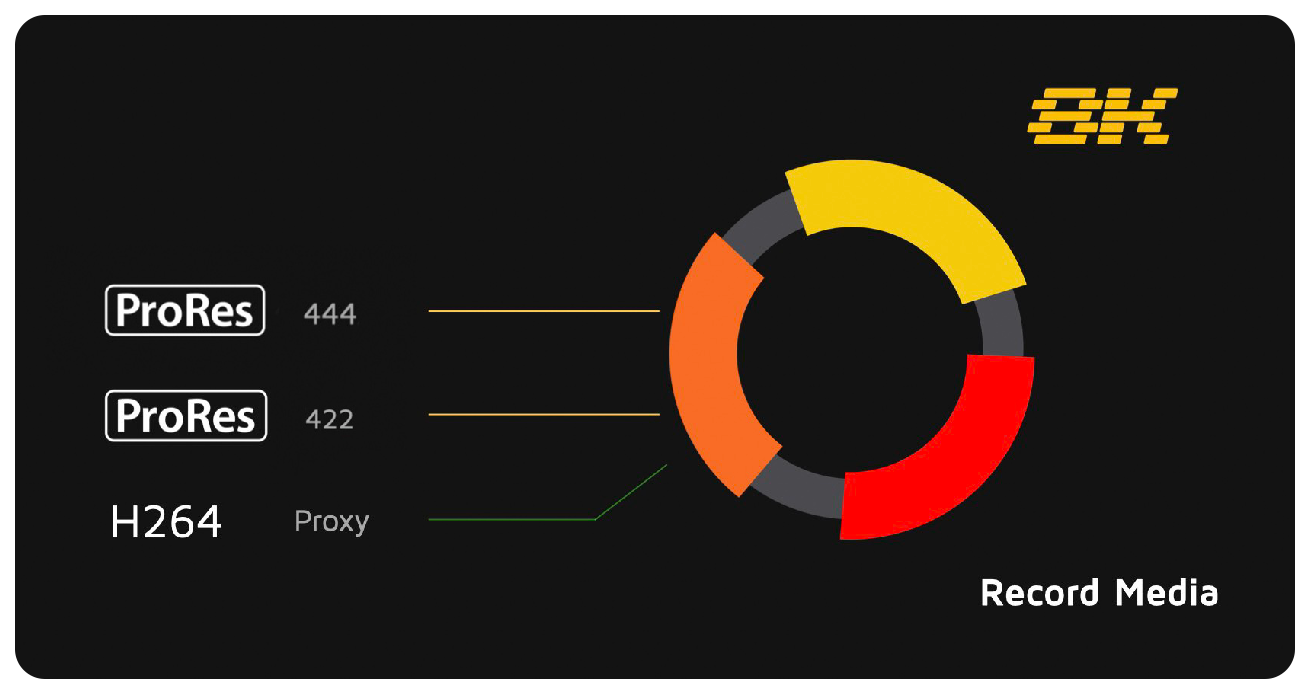

chart showing available recording formats on the kinefinity mavo edge 8k

8K ProRes4444 encoding and storageMAVO Edge can directly record Apple’s ProRes4444/XQ codec which has been highly expected by the video industry. From the capture of its 8K CMOS image over the delicate colour processing to the 8K ProRes4444 encoding and storage, these complex processes and the ultra-high bandwidth bitrate processing all happen within the compact MAVO Edge body. Aside from this, MAVO Edge also supports in-camera ProRes4444/XQ, ProRes422HQ, and H264 proxy. Recognized by Hollywood’s filmmaking industry, ProRes is a universal intermediate codec led by Apple Inc., delivers the flexibility of video with the incredible performance of ProRes in a format ideal for high-dynamic-range (HDR) content creation. For now, ProRes can be edited and graded in Apple Final Cut Pro X, Assimilate SCRATCH, Filmlight Baselight and so on.

Integration, Convenient to Use

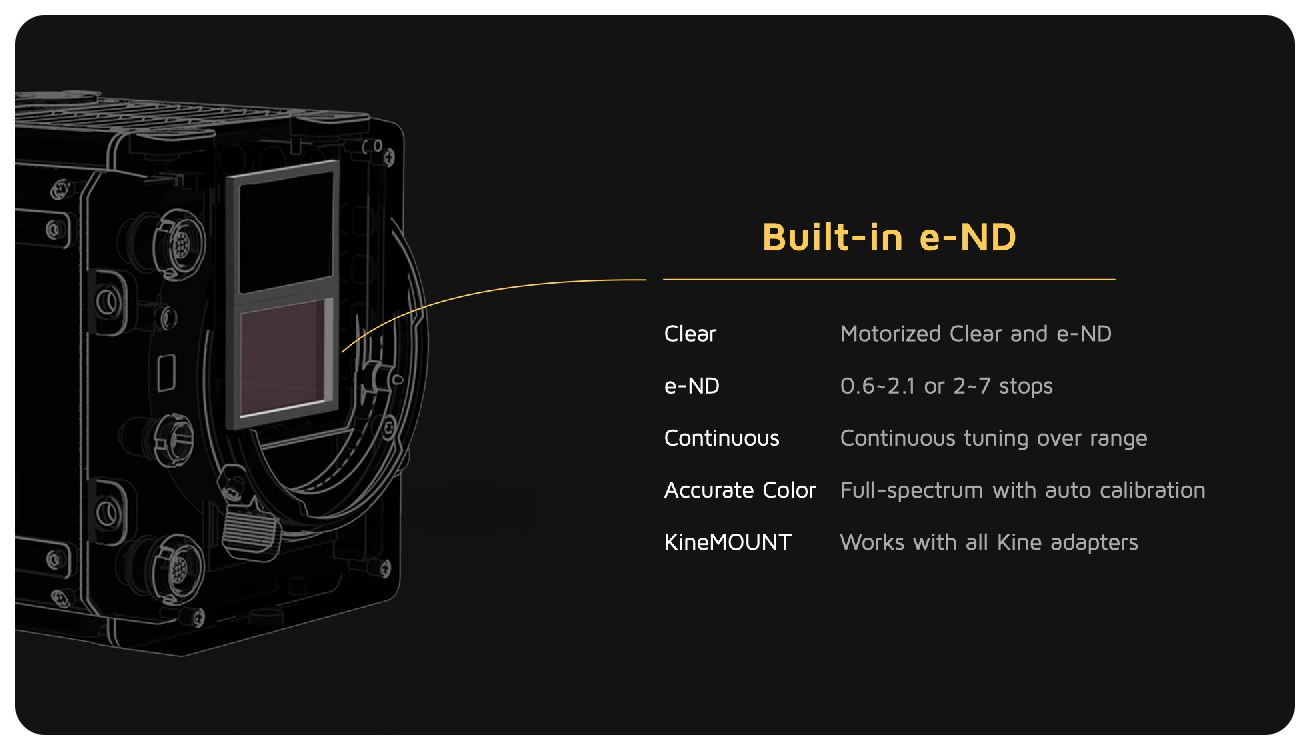

breakdown of the built-in e-nd for the kinefinity mavo edge 8k

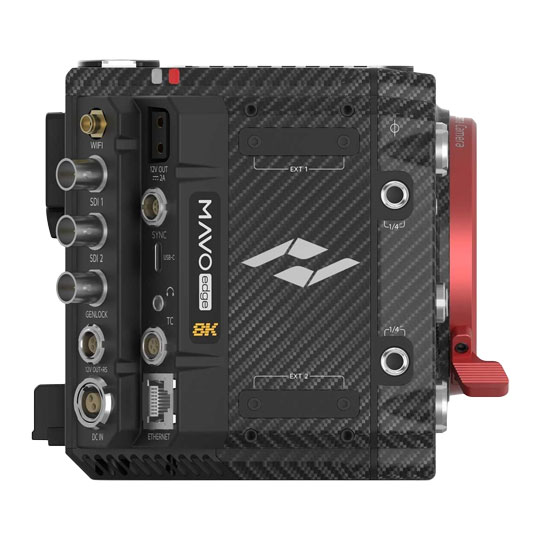

carbon fibre bodyThe whole-new integrated carbon fibre body has incorporated the full-spectrum e-ND system, dual SSD slots with blazing-fast NVMe M.2-based KineMAG Nano, comprehensive networking and creative power solution. MAVO Edge integrated the functions of KineBACK-W into the camera body with numerous professional ports: dual XLR ports for Phantom-powered 48V MIC, dual 1.5G/3G-SDI monitoring outputs with metadata and audio embedded, time code input and output, SYNC, DC Power output, innovative hybrid battery plate with D-Tap port, and 12V RS port and Lens port (12V) to power the third-party accessories like wireless video transmitter and wireless lens motor directly.

Specifications
Megapixel
Lens Mount KineMOUNT
Sensor Size Full Frame
Sensor Type 8K 3:2 Full Frame CMOS Imaging Sensor
Video Resolution 8192x5288
Max Photo Resolution
Framerate
  • 2
  • 286
File Format
  • ProRes 422HQ
  • ProRes 4444
  • ProRes 4444XQ
Input/Output
  • 3.5mm Jack
  • RJ45
  • SDI Out
  • USB-C
  • XLR
Dynamic Range
Aspect Ratio
Storage Internal SSD
Built-in Display No
Weight 1500 g
Dimensions 106 x 124 x 109 WxHxD
Additional Information
Scan Code LN137058
Model Number A010-001-01
GTIN 00
