Manfrotto 504X Video Head + Twin Leg Tripod
Manfrotto Professional Aluminium Twin Leg Tripod with 504X Fluid Video Head and Middle Spreader
Email me when the availability or price changes
Manfrotto - '504X Fluid Video Head
with Aluminiun Twin leg Tripod'

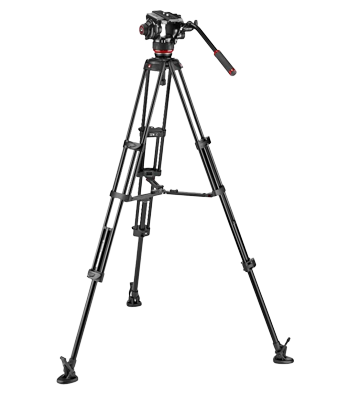

Fluid Video Head & Twin Leg TripodThis video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMA aluminium twin leg with middle spreader tripod.
The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment. The head attaches to the tripod via a dedicated 75mm half ball.
The MVTTWINMA aluminium twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminium casting 100mm bowl and it comes with an aluminium adapter that converts the bowl into a 75mm.
The tripod has mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.
Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
Amazing Features
• Fluid video head with 4-step counterbalance system up to 6.5 kg
• Maximum versatility thanks to flat base
• Aluminium twin leg tripod with 2 risers
• Side lock plate & two 3/8''easy link connectors for accessories
• Adjustable middle spreader for extra stability and versatility
• Included Padded Carry bag
The Tech Spec
| Features | Specification | Weight | 5.6 kg |
|---|---|
| Top Attachment | 1-4" screw, 3/8" screw |
| Ball Flat | Flat |
| Safety Payload Weight | 12 kg |
| Counterbalance System | Variable Steps |
| Counterbalance Weight | 2.2, 4.4, 6.5 kg |
| Center of Gravity | 55mm |
| Center Column | No Centre Column |
| Carry Bag Included | Yes |
| Closed Length | 86 cm |
| Easy Link | Yes (with Antirotation) |
| Front Tilt | -70° / +90° |
| Head Type | Video/Fluid Head |
| Leg Type | Twin |
| Leg Lock Type | Flip Lock |
| Material | Aluminium |
| Maximum Height | 169 cm |
| Min Height | 75 cm |
| Working Temperature | -30 °C to 60 °C |
| Pan Bar Included | Yes |
| Pan Drag | Continuously adjustable from 0 to max level |
| Panoramic Rotation | 360 ° |
| Plate Type | 504PLONGR-1 |
| Quick Release | Yes |
| Spreader | Mid Level -Variable Arm Length |
| Tilt Drag | continuosuly adjustable from 0 to max level |
| Accessory Compatibility | 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL |
