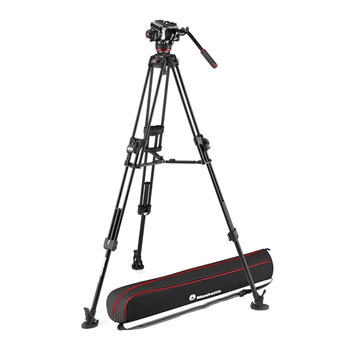

Manfrotto 504X & Fast Twin Tripod
Manfrotto 645 Fast Twin Aluminium Professional Tripod with 504X Fluid Video Head and Middle Spreader
Manfrotto - '504X Fluid Video Head with 645 Fast Twin Alu Tripod'
Multifunctional Power BankZhiyuns TransMount PowerPlus Battery Pack is a multifunctional power bank for Professional Filmmakers, made from a high strength alloy and highly portable for easy transportation in your camera pack. The PowerPlus Pack can house 6 detachable 18650 high capacity batteries, boosting your battery life up to 18 hours* so you can shoot for longer.
Amazing Features
• Fluid video head with 4-step counterbalance system up to 6.5kg
• Maximum versatility thanks to flat base
• FAST Lever Lock & 3-angle selection mechanism for easy set up
• 100 mm half ball, compatible with a 75mm half ball adapter
• Side lock plate attachment and two 3/8" easy link connectors
• Included padded carrying bag
Professional Fluid Head & Tripod

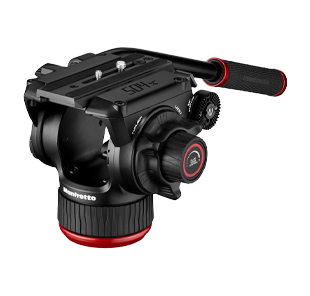

504X Fluid Video HeadThe 504X head features a 12kg maximum payload, an open bridge design to provide stable and smooth performance, a pan bar, a quick release plate, and a 4-step counterbalance system that can support loads up to 6.5kg at 55mm C.O.G. The flat base with two 3/8” Easy Link connectors, with anti-rotation function that allows for the mounting of external monitors or other accessories to expand your rig.

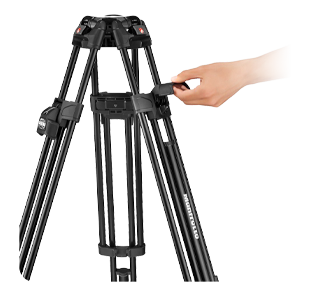

645 FFT Fast Twin Alu TripodThe 645 FFT Fast Twin Aluminium Tripod features a double tubing and FAST Lever Lock technology for robust support. With a maximum safety payload of 25kg and a mid-level spreader allow for the utmost stability whilst shooting. The tripod is also fitted with a 2-in-1 half ball, a standard 100mm bowl compatible with a 75mm adapter allowing for a wider range of video heads beyond the 504X.

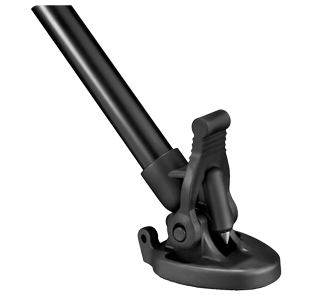

StabilisationEquipped with spiked feet with rubber overshoes for a firm grip even in the most adverse shooting locations. Compatibility with Manfrotto’s 2-in-1 ground and middle telescopic spreader allows for further stabilisation along with the 3-angle selection mechanism for easy set up.
The Tech Spec
| Features | Specification | Weight | 6.2 kg |
|---|---|
| Top Attachment | 1-4" screw, 3/8" screw |
| Ball Flat | Flat |
| Safety Payload Weight | 12 kg |
| Counterbalance System | Variable Steps |
| Counterbalance Weight | 2.2, 4.4, 6.5 kg |
| Center of Gravity | 55mm |
| Center Column | No Centre Column |
| Carry Bag Included | Yes |
| Closed Length | 89.5 cm |
| Easy Link | Yes (with Antirotation) |
| Front Tilt | -70° / +90° |
| Head Type | Video/Fluid Head |
| Leg Type | Twin |
| Leg Lock Type | Flip Lock |
| Leg Angles | 20°, 50°, 70° |
| Material | Aluminium |
| Maximum Height | 173 cm |
| Min Height | 43.5 cm |
| Working Temperature | -30 °C to 60 °C |
| Pan Bar Included | Yes |
| Pan Drag | Continuously adjustable from 0 to max level |
| Panoramic Rotation | 360 ° |
| Plate Type | 504PLONGR-1 |
| Quick Release | Yes |
| Spreader | Mid Level -Variable Arm Length |
| Tilt Drag | Continuosuly adjustable from 0 to max level |
| Accessory Compatibility | 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL |
