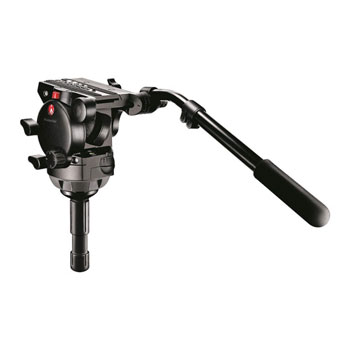

Professional Fluid Video Head
The 526 Professional Fluid Video Head directly addresses the high-end, heavy-duty video market by offering a feature-packed fluid video head with the ability to support up to 16 kg and counterbalance weight from 8 to 15 Kg. The 526 features a replaceable and removable pan arm rosette, designed so that if any damage occurs to the side castings only a small part needs to be replaced. Its large rubber padded knobs provide enhanced grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can easily be reached.
The 526 provides a fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus an additional no-drag setting (number 0) for occasions such as snap-pans/tilts. It features continuous counterbalance system for weights between 8 to 15 Kg @ 125 mm C.O.G. The built-in 100mm half-ball adapts to a number of our tripods, allowing quick camera levelling with the aid of the levelling bubble. It is provided with the 357PLV-1 sliding plate, 2 x 1/4' and 2 x 3/8' camera screws and a removable anti-rotation pin.
Features
Weight: 3.6kg
Counterbalance System: Variable Continuous
Safety Payload UNI/PdR 105:2021: 16kg
Counterbalance Weight: 8 - 15kg
Material: Aluminium
Bubble Spirit Level: 1
Center of Gravity: 125mm
Top Attachment: 1/4" screw, 3/8" screw
Colour: Black
Easy Link: No
Front Tilt: -70° / +75°
Ball Flat: 100 Ball
Head Type: Video/Fluid Head
Working Temperature: -20°C - 60°C
Pan Bar Included: Yes
Pan Drag: 0 plus 3 step
Panoramic Rotation: 360°
Plate Type: 357PLV-1
Quick Release: Yes
Tilt Drag: 0 plus 3 step
Working Height: 15cm
Accessory Compatibility: MVAPANBARM; MVAPANBARL; 519LV
