Magewell USB Capture SDI Plus
Scan code: LN133487
Manufacturer code: 32050
£323.99Item currently awaiting an ETA
Pre order
Magewell USB Capture SDI Plus
Magewell USB Capture SDI Plus, SD, HD, 3G, 2K SDI, Loop-Through, Embedded Audio
Scan code:
LN133487
Manufacturer code:
32050
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- From £15.82 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - 'USB Capture SDI Plus'
One-Channel 2K USB 3.0 Capture DeviceThe Magewell USB Capture SDI Plus is a one-channel 2K USB 3.0 capture device, featuring loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer. The Magewell USB Capture SDI Plus captures SD /HD /3G-A /3G-B/2K SDI signals from a wide range of devices, such as HD cameras and video switchers with, a Max input resolution of 2048x1080.
2048x1080Max Input Resolution
Embedded AudioAuto Selection
Auto DetectionInput Signal Format
The Tech Spec
| Features | Specification | Input Features | Max input & loop through video: 2048x1080 60fps 4:2:2 10-bit Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit Up to 8-channel embedded audio Input analog audio via 3.5mm line in SD/HD/3G-SDI BNC input & loop through SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standard Input SDI signals transmitted up to 150m for 3G-SDI signals |
|---|---|
| Process and Capture Features | Video processing pipelines with ~160M pixels/s processing bandwidth Capture videos up to 2048x1080, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.): 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60 720x576p25 720x480p30 Output YUYV/UYVY/RGB24/RGB32 videos Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, colour format conversion, frame rate conversion, flip and mirror Output audio of SDI signal via 3.5 mm interface Up to 2 audio channels at 48KHz |
| Included Software | USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting |
| SDK & APIs | The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession/AudioUnit |
| Output Interface | USB 3.0 compatible with USB 2.0 compatible with USB 2.0 |
| Compatible Software | Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software |
| Recommended OS | Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS 10.9/macOS 10.12 and above Chrome OS |
| LED Indicator | Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal |
| Form Factor | 4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm) |
| Accessories | 1 × USB 3.0 cable |
| Power Consumption | 5V max current: ~0.5 A Max power consumption: ~2.5 W |
| Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |

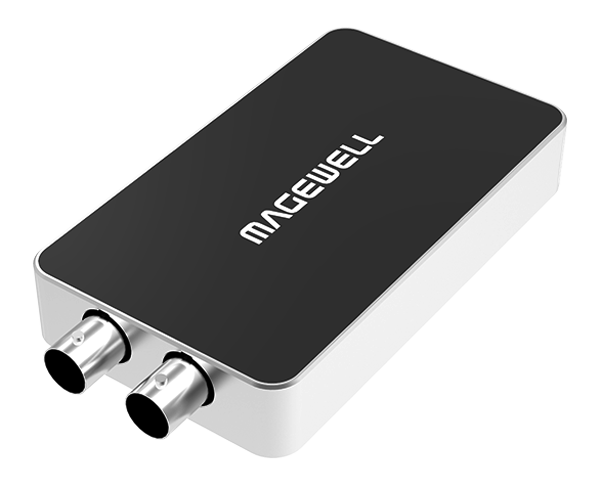

Magewell USB Capture SDI Plus
![Magewell USB Capture SDI Plus]()
