Magewell USB Capture HDMI Plus 2K External Capture Card

Magewell USB Capture HDMI Plus, One Channel 2K/Full HD USB 3.0 Capture Card with 4K Passthrough for PC/Xbox One/PS4 Pro

Scan code: LN86911 Manufacturer code: 32040 Request call
£346.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £8.67 / month (APR 15.9%)
From £16.66 / month (APR 14.9%)
Monthly Payment: £60.21
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £346.99
Total inc. interest: £361.26
Monthly Payment: £31.15
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £346.99
Total inc. interest: £373.78
Monthly Payment: £21.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £346.99
Total inc. interest: £386.62
Monthly Payment: £16.66
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £346.99
Total inc. interest: £399.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview USB Capture HDMI Plus
• Capture HDMI + Embedded Audio.

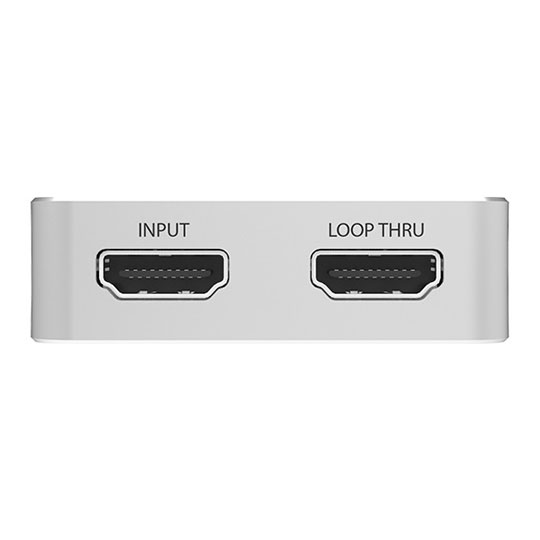

• Loop-Through HDMI Signal.
• Audio Input via Mic.
• Extract HDMI Embedded Audio Output via Headphones.
• Support 4Kp60 4:2:0 Input. Capture from the newest game consoles such as PS4 Pro and XBOX One S. Automatically down scale to 2K for recording or streaming.

USB Capture Utility V3
Utility V3 is a free software for USB Capture and USB Capture Plus devices. Users can easily check and set the capture-related parameters, upgrade the firmware by themselves and export info needed for technical support with the help of the Utility.

Capture Format Setting
Set the capture resolution, frame rate and colour space. If the capture format is different with the input format, the FPGA in the capture device will automatically do up/down scaling, causing 0 CPU usage. This function is especially useful when scaling by software causes much CPU burden.

Audio Volume Control
The Utility V3 can control the volume of the audio input (recording) and output (playback) of the USB capture (Plus) devices. The functions differ with models. If the system volume is changed, the parameter on the Utility V3 will also change accordingly. Users can click on the icon to quickly mute/unmute a playback/recording device.

Mirror and Flip
This function can reverse the captured image horizontally or vertically, making sure the viewer see the image in the right direction. Eg. When users use Facetime, they can easily mirror the image with the Utility V3.

EDID Editing and Importing
Users can edit and load the EDID of the capture device to support a specific input format, which is not supported by default. Eg. USB Capture HDMI 4K Plus will be able to input at 2560x1440p144 with this function.

Firmware Update
When Internet access is available, Utility V3 automatically checks the firmware version of the capture device and the latest version on the Magewell server. When a higher version is available, Utility V3 will remind users of the update. Users can check the release notes and decide whether they need to update the firmware or not depending on their needs.

Export Diagnose Report
When asking for technical support, users don’t need to manually gather device information. Just one click, and the Utility V3 will export most of the technical information required by the Magewell support team.
Features • Capture 2k x 2k.
• Compatible with Windows, Linux & Mac OS X.
• Plug and Play.
• Support UVC Protocol.
• Up/down Scaling.
• Deinterlacing.
• Image Control.
• Various Output Colour Spaces.
• Firmware Upgrade.
• Compatibility with Software.
• Continuously Work for 24h x7.
• Multiple Devices on One Host.
• 3-Year Warranty.
Edition USB Capture HDMI Plus
Interface USB 3.0
Video Input Signal Digital: HDMI
Audio Input Signal
  • Analog: 3.5mm Audio
  • Digital: HDMI (Pass-through)
Audio Input Format
  • 3.5mm Audio
  • HDMI (Pass-through)
Input/Pass-through Resolution 3840 x 2160p @ 60fps
Input/Pass-through Chroma Subsampling YUV 4:4:4
Video Output/Pass-through Signal Digital: HDMI
Audio Output/Pass-through Signal
  • Analog: 3.5mm Audio
  • Digital: HDMI
Audio Output/Pass-through Format
  • 3.5mm Audio
  • HDMI
Capture Resolution
  • 1920 x 1080p @ 60fps
  • 2048 x 2160
Capture Chroma Subsampling YUV 4:2:0
Audio Capture Format
Maximum Recording Quality 2048 x 2160

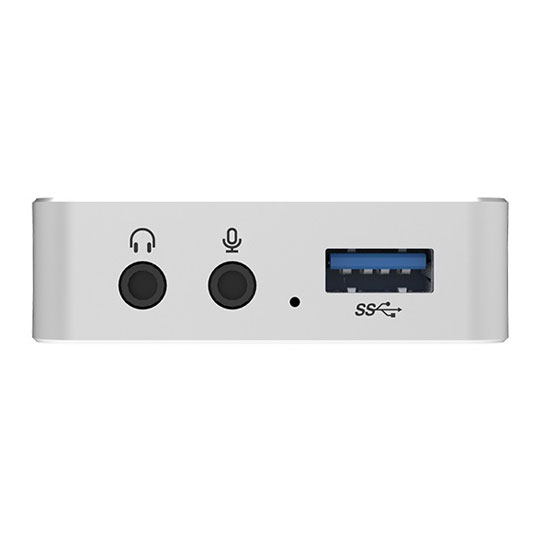

Input Ports
  • 1 x 3.5mm Stereo Jack
  • 1 x HDMI (Pass-through)
Output/Pass-through Ports
  • 1 x 3.5mm Stereo Jack
  • 1 x HDMI
  • 1 x USB 3.0
Supported Software
  • Microsoft Media Encoder
  • OBS
  • QuickTime Broadcaster (OS X)
  • VidBlaster
  • VirtualDub
  • VLC Media Player (Windows, OS X, Linux)
  • vMix
  • Wirecast (Windows, OS X)
  • XSplit Gamecaster
Compatible Operating Systems
  • Chrome OS
  • Linux CentOS 7
  • Linux Ubuntu
  • Mac OS 10.12
  • Mac OS X 10.11
  • Mac OS X 10.9
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
Minimum CPU Requirements
Minimum Graphics Card Requirements
Minimum Memory Requirements
Dimensions 56.8 x 17 x 98.1 mm (WxHxD)
