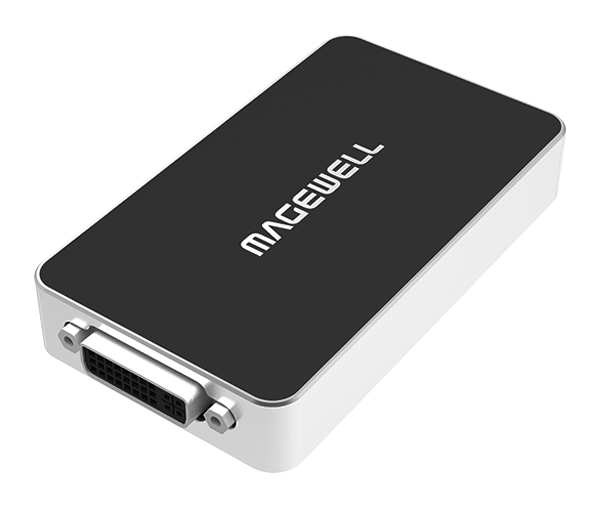

Magewell USB Capture DVI Plus
Scan code: LN133486
Manufacturer code: 32080
£414.49Item currently awaiting an ETA
Pre order
Magewell USB Capture DVI Plus
Magewell USB Capture DVI Plus, DVI, VGA, Component, HDMI, Embedded Audio
Scan code:
LN133486
Manufacturer code:
32080
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £11.01 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - 'USB Capture DVI Plus'
The Most Versatile Model In The Plus SeriesIntroducing the most versatile model in the Plus series, the Magewell USB Capture DVI Plus, capable of capturing DVI, VGA, HDMI, component and CVBS. Featuring a max input resolution of 2048x2160 and the ability to deliver captured video to your computer at up to 2048x1080 or 1920x1200. Using it’s DVI interface the Magewell USB Capture DVI Plus can capture video up to 2100p60 with line-level, analogue audio input or output as well as HDMI signals with embedded audio.
2048x2160Max Input Resolution
Embedded AudioAuto Selection
Auto DetectionInput Signal Format
The Tech Spec

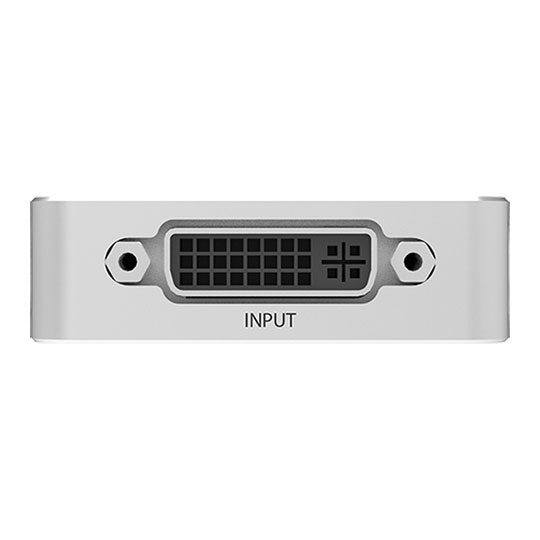

| Features | Specification | Input Features | 225MHz HDMI receiver, max input & loop through signal: 1920x1080p90 4:4:4 Custom EDID Input RGB/YUV 4:4:4 8/10/12-bit, YUY 4:2:2 12-bit HDMI signals DVI-I: DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI-to-VGA connector) Component (via breakout cable) 3.5mm audio jack for microphone |
|---|---|
| VGA & Component Specific Features | 12-bit ADC Support RGB & YCbCr (YUV) colour formats Support separated sync, composite sync, sync-on-green (SOG), sync-on-luminance (SOY) Support DMT, CEA, CVT, GTF and customized CVT/GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling |
| HDMI Specific Features | Video processing pipelines with ~160M pixels/s processing bandwidth Capture resolutions up to 2048x2160, frame rate up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.) 1920x1080p/1280x720p60 720x576p25 720x480p30 Output YUYV/UYVY/RGB24/RGB32 videos Video cropping, de-interlacing, up/down scaling, aspect ratio conversion, frame rate conversion, colour format conversion, flipping and mirror Output audio via 3.5mm line out Up to 2-channel IEC60958 audio streams |
| Included Software | USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting |
| SDK & APIs | The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc Windows DirectShow/Wave API/DirectSound/WASAPI Linux V4L2/ALSA macOS AVCaptureSession/AudioUnit |

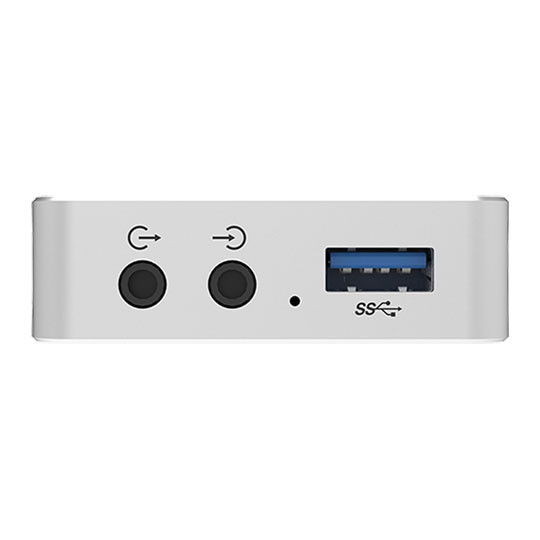

| Output Interface | USB 3.0 compatible with USB 2.0 compatible with USB 3.1 Gen 1 |
| Compatible Software | Zoom Rooms Microsoft Teams Skype for Business Google Hangouts GoToMeeting Gstreamer VLC OBS Studio XSplit QuickTime Player Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software |
| Recommended OS | Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux x86, x64 & ARM architecture, with 2.6.35 and above Mac OS 10.9/macOS 10.12 and above Chrome OS |
| LED Indicator | Status LEDs indicate the working state of the device: Pulsing slowly: input signal unlocked On: input signal locked Double blinks: memory abnormal or FPGA configuration failed Off: firmware or power supply abnormal |
| Form Factor | 101.5mm (L) x 56.8mm (W) x 17mm (H) |
| Accessories | 1 × USB 3.0 cable 1 × DVI to VGA connector 1 × DVI-I to HDMI + Component breakout |
| Power Consumption | 5V max current: ~600mA max power consumption: ~3W |
| Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: -20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |

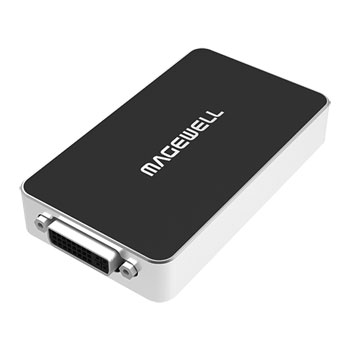

Magewell USB Capture DVI Plus
![Magewell USB Capture DVI Plus]()
