Magewell Pro Capture DVI
Magewell Pro Capture DVI, DVI, VGA, Component, HDMI, Embedded Audio
Scan code:
LN133324
Manufacturer code:
11030
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- From £13.48 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - 'Pro Capture DVI'

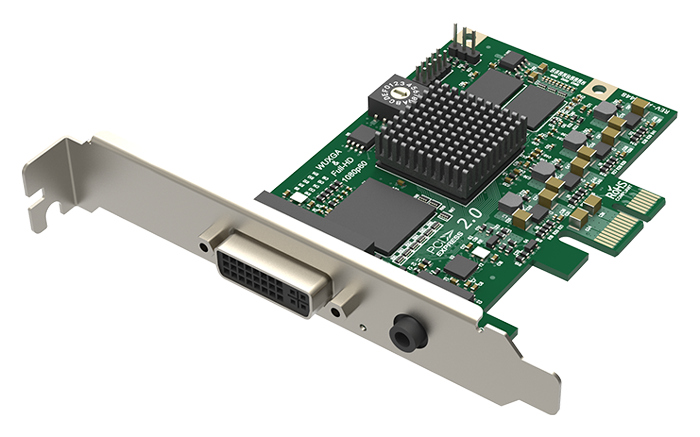

capture DVI video inputs to your Desktop PCThe Magewell Pro Capture DVI card is a PCIe 2.0 card that captures DVI video inputs to your Desktop PC. Capable of viewing HDMI or Analog sources from PCs, MACs, Industrial/medical equipment, cameras, game consoles and other video equipment; Streaming video or Broadcasting applications. Fitting into a single PCIe 2.0 slot, it accepts up to 2 DVI inputs at a maximum resolution of 2048x2160. The card also supports multiple colour sampling modes, at 10/12-bits. Additionally, the Pro Capture DVI comes with a range of built-in video processing tools such as cropping, scaling, and format conversion etc.
Up To 2048x2160Input Resolution
Embedded AudioAuto Selection
Auto DetectionInput Signal Format
The Tech Spec
| Features | Specification | Supported OS | Windows Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux (support x86, x64 & ARM architecture) Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above CentOS 6.5/7 (x86 & x64) and above Fedora 25/26/27 (x86 & x64) and above Red hat 6.5 (x86 & x64) and above Other Linux OS with kernel version 2.6.35 and above Mac OS X 10.9/10.10/10.11 and above macOS 10.12 and above |
|---|---|
| Recommended OS (tested) | WindowsWindows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10/18.04 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) Mac OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3/10.14.3/10.15 |
| Supported APIs | Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA macOS AVCaptureSession AudioUnit |
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software |
| Input Interfaces | DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI2VGA connector) Component (via breakout cable) 3.5mm Phone Jack Line in |
| Host Interface | PCIe Gen2 x1 |
| Input Features | Auto scan of video input sources when there is no signal input to the currently selected input source Manual selection of video input source Auto selection of linked (embedded) audio input source when the video input source changes Manual selection of audio input source Support for standard crossbar based on video input source selection Support for input video resolutions up to 2048x2160 pixels |
| VGA & Component Specific Features | 12-bit ADC Support for RGB & YCbCr (YUV) color formats Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY) Support for DMT, CEA, CVT, GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT officially supported) Auto detection of RGB & YCbCr color formats Auto or manual sampling phase adjustment Auto horizontal alignment Support for customized video timings Support for customized video resolutions for CVT/GTF timings |
| HDMI Specific Features | 225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
| Video Capture Formats | Support for capture image resolutions up to 2048x2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps.) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK |
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048x2160) Support for dynamic loading of RGBA OSD image via SDK |
| Multiple Cards per System | Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture DVI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surfaceSupport for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel: Pulsing slowly: idle On: input signal locked Off: input signal unlocked Double blinks: memory failed or FPGA configuration failed |
| Form Factor | Low profile PCIe x1 Add-on Card 92.76mm x 68.88mm (without PCI bracket) |
| Accessories | DVI to VGA connector DVI-I to HDMI + Component breakout Low Profile bracket |
| Power Consumption | Max current at 12V: ~ 0.35 A Max current at 3.3V: ~ 0.17 A Max power consumption: ~ 4.68 W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
