Magewell Pro Capture DVI 4K
Scan code: LN133316
Manufacturer code: 11160
£504.49Item currently awaiting an ETA
Pre order

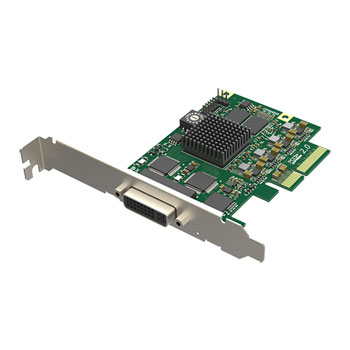

Magewell Pro Capture DVI 4K
Magewell Pro Capture DVI 4K, DVI-D, HDMI, Embedded Audio
Scan code:
LN133316
Manufacturer code:
11160
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- From £17.67 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £13.41 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - 'Pro Capture DVI 4K'

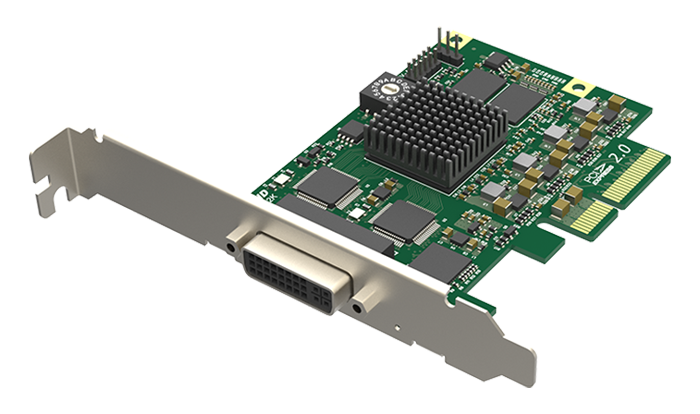

capture DVI video inputs to your Desktop PCThe Magewell Pro Capture DVI 4K card supports single-link and dual-link DVI inputs, capturing video up to 1080p HD over single-link or 4K 2160p30 over a dual-link connection. Featuring hardware-based video processing, providing high-quality deinterlacing, scaling, colour space conversion and video enhancements without taking valuable CPU cycles away from third-party software. Input video can be fed to multiple software applications simultaneously, with independent control of the resolution, frame rate and video processing for each output. The card can also support HDMI 1.4 signals up to 1080p with embedded audio using a simple HDMI-to-DVI adapter.
4K 2160p30Dual-Link Connection
Embedded AudioAuto Selection
Auto DetectionInput Signal Format
The Tech Spec
| Features | Specification | Supported OS | Windows Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux (support x86, x64 & ARM architecture) Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above CentOS 6.5/7 (x86 & x64) and above Fedora 25/26/27 (x86 & x64) and above Red hat 6.5 (x86 & x64) and above Other Linux OS with kernel version 2.6.35 and above Mac OS X 10.9/10.10/10.11 and above macOS 10.12 and above |
|---|---|
| Recommended OS (tested) | Windows Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10/18.04 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) Mac OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3/10.14.3/10.15 |
| Supported APIs | Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA macOS AVCaptureSession AudioUnit |
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software |

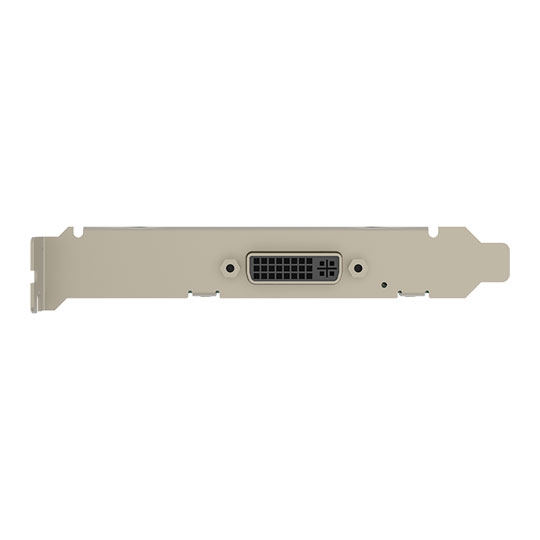

| Input Interfaces | DVI DVI-D 1.0 (Single or dual link) HDMI 1.4 |
| Host Interface | PCIe Gen2 x4 |
| Input Features | Support for input video resolutions up to 4096x2160 pixels |
| HDMI Specific Features | Dual 165MHz HDMI receiver Adaptive HDMI equalizer Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colourimetry support Support for single link DVI or HDMI signals at pixel rate no more than 165MHz Support for dual link DVI signals at pixel rate no more than 330MHz Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
| Video Capture Formats | Support for capture image resolutions up to 4096x2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK |
| Video Processing Features | Two video processing pipelines with ~360Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video colour format conversion Auto or manual selection of input colour format & quantization range Auto or manual selection of capture colour format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 colour formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 4096x2160) Support for dynamic loading of RGBA OSD image via SDK |
| Multiple Cards per System | Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture HDMI 4K” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channel Independent cropping, aspect ratio, colour format, resolution, frame rate, de-interlacing and colour adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~1200MB/s per channel DMA bandwidth in PCIe 2.x system ~800MB/s per channel DMA bandwidth in PCIe 1.x system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel: Pulsing slowly: idle On: input signal locked Off: input signal unlocked Double blinks: memory failed or FPGA configuration failed |
| Form Factor | Low profile PCIe x4 Add-on Card 92.76mm x 68.88mm (without PCI bracket) |
| Power Consumption | Max current at 12V: ~ 0.4 A Max current at 3.3V: ~ 0.86 A Max power consumption: ~ 7.28 W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
Magewell Pro Capture DVI 4K
