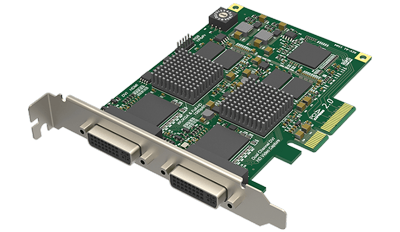

Magewell Pro Capture Dual DVI PCIe Capture Card
Scan code: LN133322
Manufacturer code: 11070
£642.49Item currently awaiting an ETA
Pre order
Magewell Pro Capture Dual DVI PCIe Capture Card
Magewell Pro Capture Dual DVI, 2x DVI, PCIE 2.0 x4 Capture Card, HDMI + Embedded Audio, Windows/Mac/Linux
Scan code:
LN133322
Manufacturer code:
11070
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- From £22.50 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £17.07 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - 'Pro Capture Dual DVI PCIe Card'
Dual CHannel HD Capture CardThe Pro Capture Dual DVI is an ideal solution for applications that require real time capture of HD video sources such as viewing HDMI or analog sources from PCs, Macs, Industrial/Medical equipment, cameras, games consoles, Live Streaming and other broadcast/video equipment. Pro Capture Dual DVI supports two DVI inputs enabling video capture from a mix and match of DVI+ audio, VGA+ audio, Component + audio and HDMI + embedded audio.
Bringing the best quality, performance and value, the Pro Capture Family are compatible with Windows, Mac and Linux, and support for multiple APIs for Windows and Linux and provides Windows SDK for ease of integration. Featuring an FPGA for video processing and data transmission to greatly reduce the CPU usage. Various features are included to improve the user experience so users can start to capture easily, and the cards maintain stable performance after long periods of use.
Up to 2048x2160Input Resolution
Embedded AudioAuto Selection
Auto-ScanningVideo Input Sources
The Tech Spec
| Features | Specification | Supported OS | Windows: Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above Linux: Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above CentOS 6.5/7 (x86 & x64) and above Fedora 25/26/27 (x86 & x64) and above Red hat 6.5 (x86 & x64) and above Other Linux OS with kernel version 2.6.35 and above Mac: OS X 10.9/10.10/10.11 and above macOS 10.12 and above |
|---|---|
| Recommended OS (tested) | Windows Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10/18.04 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) Mac OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3/10.14.3/10.15 |
| Supported APIs | Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA macOS AVCaptureSession AudioUnit |
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software |

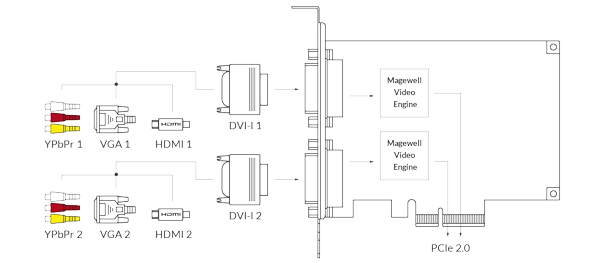

| Input Interfaces | 2x DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI2VGA connector) Component (via breakout cable) |
| Host Interfaces | PCIe Gen2 x4 |
| Input Features | Auto scan of video input sources when there is no signal input to the currently selected input source Manual selection of video input source Auto selection of linked (embedded) audio input source when the video input source changes Manual selection of audio input source Support for standard crossbar based on video input source selection Support for input video resolutions up to 2048x2160 pixels |
| VGA & Component Specific Features | 12-bit ADC Support for RGB & YCbCr (YUV) colour formats Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY) Support for DMT, CEA, CVT, GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT officially supported) Auto detection of RGB & YCbCr colour formats Auto or manual sampling phase adjustment Auto horizontal alignment Support for customized video timings Support for customized video resolutions for CVT/GTF timings |
| HDMI Specific Features | 225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colourimetry support Support for 8/10/12-bit colour depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 colour sampling Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode |
| Video Capture Formats | Support for capture image resolutions up to 2048x2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK |
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing • Weave • Blend top & bottom field • Top field only • Bottom field only Video aspect ratio conversion • Auto or manual selection of input aspect ratio • Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion • Auto or manual selection of input color format & quantization range • Auto or manual selection of capture color format, quantization range & saturation range • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats • Support for Limited or Full quantization range • Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition • Support for PNG OSD image (up to 2048x2160) • Support for dynamic loading of RGBA OSD image via SDK |
| Multiple Cards per System | Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture DVI” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channel Independent cropping, aspect ratio, colour format, resolution, frame rate, de-interlacing and colour adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~400MB/s per channel DMA bandwidth in PCIe 2.x system ~200MB/s per channel DMA bandwidth in PCIe 1.x system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel: Pulsing slowly: idle On: input signal locked Off: input signal unlocked Double blinks: memory failed or FPGA configuration failed |
| Form Factor | Normal profile PCIe x4 Add-on Card 115.9mm x 91.29mm (without PCI bracket) |
| Accessories | 2x DVI to VGA connectors 2x DVI-I to HDMI + Component breakouts |
| Power Consumption | Max current at 12V: ~ 0.8 A Max current at 3.3V: ~ 0.55 A Max power consumption: ~ 11.4 W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |

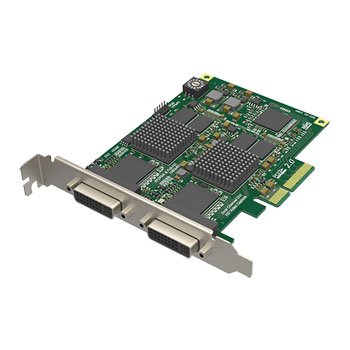

Magewell Pro Capture Dual DVI PCIe Capture Card
![Magewell Pro Capture Dual DVI PCIe Capture Card]()
