Magwell Eco Capture HDMI 4K Plus M.2
Magwell Eco Capture HDMI 4K Plus M.2
Scan code: LN154570 Manufacturer code: 115900000
£750.49Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : Magwell Eco Capture HDMI 4K Plus M.2
  • Thumbnail 2 : Magwell Eco Capture HDMI 4K Plus M.2
  • Thumbnail 3 : Magwell Eco Capture HDMI 4K Plus M.2

Magwell Eco Capture HDMI 4K Plus M.2

Magewell Eco Capture HDMI 4K Plus M.2 Capture Card, 4Kp60, HDMI 2.0 Support
MORE INFO
MORE INFO

Scan code: LN154570 Manufacturer code: 115900000
£750.49
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £26.28 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £62.54
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £750.49
    Monthly Payment: £31.27
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £750.49
    Monthly Payment: £26.28
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £946.09
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £19.94 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Single Channel 4Kp60 Capture Card

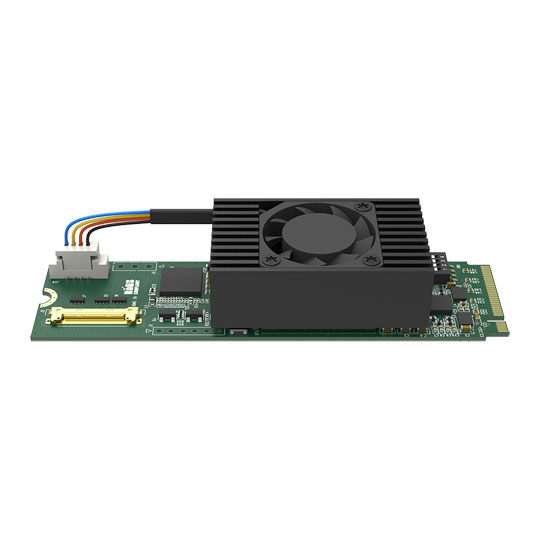

The Eco Capture HDMI 4K Plus M.2 Capture Card from Magewell is capable of capturing up to DCI 4K 60 video in the compact M.2 2280 form via PCIe 3.0x4. Capture up to eight channels of embedded audio with the single HDMI input via LVDS 0.5PH 20-pin cable adapter. Featuring auto signal detection, low-latency, and SG-DMA transmission modes, colour conversion, and support for multiple versions of Windows and Linux. Included heatsink with fan to keep the unit cool and maintain performance.


Features

Input Interface
• HDMI x1
• Supports input resolution up to 4096x2160 60fps

Host Interface
• M.2 2280 Type M (PCIe Gen3 x4)

Video Engine
• Auto detection of input signal format
• Colour formats conversion
• Low latency mode
• SG-DMA transmission mode
• Multiple replicated capture streams

Software
• Window & Linux driver and SDK
• Upgradable firmware
• Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®

Others
• 2-year warranty
• Continuously work for 24hx7
• LED status indicator
• Multiple devices on one host
• On-board dip switch to set card number

Specifications
Interface
Internal Connectors
External Connectors
Power Connector
Additional Information
Scan Code LN154570
Model Number 115900000
GTIN 6936572401386
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
280 months
