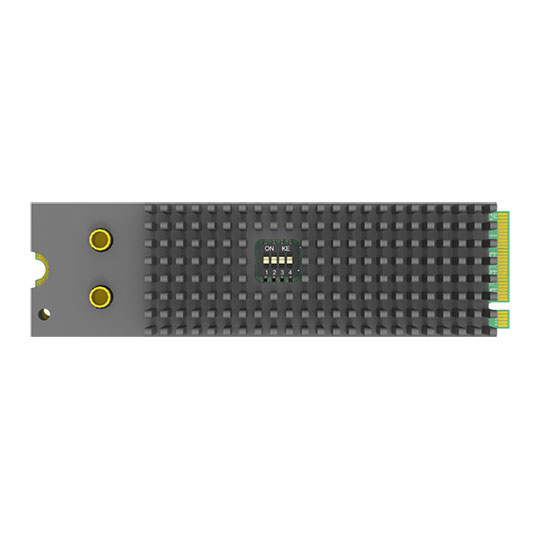

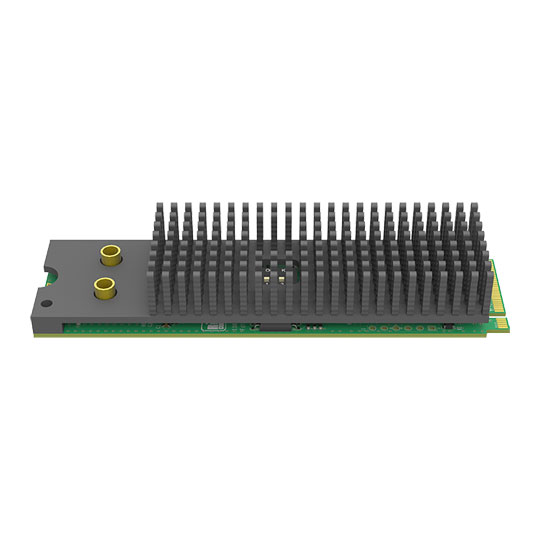

Magewell Eco Capture Dual SDI M.2
Magewell Eco Capture Dual SDI M.2 Capture Card, MMCX, 3G-SDI/2K-SDI
Email me when the availability or price changes
Single Channel 4Kp60 Capture Card
The Magewell Eco Capture Dual SDI M.2 Capture card supports two SDI inputs simultaneously and allows for capturing up to 2048x1080 resolution (via 2K/3G/HD/SD-SDI) with embedded audio from each source. Utilising an M.2 PCIe 2.0 interface this card provides the flexibility to be used in compact/thin tablet comptuers and other small form factor PCs where PCIe slots may be at a minimum. Offering processing and other features like, resolution scaling, and a high-fidelity pipeline. The card features two native MMCX input connectors and includes MMCX-to-BNC adapter cables for your SDI signals. Compatible with Windows and Linux operating systems and capable of operating 24/7 with an LED indicator for the working state of the input the entre time.
Features
Input Interface
• SD/HD/3G/2K SDI x2
• Support input resolution up to 2048×1080 pixels
Host Interface
• M.2 (PCIe Gen2 x2)
• Video Engine
• Auto detection of input signal format
• Colour formats conversion
• Low latency mode
• SG-DMA transmission mode
• Multiple replicated capture streams
• Closed caption (SDK required)
Software
• Window & Linux driver and SDK
• Upgradable firmware
• Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®
Others
• 2-year warranty
• Continuously work for 24hx7
• LED status indicator
• Multiple devices on one host
• On-board dip switch to set card number
