Magewell Eco Capture 12G SDI 4K Plus M.2
New
Magewell Eco Capture 12G SDI 4K Plus M.2
Scan code: LN154569 Manufacturer code: 115610000
£750.49Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Magewell Eco Capture 12G SDI 4K Plus M.2
  • Thumbnail 2 : Magewell Eco Capture 12G SDI 4K Plus M.2
  • Thumbnail 3 : Magewell Eco Capture 12G SDI 4K Plus M.2
New

Magewell Eco Capture 12G SDI 4K Plus M.2

Magewell Eco Capture 12G SDI 4K Plus M.2 Capture Card, 12G-SDI, DCI 4K 60

Scan code: LN154569 Manufacturer code: 115610000
£750.49
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £26.28 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £62.54
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £750.49
    Monthly Payment: £31.27
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £750.49
    Monthly Payment: £26.28
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £750.49
    Total inc. interest: £946.09
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £19.94 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Single channel 4Kp60 capture card

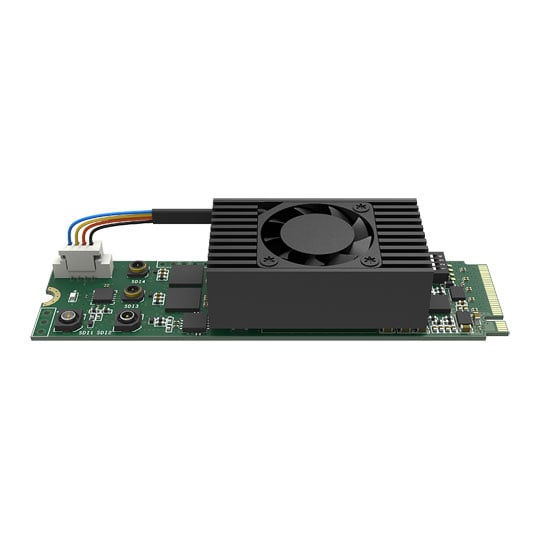

The Magewell Eco Capture 12G-SDI 4K Plus M.2 capture card is capable of capturing 10-bit video up to DCI 4K 60 with its compact M.2 2280 form. Featuring a single 12G-SDI and quad 3G-SDI inputs with eight channels of embedded audio capture with the PCIe 3.0x4 interface. Featuring auto signal detection, low-latency and SD-DMA transmission modes, colour conversion, and support for multiple versions of Windows and Linux. The unit stays cool thanks to the included heatsink and fan combo.


Features

Input Interface
• SD/HD/3G/6G/12G SDI
• Supports input resolution up to 4096x2160 60fps

Host Interface
• M.2 2280 Type M (PCIe Gen3 x4)

Video Engine
• Auto detection of input signal format
• Colour formats conversion
• Low latency mode
• SG-DMA transmission mode
• Multiple replicated capture streams
• Closed caption (SDK required)

Software
• Window & Linux driver and SDK
• Upgradable firmware
• Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®

Others
• 2-year warranty
• Continuously work for 24hx7
• LED status indicator
• Multiple devices on one host
• On-board dip switch to set card number


Specifications
Interface
Internal Connectors
External Connectors
Power Connector
Additional Information
Scan Code LN154569
Model Number 115610000
GTIN 6936572401485
