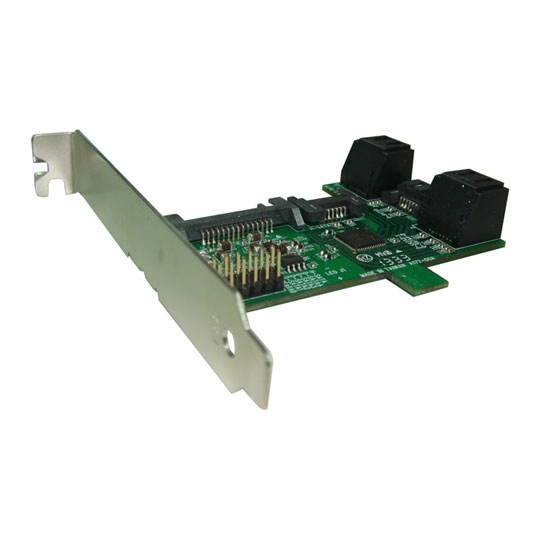

Lycom ST-172A SATA III-6Gbps 1-to-5 Port Multiplier Low Profile Host Adapter

Lycom ST-172A SATA III-6Gbps 1-to-5 Port Multiplier Low Profile Host Adapter

Scan code: LN55362 Manufacturer code: ST-172A Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Entry Level
Delivery options £5.48 By DPD On 25th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview 5 Ports 6Gbps SATA III Port Multiplier Low Profile Host Adapter expands main board SATA one port to connect 5 units of SATA Device!
Features • 5Ports SATA III 6Gbps Port Multiplier Host Adapter
• Fully compliant with Serial ATA specifications 3.0
• Expand Main Board one SATA port to five SATA Drives connection
• Supports Port Multiplier-aware SATA II and SATA III host
• Fully support for FIS-based switching and command-based switching SATA host controllers
• Supports any type of SATA Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk)
• Auto-negotiation support for 1.5Gbps, 3Gbps and 6Gbps SATA devices
• Supports Native Command Queue (NCQ)
• Supports Hot-Plug
• LED Pin Headers for SATA Host & 5 devices (Link & Active)
• Low Profile PCIe Form Factor
• Regular size PCIe bracket on board and Low Profile PCIe Bracket included
• Require an empty mechanical space of PCI or PCIe slot in computer
• 100% OS-transparent hardware bridge converter to support PC, MAC and Linux, no driver required
• PCBA Powered by 15pin SATA power connector
• Fully RoHS compliant
Ports Total 5 Port
Ports Internal 5 Int Ports
Ports External Ext Ports
Connectors 5 x SATA III - 6Gb/s
RAID Support N/A
Low Profile Compatible No
Cables Inc.
Cache Memory

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
1 days
RTB Period:
12 months
Manufacturer Contact Details
Customers also bought
Lycom ST-172A SATA III-6Gbps 1-to-5 Port Multiplier Low Profile Host Adapter is rated 4.5 out of 5 by 2.
Rated 4 out of 5 by from Good kit for beginners Never used one of these before but easy to install and doubled the amount of sata drives I could use. If I could afford it though I would still recommend one of the pcie sata expansion board's as you get much faster transfer rates.
Date published: 2015-04-27
Rated 5 out of 5 by from Does the job. This adaptor converted my 6-port storage controller on my motherboard (Asus Sabretooth 990FX R2.0) into a 10-port one. It's a much cheaper and reliable solution than buying a separate PCIE storage controller and it doesn't even need to take up a PCIE slot: I've secured mine in my computer's case, with cable ties. Well worth the money.
Date published: 2014-09-30
  • y_2017, m_9, d_21, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_55362, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Lycom ST-172A/ST-126 compatibility

I already have a Lycom ST-126 set up with 5 x 1TB in RAID 5 and an spare cold 1TB so I'm cool if a disc fails however if the controller fails I am screwed. So my question is: Is the ST-172A disc compatible with the ST-126. As it has a faster SATA III interface I'd prefer to use this and keep the ST-126 as the reserve, so if I swap over the boards will the disc array be recognised by the ST-172A? Equally important if there is compatibility is it both ways so if the ST-172A was to fail, once reconnected would the ST-126 pick up the array correctly?
Asked by: DaveJO
