Lycom ST-125 Raid5 SATA II 4Ports (1External eSATA + 3 Internal) inc Dual PCI Brackets
End Of Life
Lycom ST-125 Raid5 SATA II 4Ports (1External eSATA + 3 Internal) inc Dual PCI Brackets
Scan code: LN23514 Manufacturer code: ST-125
End Of Life

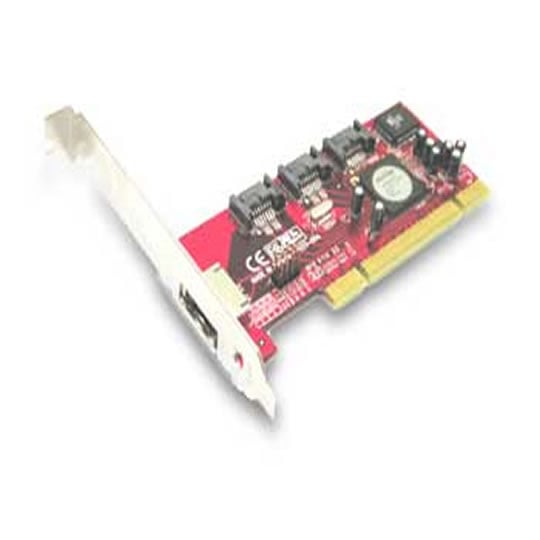

Lycom ST-125 Raid5 SATA II 4Ports (1External eSATA + 3 Internal) inc Dual PCI Brackets : image 1
  • Thumbnail 1 : Lycom ST-125 Raid5 SATA II 4Ports (1External eSATA + 3 Internal) inc Dual PCI Brackets
End Of Life

Lycom ST-125 Raid5 SATA II 4Ports (1External eSATA + 3 Internal) inc Dual PCI Brackets

Lycom ST-125 4 Port HDD Controller, 3 Int Ports, 1 Ext Port, Inc Dual PCI Brackets
MORE INFO
MORE INFO

Scan code: LN23514 Manufacturer code: ST-125
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview eSATA II – 3Gbps 4Ports with Raid5, Raid10, Raid0, Raid1, Port Multiplier and NCQ!

RAID 5 (Distributed Parity RAID), JBOD (Just Bunch of Disks), RAID 0 (Striping), RAID 1 (Mirroring) and RAID 0+1 (mirrored-stripping) improve the data performance and provide the data redundancy and rebuilding. Features

  • SATA II External Connector (eSATA) on External port

  • Provides 2 Brackets to Support Low profile PCI and Regular size PCI in one card


1. PCI



  • Compliant with PCI Specification, revision 2.3

  • Supports 66 MHz PCI with 32-bit data

  • Internal application interface multiplexed to 4 ports

  • All registers appear in unified memory space

  • Full-chip command completion status accessible with single PCI burst access

  • I/O port access to register space

  • Low Profile PCI form factor


2. High Speed Serial ATA



  • Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1

  • Hot-plug capability

  • Supports Serial ATA Generation 2 transfer rate of 3.0 Gb/s

  • Supports SATA II First-party DMA commands for Native Command Queuing (NCQ)

  • Supports Serial ATA II Port Multiplier 1.0 Specifications revision 1.1

  • Plesiochronous, Single PLL architecture, 1 PLL for 4 ports

  • Supports four independent Serial ATA channels

  • Independent Link, Transport, data FIFO, command fetch, scatter/gather, and command execution

  • 31 Commands and Scatter/Gather Tables per Port

  • Supports bootable drive

  • Four Pin header on board for LED connection

  • RAID 5 (Distributed Parity RAID) has Highest Read data transaction rate and Good aggregate transfer rate

  • JBOD is a virtual disk that combines all disk drives as one entire disk drive

  • Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to multiple drives

  • Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives

  • RAID 0+1 (Mirrored-Stripping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring

  • Completely with drivers for Windows 2000 ,XP and 2003 Server

  • Supports 64bit / 32bit Windows Vista

  • Linux 32bit / 64bit drivers supported for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE9.0 SP2, SuSE9.0 SP3 by SiliconImage SiI3124.

  • Fully RoHS compliant
