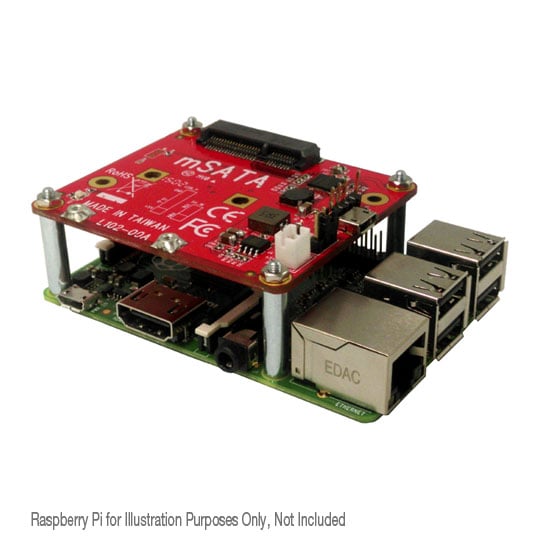

Raspberry Pi mSATA SSD USB Adapter Board Pi-102

Lycom Pi-102, Raspberry Pi USB to mSATA Converter Board, Supports SATA I/II/III mSATA SSDs, With Mounting Accessories

Scan code: LN65089 Manufacturer code: Pi-102
£19.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Easy Install and Utilize mSATA SSD in your Raspberry Pi! Features • Connect Raspberry Pi USB to mSATA SSD
• Supports SATA III, SATA II and SATA I mSATA SSD
• Compliant with Serial ATA Specification Revision 2.6
• Supports Serial ATA transfer rate of 6.0 Gbps
• Supports ATA/ATAPI Packet Command Set
• Supports ATA/ATAPI LBA 48 Addressing mode
• Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
• Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
• Both USB micro-B connector and USB 5Pin Pinheader on board for Raspberry Pi connection
• USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
• Jumper selection either power wafer of external 5V sufficient power or 5V USB bus power to PCBA & mSATA SSD
• On board activity LED for mSATA accessing
• Includes 2 mSATA screws for the retention of mSATA module
• Includes Multi-Pi mounting accessory of standoff & nut & screw
• Fully RoHS compliant
Specifications
Edition Pi-102
Form Factor
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions
Weight
Includes
Notes
Additional Information
Scan Code LN65089
Model Number Pi-102
GTIN 5712505700686
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan Computers International Limited
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Lycom Pi-102, Raspberry Pi USB to mSATA Converter Board, Supports SATA I/II/III mSATA SSDs, With Mounting Accessories is rated 4.6 out of 5 by 7.
Rated 4 out of 5 by from Works well but needs a tall case. This HAT does what it claims, looks well-made and works well. It requires the usual USB loop-back (PIs *really* need a USB header) but aside from that it provides a neat-looking solution. The offsets are quite tall, however, and are impractical to cut down so the HAT won't fit into most cases. I eventually got it to fit by mounting it into the case upside down. Even then I had to use an (Anidees Unibody) "extra tall" case to get the necessary headroom.
Date published: 2019-05-15
Rated 5 out of 5 by from Add an SSD to your Pi If you want to add an SSD to a Raspberry Pi (and maybe boot from it, instead of an SD card) this product works well. Easy to assemble and good quality build. Working well with 250GB Samsung 860 EVO, mSATA SSD.
Date published: 2018-04-16
Rated 5 out of 5 by from Quick and easy way to connect SSD to Raspberry Pi I had three HATS already to attach SSD to a Raspberry Pi from a KickStarter a few years ago. However I needed a fourth one, and this one does what it says on the tin. Only minor problem is that it is taller than a normal HAT, but this is a small problem in my setup. The photo shows my TetraPi of four Raspberry Pi Model 3B working as a mini-super computer.
Date published: 2017-08-04
Rated 5 out of 5 by from Just works! This thing just does what it's supposed to. It allows you to connect an mSATA drive to your Raspberry Pi over USB. Works with other USB enabled devices, too. Only suggestion I would make is that a shorter up-angled USB to micro USB cable or connector be supplied instead of having to use a standard cable.
Date published: 2017-06-16
Rated 4 out of 5 by from Simple, near plug and play This board seems to be well put together and installation was very easy. My 2A RPi power supply was enough to power this with a drive connected so no need for an additional power supply just for the SSD. Would have been nice if it shipped with a short USB cable as I had to order one separately. Also the provided spacers hold the board quite far from the RPi, though I suspect this is to allow access to the GPIO pins as it has no pass-through.
Date published: 2016-07-25
Rated 5 out of 5 by from Msata This was the only method that worked for me attaching msata, after many fails, because of not enough power, (Pi blacking Out) Raspberry Pi 2 has a finite load, 2 amp, once you pass that /?/.<, with this board I was able to use an alternative power source to the Msata, ease........................... -_-
Date published: 2016-05-27
Rated 4 out of 5 by from Great for multiboot with Berryboot. Well worth the money even though you will have to supply your own USB cable. Would have been 5 stars if it came with a custom USB cable. I mounted mine under the Pi inside a FLIRC case with a custom 3D printed base.
Date published: 2015-09-02
  • y_2019, m_9, d_14, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_65089, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

does this use the header pins or a usb socket?

Asked by: Pencoys
I think you can use either but I got it to work only with the USB socket. The header delivered power but not data, although that might have been down to my poor soldering.
Answered by: LRickwood
Date published: 2019-07-14
