Low Profile 4 Port SATA 3 Internal PCIe Adapter card Lycom PE-120 AHCI

Lycom PE-120 AHCI SATA III-6Gbps Internal 4 Port Low Profile PCIe 2.0 Host Adapter

Lycom
Scan code: LN51601 Manufacturer code: PE-120 Request call
£37.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Internal 4Ports 6Gbps AHCI SATA III PCI Express 2.0 2Lane Host Adapter! Features • 6Gbps SATA III Internal 4 Ports PCIe Gen2 2Lane Host Adapter
• Supports PCIe 1.0 and PCIe 2.0 motherboard
• Compliant with 10Gbps x2 PCI Express 2.0
• Fully compliant with Serial ATA specifications 3.0
• Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
• Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
• Supports ATA and ATAPI commands
• Supports Native Command Queuing (NCQ)
• Supports totally max 7 drives connected
• Supports max one SATA FIS-based or Command-based Port Multiplier and max 4 drives connected to PM
• Low Profile PCIe Form Factor
• Regular size PCIe bracket on board and an additional Low Profile bracket included
• SATA Hot-plug capability
• Pin headers on board for HDD LED connection
• 64bit / 32bit Windows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x built-in AHCI inbox driver support, no additional driver required
• Supports Windows XP driver
• Supports Hardware RAID 0, RAID 1, HybridDrive mode by GUI or BIOS setting in Windows, but Non-RAID only for drives attached to PM
• Fully RoHS compliant

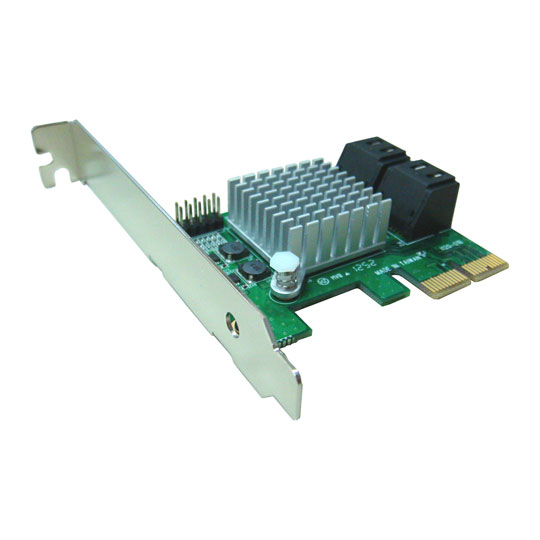

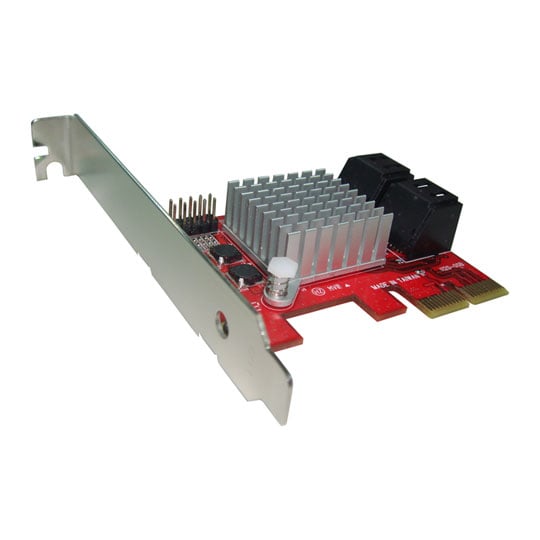

Please note: PCB may be Red or Green.
Specifications
Specifications
Ports Total Port
Ports Internal Int Ports
Ports External Ext Ports
Connectors 4 x SATA III - 6Gb/s
Interface PCIe 2.0 x2
JBOD No
RAID Support
  • RAID 0
  • RAID 1
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
Reviews
Rated 3.7 out of 5 by 7 reviewers.
Rated 2 out of 5 by Beware - Unusable for System Drives The card does not have its own BIOS*, so you cannot use it for any disk drive that contains an operating system. (Tested with Windows 7 and OpenSUSE.) This means that you can use the card only for additional data or backup drives. Note (*): Explanation - since there's no BIOS for the card, the computer's BIOS doesn't see any of the attached drives. This means that Windows and Linux will only see it after they have fully started. 15 March 2016
Rated 5 out of 5 by Great hardware RAID card Very fast RAID card (hardware based). Achieving speeds of 100MB/s of HDDs connected. Highly recommend this card. 07 March 2016
Rated 5 out of 5 by nice A nice easy transaction great company to deal with 30 April 2015
Rated 5 out of 5 by Great SATA card Great SATA card allow me to add more hdd to my NAS I have been using this card for weeks with out any problems. worked out of the box on windows. 07 December 2014
Rated 2 out of 5 by Keeps locking up I bought 2 of these for a Home Server, seemed to work fine for a day or 2 then hard drives started freezing and disappearing from my computer. I removed one of the cards to see if i was overloading things but still had problems. I replaced the one card with an old sata2 card i had and no more freezing. 17 November 2014
Rated 2 out of 5 by fast ?? . ...with 2, or 3 ssds max speed 700megs...expected a bit more :-( ..my ssd is on its own around 510-520, so this is step forward, with hand brake on :_))) 12 July 2014
Rated 5 out of 5 by whs 2011 setup After purchasing a bioster 1150 mini itx for my whs2011 nas only to find out it was not capable of hotsawp and several emails to biostar proved useless this came to the rescue! I have 4 hard drives connected to this unit and speed is marginally faster than onboard! And Hot swap capable! 17 March 2014
  • 2016-05-20 T12:52:39.763-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_7, tr_7
  • loc_en_US, sid_51601, prod, sort_default
1-7 of 7
Questions & Answers
(3 Questions : 3 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer

2 answers

sata 3

I have a nice new seagate 3gb sata3 drive

2 questions

1... can this sata3 drive be plugged directly into a sata2 mobo Yes / No and what cabling?

2.... looking at this item Lycom PE-120 AHCI SATA III(and the others in stock at scan) What cables are needed to connect the controller to the sata3 drive
Age: 55 to 64
Gender: Male
1 year, 9 months ago
Customer avatar
by
Lancashire, UK
Read all my Q&A

Please wait while more information about moleupnorth is loaded.
Additional information about moleupnorth could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Standard SATA III cables can be used in both instances.
1 year, 9 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about ChrisP is loaded.
Additional information about ChrisP could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
As long as you've a spare PC Express 2 slot it'll be fine, as for cabling just standard sata cables. The one thing i will say is the reliability of this card is very poor but may just be a quirk of my system.
Age: 35 to 44
Gender: Female
1 year, 6 months ago
Customer avatar
by
Havant, Hampshire, UK
Read all my Q&A

Please wait while more information about DarrenH is loaded.
Additional information about DarrenH could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Age: 35 to 44
Gender: Male
2 years, 2 months ago
Customer avatar
by
Nottinghamshire, UK
Read all my Q&A

Please wait while more information about Maltby is loaded.
Additional information about Maltby could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Yes it can hold 4tb, I have 6tb in total on this unit.
you can boot from ssd but depends on bios. If you bios allows boot from add on cards then ALL GOOD
2 years, 2 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about darkvader is loaded.
Additional information about darkvader could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
1) Does this pass through drives in non RAID - I just want a dumb SATA controller...

2) Support 3-8Tb drives? What is the biggest confirmed?

3) Multiple cards work together? I'll need 2 to co-operate and some controllers don't allow that!
Age: 45 to 54
Gender: Male
6 months ago
Customer avatar
by
St Albans
Read all my Q&A

Please wait while more information about Methanoid is loaded.
Additional information about Methanoid could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
