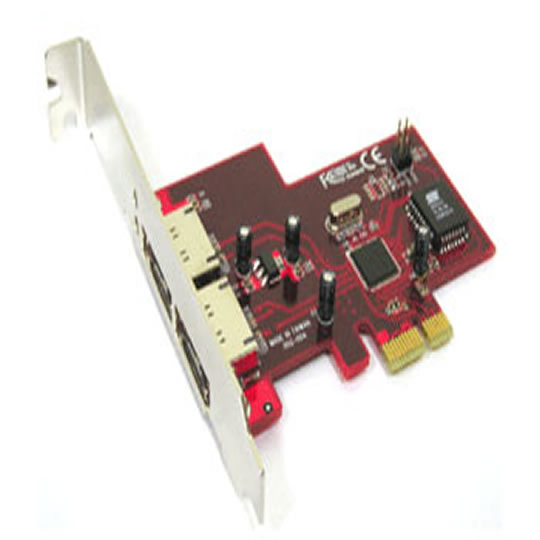

Lycom PE-102 2 Port eSATA PCI-E Controller - PC/MAC/Linux
Scan code: LN20104
Manufacturer code: PE-102
End Of Life
Product Overview
2Ports 6Gbps SATA II with NCQ, Port Multiplier in PCI Express 1X host!
This PCI Express Host Adapter can upgrade your desktop computer to have two SATA IIi Channels. The board
provides a 1X 2.5Gbps PCI Express interface on the host side and dual, fully compliant SATA II 3Gbps ports
on the device side to access Serial ATA mobile external and internal storage devices such as hard disk
drive, ZIP drive, CD-ROM, CD-RW, DVD-ROM. Features • External SATA II (eSATA) Connectors.
• 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB.
• Supports 1-lane 2.5Gbps PCI Express.
• Hot-plug capability.
• Supports SATA III transfer rate of 3.0/6GBs Gbps.
• Fully compliant with Serial ATA 3.0 specifications.
• Supports two independent Serial ATA channels.
• Independent Link, Transport, and data FIFO.
• Independent command fetch, scatter/gather, and command execution.
• Supports Legacy Command Queuing (LCQ).
• Supports Native Command Queuing (NCQ).
• Supports Non-zero offsets NCQ.
• Supports Out of order data delivery NCQ.
• Supports FIS-based switching with Port Multipliers.
• 31 Commands and Scatter/Gather Tables per Port.
• Two Pin headers on board for LED connection.
• Completely with drivers for Windows NT, Windows 2000, Windows XP and Windows Server 2003.
• Supports 64bit / 32bit Windows Vista.
• Supports Mac OS X v10.4. See SiliconImage SiI3132.
• Linux 32bit / 64bit drivers support for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1,
SuSE 9.0 SP1 RC5, SuSE Pro 9.3. See SiliconImage SiI3132.
• Fully RoHS compliant.
• Chipset: SiI3132.
