Line 6 DL4 MkII Delay Modeller Pedal
Line 6 DL4 MkII Delay Modeller Pedal with 15 new modern HX-derived effects and 15 new reverbs
Email me when the availability or price changes
Delay Modeller Pedal
Line 6 - DL4 MkII

Next Generation Delay ModelerThe Line 6 DL4 MkII features everything found in the original DL4 Delay Modeler, but introduces 15 new MkII delays drawn from the HX family of amp and effects processors and both 4-Switch and 1-Switch loopers with up to 240 seconds of record time (expandable to several hours using an optional microSD card).
You also get an XLR microphone input, MIDI In and Out/Thru connectors, heavy duty footswitches, three bypass options, and a jack for connecting an optional expression pedal or two additional footswitches. The design of the DL4 MkII is now smaller and lighter than the original, making it an even better choice for modern musicians.
at a glance
• 2nd generation of the renowned Line 6 DL4 Delay Modeler
• Features all the same sounds as the original and more
• 15 new modern HX-derived effects and 15 new reverbs
• Switch 1 & 4 loopers offer up to 240 seconds of recording time
• XLR microphone input allows you to loop vocals
• Can store up to 128 MIDI-selectable presets
Amazing Features

BUILDThe DL4 MkII is made from cast aluminum to withstand the rigors of performance.

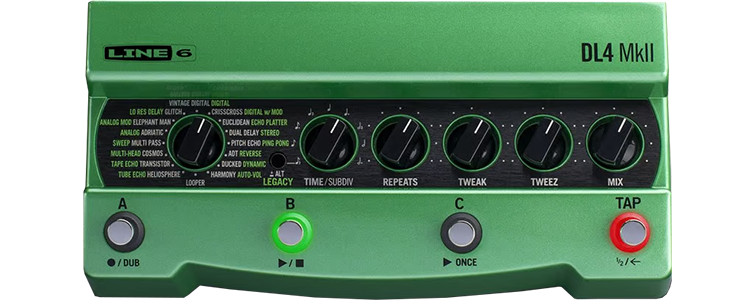

CONTROL LAYOUTDL4 MkII features the same layout of knobs and footswitches as the original. Pressing the Legacy button converts DL4 MkII into a DL4.

DELAYThere are 30 delays total: 15 new MkII delays drawn from the HX family of amp and effects processors, 14 original DL4 delays, and Echo Platter, taken from the rackmount Echo Pro.

LOOPINGThe 4-Switch Classic Looper and the 1-Switch Looper operate in either mono or stereo and may be positioned before or after other effects.

LOOPING TIME/MICRO SDOnboard memory offers up to 240 seconds of recording time, expandable to several hours using an optional microSD card, which also enables a loop to be stored in memory.

XLR MICROPHONE INPUTConnect a dynamic microphone to the XLR input for vocal (or acoustic instrument) processing and looping, and adjust the gain using the Trim control.

MIDIMIDI In and Out/Thru DIN connectors allow the DL4 MkII to receive continuous controller, program change, and other MIDI messages from external sources.

BYPASSBypass options include buffered, DSP, and true bypass. Buffered bypass and true bypass avoid A/D/A conversion by routing analog signals directly from the input(s) to the output(s).

FOOTSWITCHESThe footswitches select presets A, B, and C. When the Looper is active, they select the Record/Overdub, Play/Stop, and Play Once functions.

EXPRESSION PEDALConnect an optional expression pedal (automatically assigned to relevent effects parameters), two assignable external footswitches, or one of each.

EXTERNAL SWITCHESConnect up to two assignable external footswitches, an expression pedal, or one of each.

DC POWERDC power is provided by the included 9V DC-1g power supply or via most other 9V center-negative power supplies.
Line 6 | DL4 MkII | Overview

The Tech Spec
Features | Specification | Pedal Type | Delay |
---|---|
Analogue/Digital | Digital |
Presets | 6 x User, 128 via MIDI |
Effects | 30 x Delay, 15 x Reverb |
Max Delay Time | 4 seconds |
Looping Time | 2 minutes (stereo), 4 minutes (mono), Expandable to several hours with microSD card |
Tap Tempo | Yes |

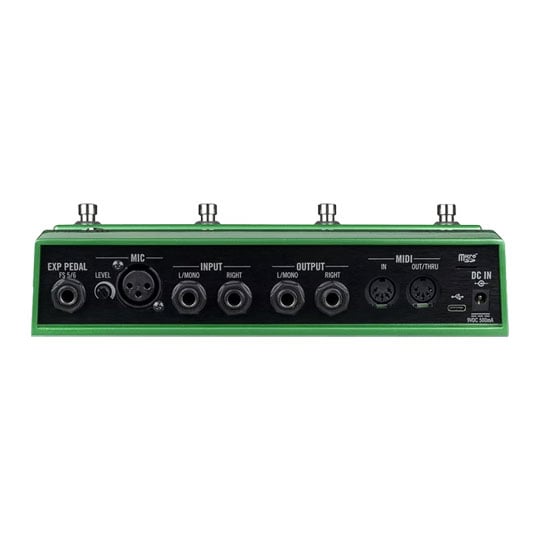

Inputs | 2 x 1/4" TS (L/mono, R), 1 x XLR (mic/instrument) |
Outputs | 2 x 1/4" TS (L/mono, R) |
MIDI I/O | In, Out/Thru, USB |
Other I/O | 1 x 1/4" (expression/dual external footswitch/one of each) |
USB | 1 x USB-C |
Bypass Switching | True Bypass, Buffered, DSP |
Power Source | 9V DC 500mA power supply (included) |
Dimensions | Width: 9.25" Height: 2" Depth: 4.5" |
Weight | 2.07 lbs. |
