Lewitt LCT 540 S Premium Studio Microphone
Lewitt - LCT 540 S, 1" True Condenser Cardioid Studio Microphone with Low-Cut Filters and Attenuation
- SCANPROTECT Protect against installation damage for 28 days. More info
Premium Studio Microphone

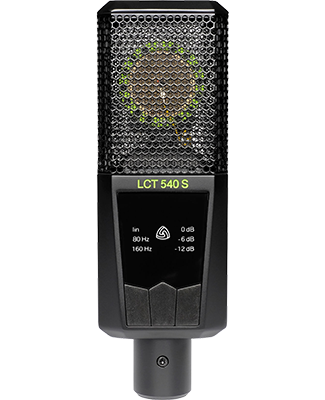

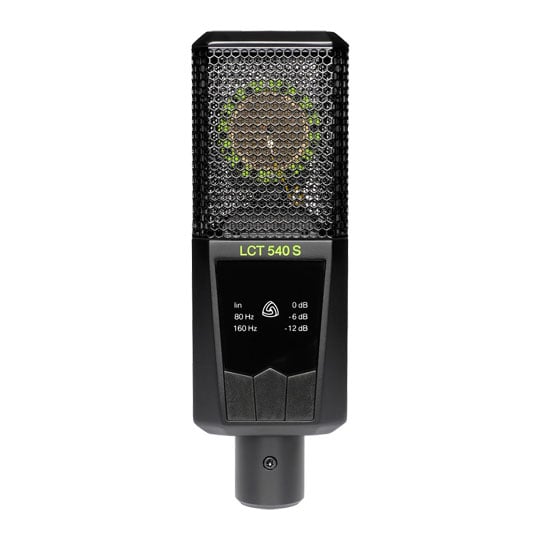

Lewitt - LCT 540 S
Capture every detailLewitt's unique approach towards electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, a new benchmark has been set in terms of capturing fine-grained details of your recording source. Record details of your voice and instruments that usually wouldn’t even be audible.

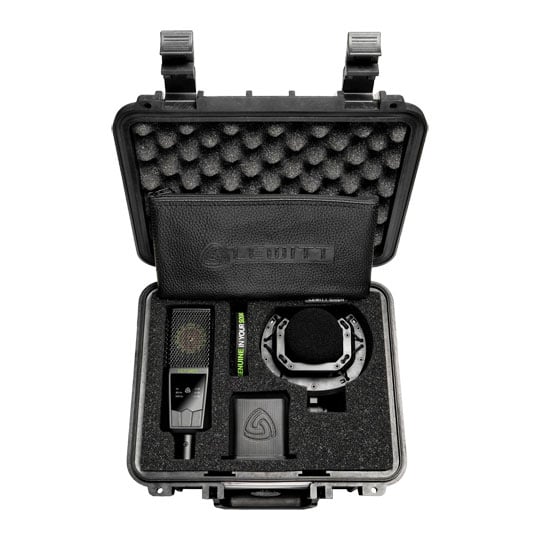

The human hearing threshold is very frequency-dependent. It is less sensitive towards low and very high frequencies and most sensitive around 2 – 5 kHz. With this specific and unique approach towards circuit and capsule design, Lewitt were able to realize self-noise that'll stay below the threshold of hearing across the full frequency spectrum. The LCT 540 S comes with a shock mount, magnetic pop filter, foam windscreen, transport bag and transport case included.
4 dB (A)Self-Noise
20 - 20,000 HzFrequency Range
136 dBMax SPL
At a glance
• 1" true condenser studio microphone
• Self-noise below the threshold of human hearing
• Ideal for extreme processing
• Low-cut filters and attenuation
• Cardioid polar pattern
A New Level of Musical Detail
Fit for extreme processingFeaturing cutting-edge circuit and capsule design, the LCT 540 S has an impressive dynamic range of 132 dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
Perfect match technologyEach of the LCT 540 S undergoes a range of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S we will ever produce. This way, you can form a pair when you buy another one later on.
LCT 540 S - Product Features and Sound Samples by LEWITT
The Tech Spec
| Features | Specification | Type | Condenser, externally polarized |
|---|---|
| Acoustical operating principle | Pressure gradient transducer, externally polarized |
| Transducer Ø | 25.4 mm, 1 in |
| Diaphragm | 3 micron gold sputtered Mylar |
| Polar pattern | Cardioid |
| Frequency range | 20 - 20,000 Hz |
| Sensitivity | 41 mV/Pa, -28 dBV/Pa |
| Self-noise | 4 dB (A) |
| Max. SPL for 0.5 % THD | 136 dBSPL, 0 dB attenuation |
| Signal / noise ratio | 90 dB (A) |
| Dynamic range | 132 dB (A) |
| Attenuation | 0 dB -6 dB -12 dB |
| Low-cut filter | linear 80 Hz (6 dB/oct) 160 Hz (6 dB/oct) |
| Internal impedance | 68 Ω |
| Supply voltage | 48 V ± 4 V |
| Current consumption | 3.6 mA |
| Microphone enclosure | Zinc die cast |
| Connector | Gold-plated 3-pin XLR |
| Microphone dimensions | 158 x 52 x 36 mm 6.22 x 2.04 x 1.42 in |
| Microphone net weight | 371 g 13.1 oz |
