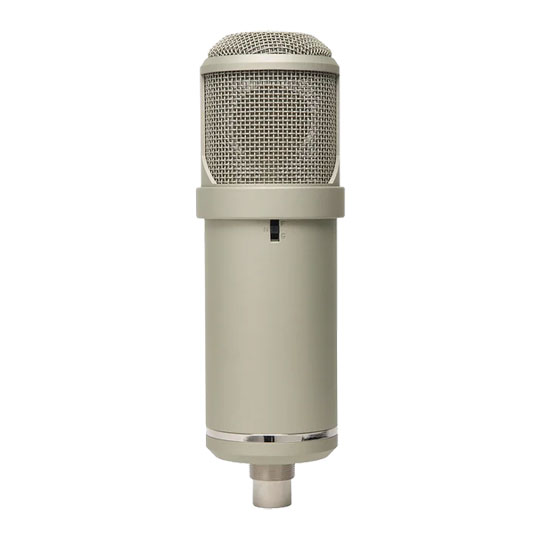

Lauten Audio ATLANTIS FC-387 Large Diaphragm Condenser Microphone
Lauten Audio - ATLANTIS FC-387, Large Diaphragm, Solid-State FET Condenser Microphone
Email me when the availability or price changes
Large Diaphragm FET Condenser Microphone

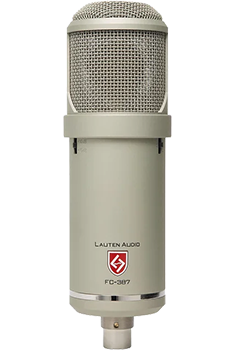

Lauten Audio - ATLANTIS FC-387

BUILT LIKE A TRUE CLASSIC WITH THE POWER OF MULTI-VOICINGThe Atlantis provides a dynamic and versatile range of sounds that makes picking the right microphone for even the most difficult sources as easy as flipping a switch. The precision-crafted 38mm capsule is one of the largest in the world, a one of a kind super-transducer designed in Silicon Valley and tuned by hand to capture the spirit, soul, and feel of a performance.
The Atlantis signal path includes high-resolution, low-distortion polypropylene capacitors, a US-made low-noise FET, and a custom-wound output transformer that puts the finishing touches on every sound that passes through its copper windings. Experience world-class recording quality with one of Lauten Audio's finest creations.
200 ΩImpedance
20 Hz - 20 kHzFrequency Response
130 dBMax SPL
Amazing Features
• Large-diaphragm, solid-state FET design captures smooth, natural sounding audio
• High-resolution, low-distortion polypropylene capacitors
• Built-in super-transducer, tuned by hand
• US-made low-noise FET
• Custom-wound output transformer
What's Included?
• Lauten Audio Atlantis Microphone
• Wooden Case
• Shock Mount
Multi-Voicing

ForwardBold, present and modern, but never harsh.

NeutralSmooth and earthy with a natural balancing of sibilant sounds.

GentleDark and sultry with a warm vintage feel, ideal for taming bright or abrasive sound sources.
Three Polar Patterns

Figure-8Captures sound equally from the front and back of the microphone for a more open, natural recording.

CardioidCaptures sound from the front of the microphone only. This is the most commonly used polar pattern for recording vocals with minimal room reflections.

OmnidirectionalCaptures sound equally from each side of the microphone for authentic, "in-the-room" instrument and vocal recordings.
Three-Way Gain Staging

+10dBWorks great for use with quiet sound sources and consumer-grade audio interfaces.

0dBThis sets the output of the Atlantis to its default output gain selection.

-10dBUseful when more color and saturation from a high-end preamp is desired.
The Tech Spec
Features | Specification | Microphone Type | Condenser |
---|---|
Polar Pattern | Cardioid, Omni, Figure-8 |
Diaphragm Size | 1.23" (31.25mm) |
Frequency response | 20Hz-20kHz |
Max SPL | 130dB |
Output Impedance | 200 ohms |
Sensitivity | 16mV/Pa (-36dB) |
Self Noise | 12dB (A weighted) |
Pads | -10dB |
Connector | XLR |
Colour | Silver |
Power Source | 48V phantom power |
Weight | 2.2 lbs. |
Included Accessories | Shock Mount, Wood Box |
