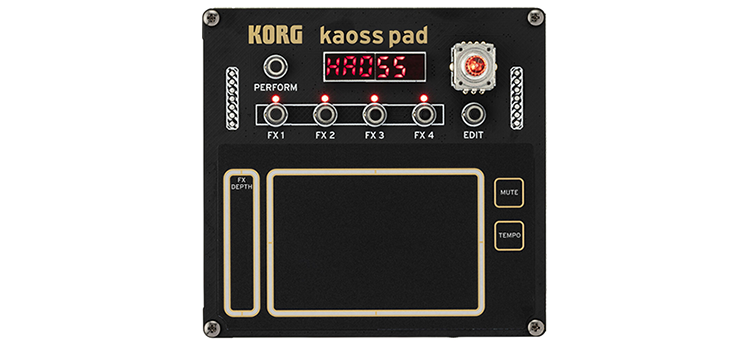

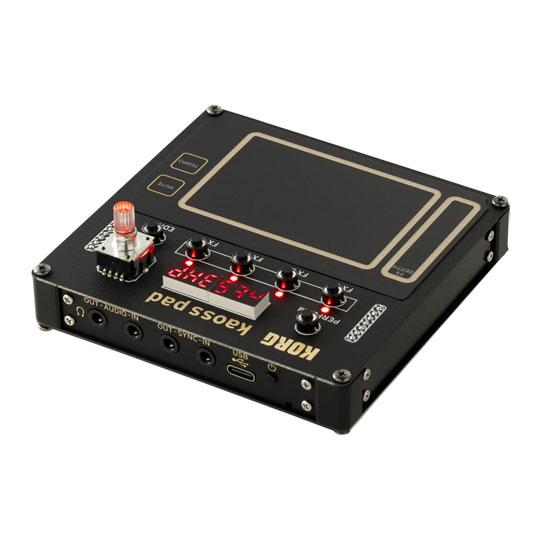

Korg NTS-3 KAOSS Pad
Korg - Nu:Tekt NTS-3 Kaoss Pad Effect Kit
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Korg - Nu:Tekt NTS-3 Kaoss Pad Effect Kit

Multi-Effects Processor with 35 FX Types
Crafted for performance, the KORG Nu:Tekt NTS-3 Kaoss Pad is a DIY effect processor that marries the famed KAOSS XY-pad touch interface with customizable KAOSS effects. With the capacity to wield up to four effects concurrently and extensive editing capabilities, this compact yet potent kit is perfect for musicians, sound aficionados, and DIY enthusiasts alike.
Assembly is hassle-free with included tools and no soldering required, while its adaptable connectivity ensures seamless integration into any setup. Complete with a USB cable, everything needed for assembly is included, making it the ultimate compact FX unit.
at a glance
• No Solder Kit Includes Screwdriver
• Filters, Modulation, Delay, Reverb
• Looper, Grainshifter, Vinyl Break
• Mastering Effects + Oscillators
• Use Up to 4 Effects at Once
• 100 Factory / 100 User Presets
• Includes USB Cable and Software Bundle
KAOSS Powered Performances

built-in powerful engineBetraying its compact size, The NTS-3 kaoss pad comes with a treasure trove of built-in, distinctive KAOSS effects. These range from essential filters and compressors to immersive delays, reverbs and imaginative modulation effects, offering a palette of original and previously unexplored performance possibilities.
With its powerful engine, the NTS-3 allows you to play individual KAOSS effects or seamlessly combine up to 4 effects simultaneously, which can be saved for future use. Toggle these on and off at will, and route them in various configurations for virtually endless avenues of creative expression and boundless performance possibilities.
But that’s not all—the NTS-3 opens the door to extensive editing options, enabling you to meticulously customize and fine-tune each effect's parameters to your heart's content, with the freedom and precision your creativity demands.
Unbound Playability

NTS-3 is not just an FX unit; its unique interface brings a new, fresh dimension to your performances with superior playability in a compact body that can be taken anywhere.
Drawing inspiration from the renowned intuitive, ease-of-use underlying all KAOSS products, NTS-3 uses the iconic XY pad to drive performance focused features like Mute, FX Depth and tap BPM, combined with a creative Latch function to separately control several Effects at the same time.
The Tech Spec

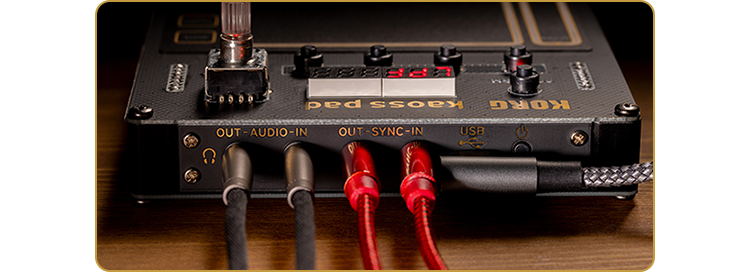

Features | Specification | USB I/O | 1 x USB-C Female Input/Output |
---|---|
Audio I/O | 1x 1/8" / 3.5 mm TRS Line Input 1x 1/8" / 3.5 mm TRS Line Output |
Synchronization | 1 x Sync (Input): 1/8" / 3.5 mm TRS, 20V Max Input Level 1 x Sync (Output): 1/8" / 3.5 mm TRS, 5V Output Level |
Power Source | USB (Included) |
Dimensions | 4.1 x 4 x 1.5" / 10.4 x 10.1 x 3.9 cm |
Weight | 119 g |
