Scan code: LN144550 Manufacturer code: NTS-1-MK2

Korg NTS-1 Digital MkII

Korg - Nu:Tekt NTS-1 Digital mkII Programmable Synthesizer DIY Kit

Thumbnail 1 : Korg NTS-1 Digital MkII Thumbnail 2 : Korg NTS-1 Digital MkII Thumbnail 3 : Korg NTS-1 Digital MkII
Scan code: LN144550 Manufacturer code: NTS-1-MK2
Call for price
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Programmable Synthesizer DIY Kit
Korg - Nu:Tekt NTS-1 Digital mkII

Korg Nu:Tekt NTS-1 Digital mkII

Includes USB Cable and Software Bundle Engineered for both studio and stage, the KORG Nu:Tekt NTS-1 Digital Kit mkII is a DIY programmable synthesizer kit that delivers formidable power in a compact package. Version 2 introduces a host of new features, an enhanced interface, and extensive customization options. With a more potent processor and upgraded logueSDK, the NTS-1 mkII unleashes its full potential, allowing for the creation of custom content.

Equipped with an advanced 18-note multitouch keyboard, this iteration facilitates precise playing and sequencing, enabling polyphonic MIDI note messages for enhanced creativity. Powered via USB-C or standard 5V USB power pack for portability, the kit includes all necessary components for assembly, with no soldering required. Complete with a screwdriver and USB cable, the NTS-1 mkII offers unparalleled versatility for musicians and synth enthusiasts alike.

at a glance

• No Solder Kit Includes Screwdriver
• 18-Note Multitouch Keyboard
• Digital Oscillator Based on MULTI Engine
• Multimode Filter, EG, 3 x LFOs
• 3 Effect Processors
• Modulations, Reverbs, Delays
• Includes USB Cable and Software Bundle

New Multitouch Keyboard

4K Recording

custom oscillators and effectsThe NTS-1 mkII boasts a new 18-key multitouch keyboard, substituting the ribbon controller of the first generation, for precise playing and sequencing. This upgrade unlocks the ability to send MIDI note messages polyphonically, opening the doors to custom oscillators and effects leveraging the paraphonic potential of the NTS-1.

The center of your performanceIn addition to a powerful arpeggiator, the new 8-step sequencer opens a whole new world of musical possibilities. With live and step recording modes (with per-note gate length and velocity settings) available in combination with its new keyboard and easy octave switch, the NTS-1 mkII provides an intuitive and seamless performance experience.

The NTS-1 mkII takes the sting out of forgetting your creative sparks. A new autosave function recalls all the parameters used in your last performance, including the step sequencer data, so you can pick up right where you left off. No more struggling to remember knob tweaks and pattern edits!

But that’s not all! NTS-1 mkII has a MIDI OUT output so you can use its internal sequencer to control other gear in your setup.

Powerful New Engine, Sounds and Effects

new oscillator types and modulation possibilitiesNTS-1 mkII is an extremely powerful, flexible and fun-to-explore synth. While retaining the versatile features of its predecessor, this new iteration adds an array of new sounds, including new oscillator types and modulation possibilities, using its Audio IN signal as a modulation source to create FM, AM or RING sounds.

The NTS-1 mkII is also an incredibly capable and expandable FX unit. In the mkII, we added many new Modulation (distortion, fuzz…), Delay (tape delay, BPM synced delays…) and Reverb effects, as well as handy oscillator OFF and Filter THRU functions, making it a uniquely versatile piece of gear that will cover all your needs at home or on stage.

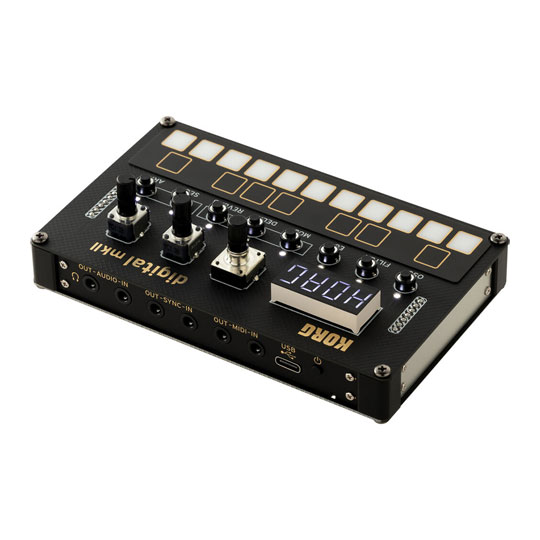

Expanded connectivityIntegrating the NTS-1 mkII is now easier than ever. In addition to the SYNC IN/OUT and MIDI IN, we’ve added a new MIDI OUT output for seamless connection and expanded performance possibilities with other gear. On top of that, most parameters on NTS-1 mkII have been made MIDI CC compatible for deeper control. It is also now powered through a new USB-C bus.

Even more DIY funThe new NTS-1 mkII retains the DIY kit format from the original, and offers new customization options with reversible anodized silver and metallic black side panels. And don’t worry, we’ve kept the same form factor and dimensions as its predecessor meaning custom sides, stands and other custom parts will still fit!

The Tech Spec

Features Specification
Sound Generation Digital
Keyboard 18 Touch Plate Keys with Synth Action
Audio I/O 1x 1/8" / 3.5 mm TRS Unbalanced Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input
MIDI I/O 1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Output
USB I/O 1x USB-C (USB 2.0, Bus Power, Host Connection)
Dimensions 5.1 x 3.1 x 1.5" / 12.9 x 7.8 x 3.9 cm
Weight 122 g
Product Type
PC Interface N/A
Connectivity (Input)
Connectivity (Output)
Dimensions (mm)
Misc. Notes
Additional Information
Scan Code LN144550
Model Number NTS-1-MK2
GTIN 4959112238107
