MS20 Mini - Korg - 37 Mini-Key Analog Synthesizer
Korg MS20Mini 37 Mini-Key Analog Synthesizer
Email me when the availability or price changes
Finance this product
- From £17.48 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £12.46 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Monophonic Synthesizer

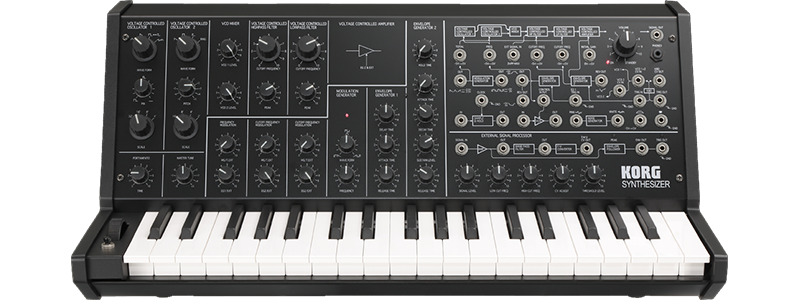

Korg - MS-20 mini
The classic MS-20 –recreated in mini size!Korg’s MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day, thanks to its thick, robust sound, its powerful, iconic analog filter, and its versatile patching options. Over 300,000 people have enjoyed the distinct MS-20 sounds from the original, from Korg’s MS-20 plug-in synth, and the iMS-20 iPad app. Today, the sounds of the MS-20 have been reborn as the MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fitted it into a body that’s been shrunk to 86% of the original size, yet retains the distinctive look of the original that remains unfaded despite the passage of time. The MS-20 mini will amaze you with its absolutely authentic analogue synth sound.
Amazing Features
• 2VCO / 2VCF / 2VCA / 2EG / 1LFO structure
• Self-oscillating high-pass/low-pass filters with distinctive distortion
• External signal processor (ESP) for processing an external signal
• Extremely flexible patching system
• 86% of the original size
• Replicates every detail of the original
• MIDI IN connector and USB connector
KORG MS-20 mini - Introduction Movie
The Tech Spec
| Features | Specification | Keyboard | C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini |
|---|---|
| Manual controller | Control wheel (center click), Momentary switch -->GND |
| Input and Output | Signal In: Amplifier Out, Band pass filter Out, CV Out (0 - +8.4V), ENV Out (0 - +5V), Trig Out (+5V-->GND), Signal out: Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k Ω) Head phones: Head phones output (Stereo 1/8" mini phone jack, 33 Ω 48mW), USB: Type B, USB-MIDI Input/Output *Only note messages (velocity is not used) can be transmitted and received. MIDI: MIDI Input *Only note messages (velocity is not used) can be transmitted and received. |
| Power Supply | DC9V |
| Dimensions (W x D x H) | 493 ×257 ×208 mm 19.41 x 10.12 x 8.19 inches |
| Weight | 4.8 kg / 10.58 lbs. |
| Accessories | AC adaptor (9V/1.7A), Patch Cord x 10 |
