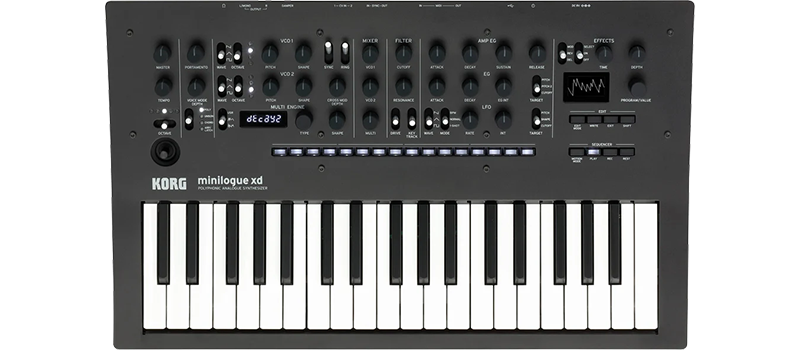

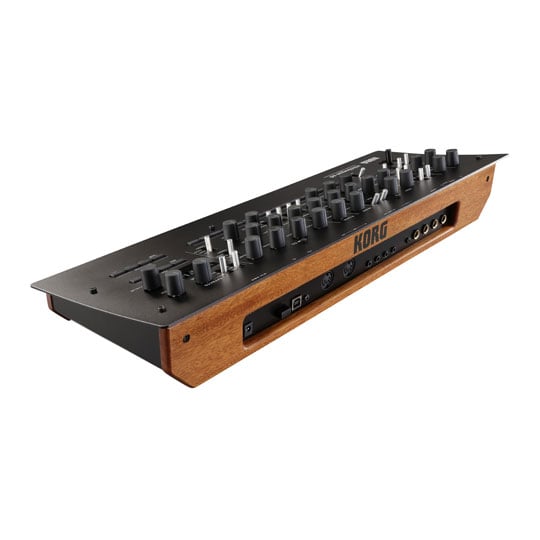

Korg Minilogue-XD Module Polyphonic Analogue Synthesiser

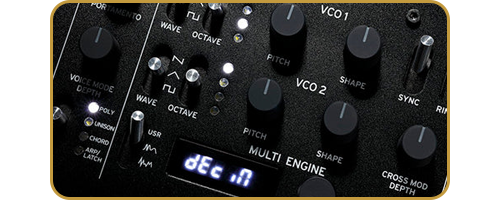

Equipped with a digital multi-engineThe additional sound design possibilities of digital sound are delivered by the multi-engine that's provided as a third oscillator in addition to the two analogue VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that's different than analogue, and use it at the same time as the analogue engine, infinitely expanding the potential of hybrid sound design.

Noise generatorThe noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the colour of the noise.

VPM oscillatorMinilogue XD’s multi-engine features a VPM (Variable Phase Modulation)/FM oscillator with a two-operator structure. It can produce sharp, metallic sounds with complex overtones beyond the possibilities offered by analogue systems. With 16 types of oscillator and a SHAPE knob control, you'll be able to create complex sounds intuitively.

User oscillatorsUser oscillators allow you to load your own oscillator programs that you created or obtained via the internet. There are 16 user slots, as well as one type of morphing wavetable oscillator provided as a preset.

High-quality digital effectsMinilogue XD’s high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.

User customisationThe Minilogue XD features a customisable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customise. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the Minilogue XD via the dedicated librarian software. What sounds might arise from the fusion of the expanded digital oscillators with analogue synthesis? Create original programs, share code, and participate in the user community. You can start with sample code provided by KORG.

Polyphonic step sequencerThe step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.

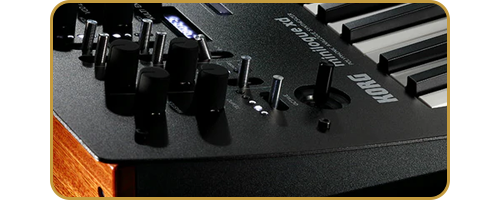

JoystickControls pitch bend and modulation depth, etc. A desired parameter can also be assigned to the up/down axis.

Voice modeThe four voice modes were selected for the Minilogue XD. A voice mode depth knob is also provided, which applies a corresponding effect for each mode.

Micro tuningThe Minilogue XD is equipped with the micro tuning function featured on the monologue, allowing you to individually adjust the pitch of each key. Built in are 23 preset tunings that include some created by Dorian Concept and Taylor McFerrin, and users can also create and store six user scales and six user octaves. Start by trying out the preset tunings of famous musicians, and then advance to creating your own original tunings.

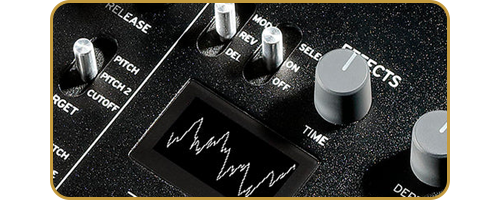

Oscilloscope and motion view displayThe organic EL display is now larger, and also provides oscilloscope functionality for you to view sound as the electrical signal's waveform. This makes parameter changes visible in real time, giving you visual feedback that helps you understand how the synthesizer works. The display can also show motion view for visualising the movement of a stored motion sequence.

Output is now stereoA stereo effect unit is provided at the final stage, and the output jacks are now also stereo. Spatial-type effects such as delay, reverb, and chorus will add an even more convincing touch to your thick analogue synth sounds and sparkling digital synth sounds.

Damper pedal jackA damper jack has been added in response to requests from artists and users.

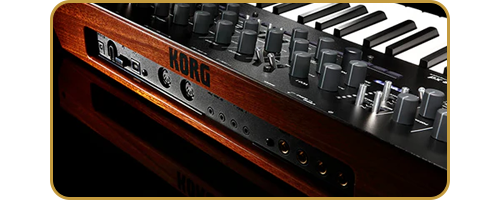

Two CV IN jacksTwo CV IN jacks are provided, with voltage levels of -5V–+5V. In addition to CV/Gate, these can also input modulation signals, allowing you to use external devices to control parameters in the same way as moving the joystick up or down.
