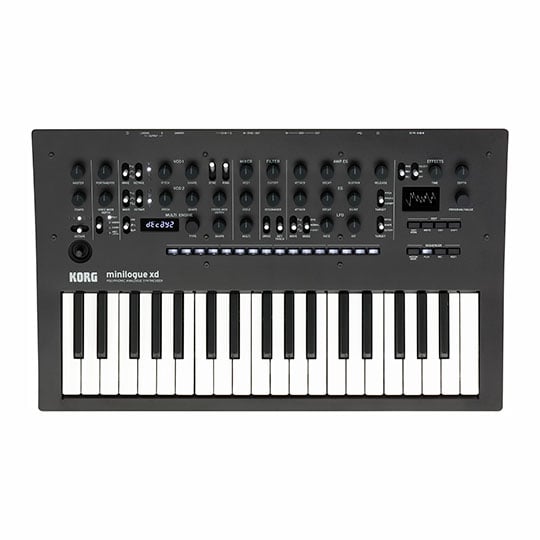

Korg Minilogue-XD Polyphonic Analogue Synthesizer

Korg Minilogue-XD Four-Voice Polyphonic Analogue Synthesizer, Digital Effects, Step Sequencer, User Oscillators

Thumbnail 1 : Korg Minilogue-XD Polyphonic Analogue Synthesizer Thumbnail 2 : Korg Minilogue-XD Polyphonic Analogue Synthesizer Thumbnail 3 : Korg Minilogue-XD Polyphonic Analogue Synthesizer Thumbnail 4 : Korg Minilogue-XD Polyphonic Analogue Synthesizer Korg Minilogue-XD Polyphonic Analogue Synthesizer : video thumbnail 1
Scan code: LN95720 Manufacturer code: MINILOGUE-XD
£565.00Item overdue since 20 April 2019
Pre order
Free Delivery
From £27.12 / month (APR 14.9%)
Monthly Payment: £98.04
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £565.00
Total inc. interest: £588.25
Monthly Payment: £50.73
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £565.00
Total inc. interest: £608.65
Monthly Payment: £34.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £565.00
Total inc. interest: £629.52
Monthly Payment: £27.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £565.00
Total inc. interest: £650.85
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £14.11 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

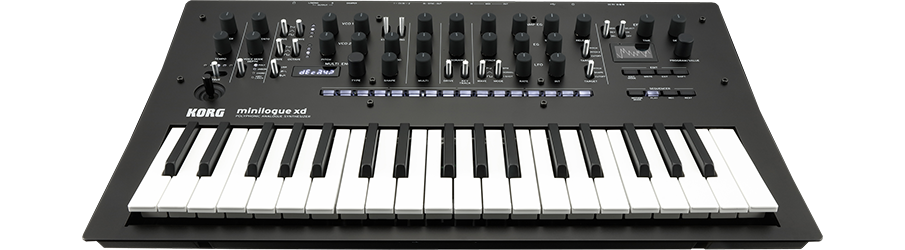

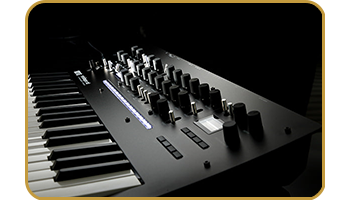

Product Overview An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.

In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.

minilogue xd is a fitting addition to the original groundbreaking minilogue.

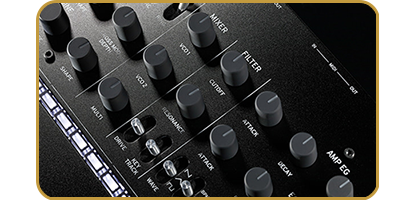

Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis. The analog synthesizer circuit of the minilogue, whose genuine analog sound had a huge impact on the synth world, has been further developed for the minilogue xd.

Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd’s filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.

Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.

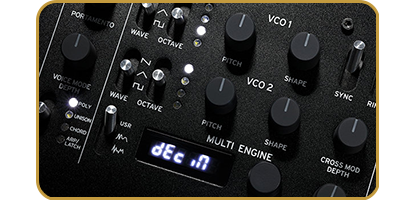

Equipped with a digital multi-engine
The additional sound design possibilities of digital sound are delivered by the multi-engine that's provided as a third oscillator in addition to the two analog VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that's different than analog, and use it at the same time as the analog engine, infinitely expanding the potential of hybrid sound design.

Noise generator
The noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the color of the noise.

VPM oscillator
minilogue xd’s multi-engine features a VPM (Variable Phase Modulation)/FM oscillator with a two-operator structure. It can produce sharp, metallic sounds with complex overtones beyond the possibilities offered by analog systems. With 16 types of oscillator and a SHAPE knob control, you'll be able to create complex sounds intuitively.

User oscillators
User oscillators allow you to load your own oscillator programs that you created or obtained via the internet. There are 16 user slots, as well as one type of morphing wavetable oscillator provided as a preset.

High-quality digital effects
minilogue xd’s high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.

User customization brings out infinite potential
The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software.

What sounds might arise from the fusion of the expanded digital oscillators with analog synthesis? Create original programs, share code, and participate in the user community. You can start with sample code provided by KORG.

Polyphonic step sequencer controlled by 16 buttons
The step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.

A thoughtfully designed interface

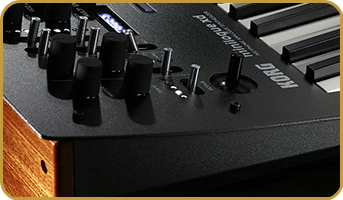

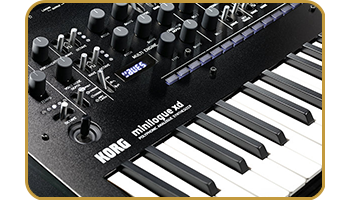

Joystick
Controls pitch bend and modulation depth, etc. A desired parameter can also be assigned to the up/down axis.

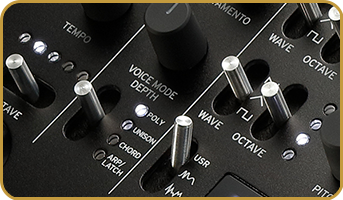

Voice mode
The four voice modes were selected for the minilogue xd.

- POLY: The minilogue xd operates as a four-voice polyphonic synth.
- UNISON: The unit operates as a monophonic synth, with the four voices working in unison.
- CHORD: Chords are produced using one to four voices.
- ARP / LATCH: (ARP) Provides an arpeggiator with up to four voices that can also be used while the sequencer is running / (LATCH) Switches latch on or off.

A voice mode depth knob is also provided, which applies a corresponding effect for each mode.

- POLY: Turning the knob toward the right switches to DUO mode and deepens the detune.
- UNISON: Turning the knob toward the right deepens the detune.
- CHORD: Selects mono or chord type.
- ARP / LATCH: (ARP) Selects the arpeggiator type.

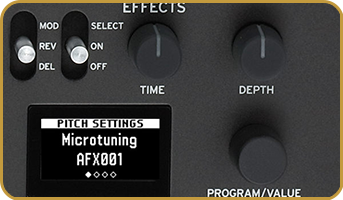

Micro tuning
The minilogue xd is equipped with the micro tuning function featured on the monologue, allowing you to individually adjust the pitch of each key. Built in are 23 preset tunings that include some created by Aphex Twin and Dorian Concept, and users can also create and store six user scales and six user octaves. Start by trying out the preset tunings of famous musicians, and then advance to creating your own original tunings.

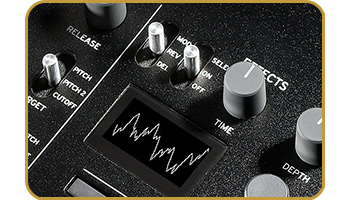

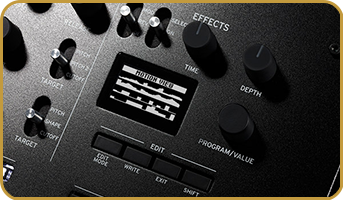

Oscilloscope and motion view display
The organic EL display is now larger, and also provides oscilloscope functionality for you to view sound as the electrical signal's waveform. This makes parameter changes visible in real time, giving you visual feedback that helps you understand how the synthesizer works. The display can also show motion view for visualizing the movement of a stored motion sequence.

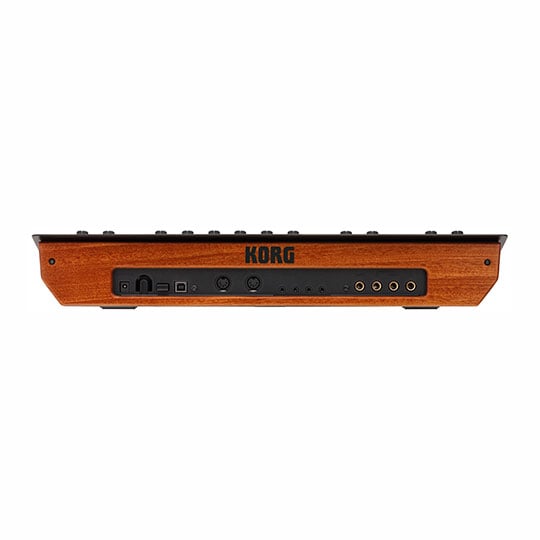

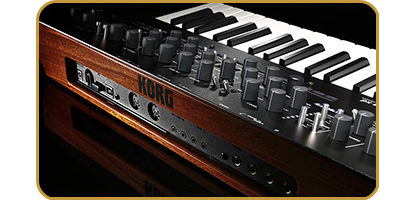

A full complement of input and output jacks

Output is now stereo
A stereo effect unit is provided at the final stage, and the output jacks are now also stereo. Spatial-type effects such as delay, reverb, and chorus will add an even more convincing touch to your thick analog synth sounds and sparkling digital synth sounds.

Damper pedal jack
A damper jack has been added in response to requests from artists and users.

Two CV IN jacks
Two CV IN jacks are provided, with voltage levels of -5V–+5V. In addition to CV/Gate, these can also input modulation signals, allowing you to use external devices to control parameters in the same way as moving the joystick up or down. Features • Keyboard: 37-keys (Slim-key, velocity sensitive)
• Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
• Maximum Polyphony: 4 voices
• Programs: 500 voices (more than 200 preload, 300 user programs). Each program provides a program sort function that includes voice mode settings. Favorite function built in.
• Voice Mode: 4 (POLY, UNISON, CHORD, ARP / LATCH). The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
• Sequencer: 16-step polyphonic sequencer. Motion sequence can be used on up to four parameters
• Main Synthesis Parameters:
- VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- MODULATION: SYNC, RING, CROSS MOD DEPTH
- MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPE
- MIXER: VCO1, VCO2, MULTI
- VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
- AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
- EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
- LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE(BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
• Main effect Parameters:
- EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
• MULTI ENGINE:
- Noise Generator: 4 types
- VPM oscillator: 16 types
- User oscillator: 16 slots
• MOD EFFECTS:
- CHORUS 8 types
- ENSEMBLE 3 types
- PHASER 8 types
- FLANGER 8 types
- USER 8 types
• DELAY
- DELAY 12 types
- USER 8 slots
• REVERB
- REVERB 10 types
- USER 8 slots
• Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
• Display:
- Main Real-time OLED oscilloscope provides visual feedback of parameter changes
- MULTI ENGINE section 7 segments x 6 digit LED display
• Input/Output connectors:
- Headphone jack (Stereo phone jack)
- OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
- CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
- SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
- SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
- MIDI IN jack
- MIDI OUT jack
- USB B jack
- DAMPER jack (half damper is not supported)
• Power Supply: AC adapter (DC9 V)
• Power Consumption: 8 W
• Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
• Weight 2.8 kg / 6.17 lbs.
• Included Items AC adapter
• Accessories (sold separetely):
- SC-MINILOGUE Soft shall case
- SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
- SQ-CABLE-6 Sync cable
- DS-1H Damper pedal
- PS-1 Pedal switch
- PS-3 Pedal switch
Specifications
Product Type Analog Synthesizer
PC Interface N/A
Assignable Faders
Assignable Knobs
Assignable Pads
Keys 37
Wheels
Connectivity (Input)
  • 2 x CV
  • 1 x MIDI
  • 1 x Sync
  • 1 x USB Type B
Connectivity (Output)
  • 2 x 1/4" Unbalanced
  • 1 x 6.3 mm stereo phone jack (Headphones)
  • 1 x MIDI
  • 1 x Sync
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type Retail
