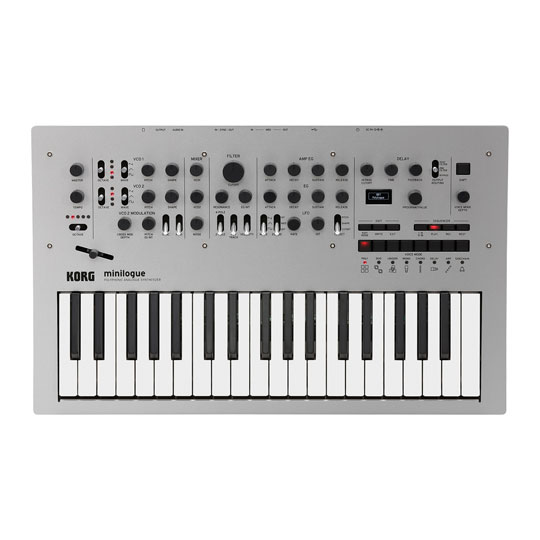

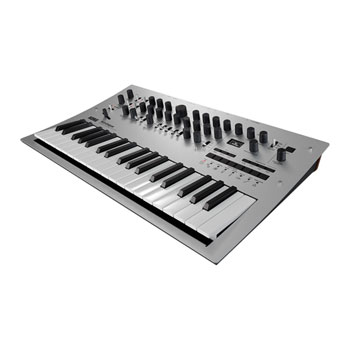

KORG Minilogue Polyphonic Analog Synthesizer

KORG Minilogue Analog Synthesizer, 16-step Automatable Polyphonic Note + Motion Sequencer, Midi/USB, Aluminium, Silver

Thumbnail 1 : KORG Minilogue Polyphonic Analog Synthesizer Thumbnail 2 : KORG Minilogue Polyphonic Analog Synthesizer Thumbnail 3 : KORG Minilogue Polyphonic Analog Synthesizer Thumbnail 4 : KORG Minilogue Polyphonic Analog Synthesizer KORG Minilogue Polyphonic Analog Synthesizer : video thumbnail 1 KORG Minilogue Polyphonic Analog Synthesizer : video thumbnail 2
Scan code: LN69548 Manufacturer code: MINILOGUE
Order in the next 1 hr 18 mins and get it tomorrow
Get it Tomorrow, 25 AprIn stock
From £20.17 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £37.42
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £413.00
Total inc. interest: £449.00
Monthly Payment: £20.17
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £413.00
Total inc. interest: £483.97
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.97 / month (APR 19.9%)
Delivery Options
  • By DPD On 25th Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

KORG - minilogue
Polyphonic Analogue Synthesizer

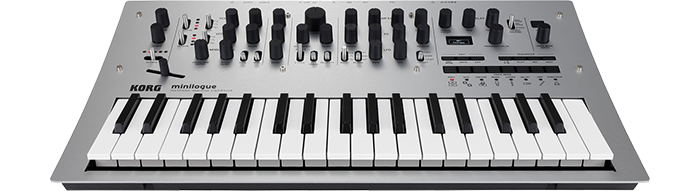

KORG minilogue

next-generation polyphonic analogue synthesizerThe KORG minilogue features an analogue synthesizer circuit that delivers polyphony and full programmability at low cost, which is exactly what musician of today need. With the minilogue, you can experience the powerful sound that's only possible with real analogue, whilst feeling inspired using features such as a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. All of which are seamlessly integrated features that make minilogue as fun and simple to use. It's the next-generation analogue synthesizer for all types of musicians.


8 ModesVoice Modes

4 VoicesMaximum Polyphony

Amazing Features • Fully programmable, with 200 program memories (100 sounds included)
• Automatable 16-step polyphonic note and motion sequencer
• Voice Mode lets you flexibly configure the four voices
• Oscilloscope function shows the waveform visually

True Analogue Sound

KORG minilogue

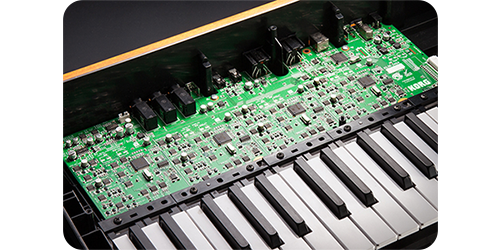

Designed for accessibilityThe minilogue synth circuits are all designed from the ground up, to make a synthesizer experience like no other. Unprecedented in this class, it’s a four-voice polyphonic true-analog synth with an interface created for accessibility. If you're performing live or producing in the studio, the minilogue is the quickest way for the user to explore and integrate real analogue synthesis into any scenario.

The structure is made of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The minilogue's unique wave shape capability allows you to fine tune the oscillators’ harmonics, resulting in the most divine sounds and compositions. The minilogue also features a range of powerful modulation types such as cross modulation, oscillator sync, and ring modulator, along with a delay with a high-pass filter. Powerful sound creation and effective variety are the true hallmarks of an analogue synthesizer.

Polyphony & Presets

KORG minilogue

Instant access to great soundsminilogue goes further than analogue synths in its price range by including 200 preset locations. Select a program for instant access to great sounds, ranging from thick basses to deep pads to stunning polyphonic leads and atmospheric sounds. With a workflow that is very familiar with musicians today, there is no need to have deep synthesis knowledge.

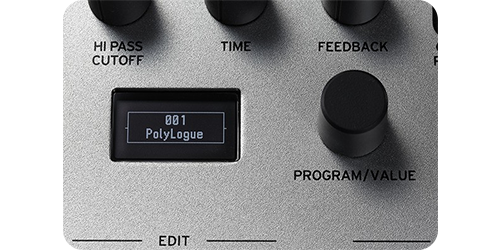

For those who wish to dive deeper into the heart and soul of minilogue’s engine, the minilogue hold 200 programs; with 100 editable factory programs included, and 100 locations working as blank canvases on which to create your next analogue masterpiece. Each preset can also hold a step sequence and delay settings along with the sounds you create.

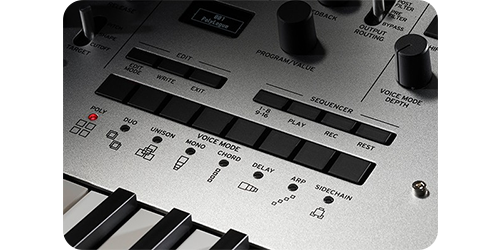

Voice Modes

KORG minilogue

All Bases coveredSelectable voice modes help you freely configure the four voices for performance. The voices can be set to four note polyphony for chords or layered for thick basses and leads. Other modes cover a range of sounds from octave shifted bass chaos to subtle staggered layered triggering.

Featuring eight voice modes: POLY - operates as a four-voice polyphonic synthesizer, DUO - operates as a unison two-voice polyphonic synthesizer, UNISON - operates as an all-unison mono synthesizer, MONO - operates as a mono synth with sub-oscillator, CHORD - produces chords, DELAY - voices 2--4 sound consecutively at a delay following voice 1, ARP - an arpeggiator operates with up to four voices, SIDE CHAIN - when a note sounds, the volume of the preceding voice is lowered.

Effective Synthesis

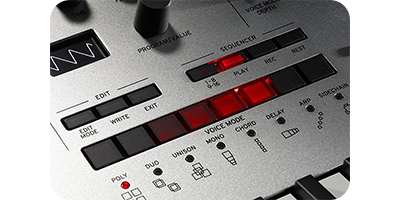

16-step sequencer

16-step sequencerGet creative using the intuitive 16-step sequencer with motion sequence recording possibilities to make your sound truly come to life. The minilogue provides real-time recording with overdubbing, and step recording that lets you record simply by consecutively specifying notes, giving you a fun way to create phrases and performances.

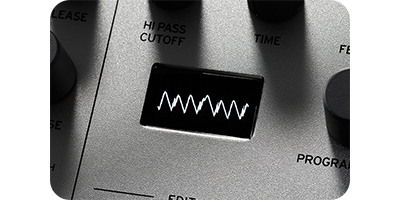

Oscilloscope visualizes the sound

Oscilloscope visualizes the soundThe OLED display will display the waveform as you sculpt your sound. Visual feedback is both helpful and entertaining, and represents a first on a hardware synthesizer.

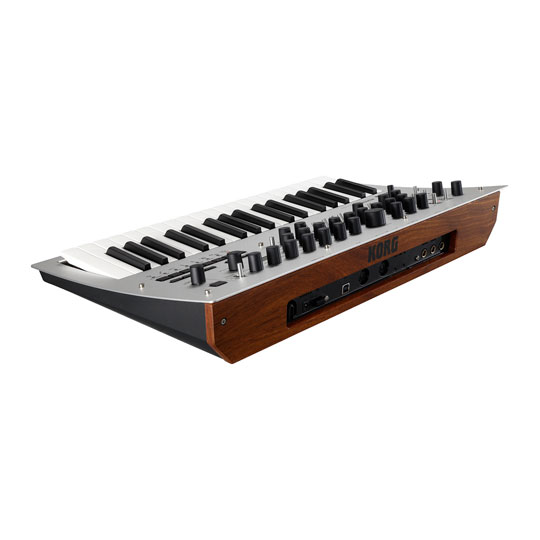

Build quality

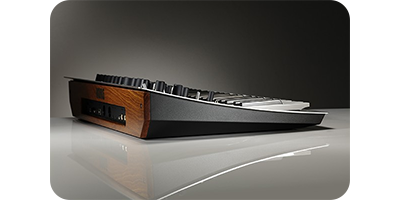

Build qualityThe uniquely curved, sand-blasted 2mm aluminum front panel, metal shaft potentiometers, solid, chassis-mounted metal shaft potentiometers and rubber-coated knobs provide a roadworthy minilogue with a standout look and feel to complement its powerful and dynamic sound creation capabilities.

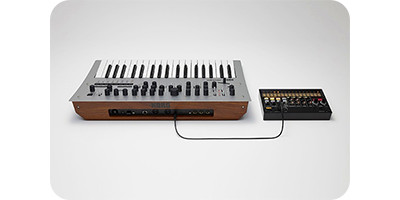

Sync with groove machine

Sync with groove machineAlong with the standard MIDI connectors, the minilogue provides a sync connector that can be easily connected to Korg's groove machines. Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback.

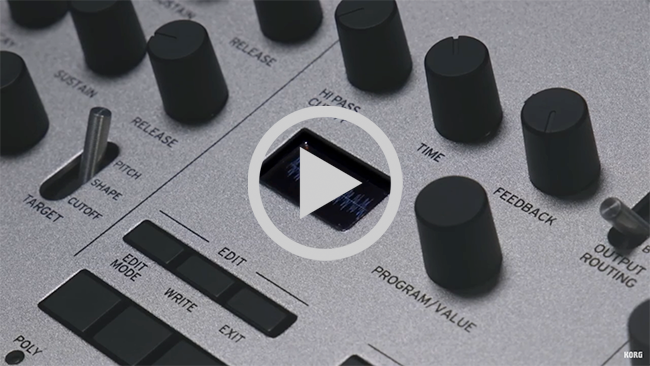

Introducing KORG minilogue

The Tech Spec

Features Specification
Keyboard 37-keys (Slim-key, velocity sensitive)
Sound Generation Analogue synthesis
Maximum Polyphony 4 voices
Program 200 programs (100 Presets / 100 Users)
Each program includes voice mode and sequence data settings
Up to eight favorite programs can be registered
Voice Modes 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
VOICE MODE DEPTH can vary different parameters in each mode
Main Synthesis Parameter VCO: 1Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO: 2Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2 MODULATION: Cross Mod Depth, Pitch EG Int, Sync, Ring
MIXER: VCO1, VCO2, Noise
FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
AMP EG: Attack, Decay, Sustain, Release
EG: Attack, Decay, Sustain, Release
LFO: Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
DELAY: Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
Sequencer 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Controls 41 dedicated panel controls deliver immediate parameter access
A slider can control different parameters for each program
Display Real-time OLED oscilloscope provides visual feedback of parameter changes
Connectors Headphones (6.3mm stereo phone jack)
Output (6.3mm monaural phone jack)
Audio In (6.3mm monaural phone jack)
Sync In (3.5mm monaural mini jack)
Sync Out (3.5mm monaural mini jack)
USB Type B
Power Supply AC adapter (DC9V)
Power Consumption 8 W
Dimensions (W x D x H) 500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
Weight 2.8 kg / 6.17 lbs.
Included Items AC adapter
Product Type Analogue Synthesizer
PC Interface USB 2.0 Type-C
Keys 37
Connectivity (Input)
  • 1 x 6.3 mm monaural phone jack (Ext. Input)
  • 1 x 6.3 mm stereo phone jack (Headphones)
  • 1 x MIDI
Connectivity (Output)
  • 1 x 6.3 mm monaural phone jack (Low)
  • 1 x MIDI
  • 1 x USB Type B
Dimensions (mm)
Misc. Notes
Additional Information
Scan Code LN69548
Model Number MINILOGUE
GTIN 4959112147331
