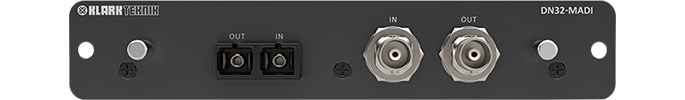

Klark Teknik DN-32 MADI Expansion Card
Klark Teknik - DN-32 MADI, 32-Channel MADI - Behringer X32 or Midas M32
Email me when the availability or price changes
Finance this product
- From £8.97 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
32-Channel MADI Expansion Module
Klark Teknik - DN-32 MADI
up to 32 Bidirectional-ChannelsMADI devices are commonly used in a wide range of professional audio applications such as permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card gives your Midas M32 or Behringer X32 digital console the ability to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.
at a glance
• MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
• Operates up to 500 m over optical fibre link and 100 m over coaxial copper link

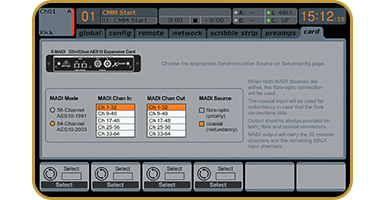

• Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
• Dual-redundant operation with failover from optical to copper connections
• Works either as a MADI clock master or MADI clock slave
• Copper transmission on 75 ohm coaxial BNC connectors
• Up to 32 bidirectional channels @ 48 kHz sample rate
• Optical transmission on SC-Duplex connector
Connectivity & Redundancy
reliable transmissionDN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. Klark Teknik has tested multimode cable connections of 500 metres in length successfully, and distances of up to 2 km may be possible.
Dual BNC connectors are also available for transmission on standard 75-Ohm coaxial cables up to 100 metres in length. When both the optical and coaxial interfaces are utilised, the coaxial I/O serves as a redundant connection, and is automatically activated should the optical connection become unavailable.
Clock Synchronisation & Routing
up to 64 channelsBoth the BNC coaxial and optical-fibre inputs can also be used as the word clock source for your mixing console. Alternately, the coaxial and optical outputs can transmit the console’s internal word clock to external devices.
The DN32-MADI card’s input stream can accommodate up to 64 channels, 32 of which can be used inside your console. 32 of these internal signals can also be transmitted on the MADI output stream, replacing those of the corresponding input channels. This also means the MADI output channels not allocated to the console signals simply pass their corresponding input channels through. This convenient feature enables two consoles to be easily combined using their DN32-MADI cards to offer a total of 64 channels for live sound or recording.
The Tech Spec
| Features | Specification | Type | Dante Expansion Card |
|---|---|
| Compatibility | Midas M32, Behringer X32 |
| Channels | 32 |
| Inputs | 1 x BNC, 1 X Optical |
| Outputs | 1 x BNC, 1 X Optical |
