JWIPC H068 4K Rockchip RK3568 LPDDR4x Android 11 ARM Media Player

JWIPC H068 ARM Platform Media Player

The JWIPC H068 ARM Platform Media Player is a compact, fanless digital signage solution designed for commercial displays, information distribution systems and autonomous devices. Powered by the Rockchip RK3568 quad-core Cortex-A55 processor running at up to 2.0GHz, it combines efficient processing with 4K display output to support digital signage and multimedia applications. With Android 11, integrated graphics and flexible connectivity, the H068 provides a practical platform for commercial display deployments.

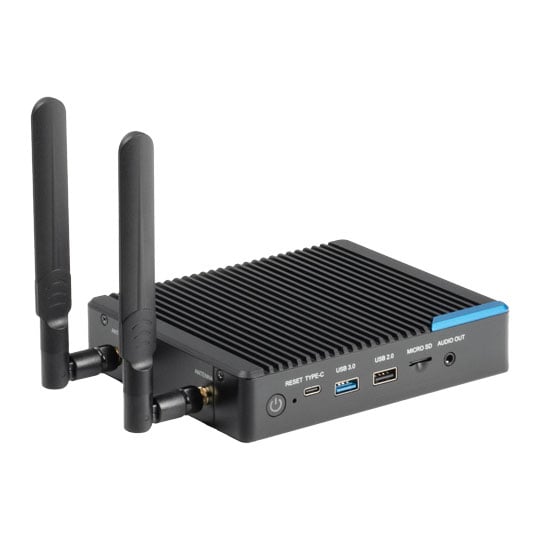

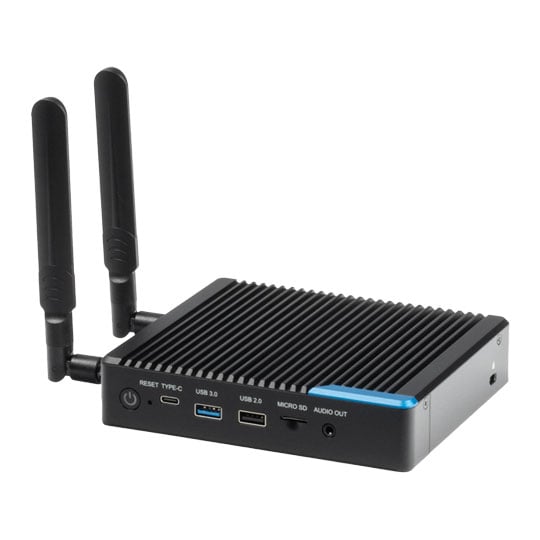

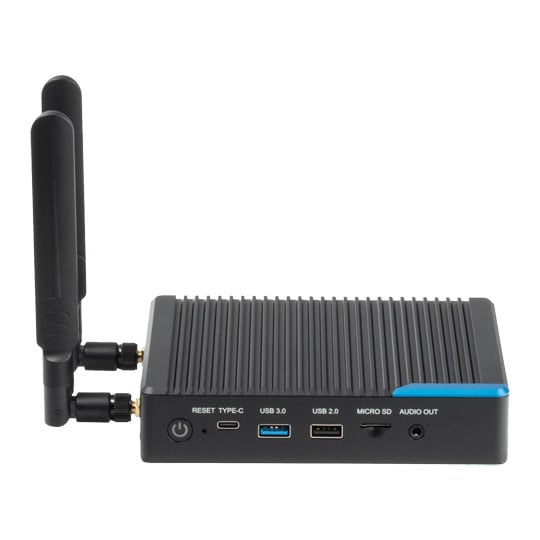

Designed for low-noise operation and flexible installation, the H068 features a fanless cooling system alongside HDMI output, Mini DisplayPort, HDMI input and Gigabit Ethernet connectivity. Its USB ports, RS232 serial interface and MicroSD card slot provide additional options for connecting peripherals and integrating the player into existing signage systems.

Efficient ARM Processing

Built around the Rockchip RK3568 platform, the H068 uses a quad-core ARM Cortex-A55 processor operating at up to 2.0GHz. Its ARM Mali-G52 graphics support display and multimedia workloads, while the combination of processing and graphics capabilities makes the player suitable for digital signage, information systems and embedded commercial applications.

Clear 4K Display Output

The H068 supports HDMI 2.0 output at resolutions up to 4K at 60Hz, enabling detailed visual content to be displayed on compatible screens. A Mini DisplayPort output and HDMI input provide additional display connectivity, supporting integration into a range of commercial AV environments. Dual-display support offers further flexibility for compatible applications.

Fanless, Quiet Operation

Featuring a fanless design, the H068 operates without a cooling fan, helping minimise mechanical noise in environments where quiet operation is important. This design makes it suitable for installations in retail spaces, offices, information kiosks and other commercial settings where unobtrusive hardware is preferred.

Flexible Connectivity and Networking

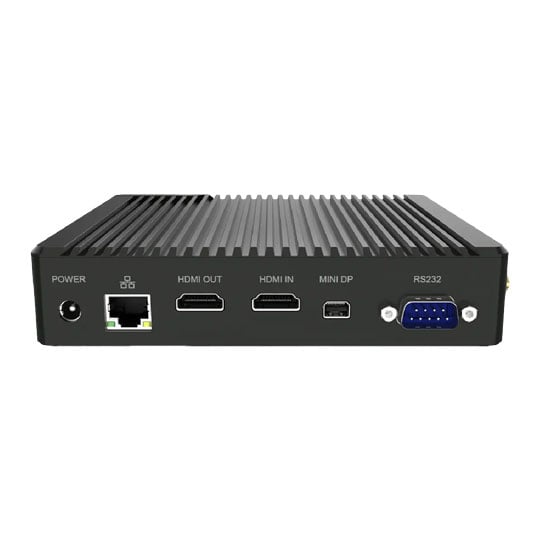

The H068 includes Gigabit Ethernet with an RJ45 connector, Wi-Fi 6 and Bluetooth 5.2 for network and wireless connectivity. Its interfaces include USB 3.0, USB 2.0, USB Type-C, a nine-pin RS232 serial connector, a MicroSD card slot and audio output. HDMI input and output, Mini DisplayPort and Power over Ethernet power-device input support further integration into compatible installations.

Android-Based Digital Signage

Running Android 11, the H068 provides an operating system platform for compatible signage applications and commercial information systems. Its onboard eMMC storage and LPDDR4x memory support the operation of the system and its applications, while watchdog support and real-time clock scheduling provide additional functionality for managed deployments.

• Rockchip RK3568 quad-core Cortex-A55 processor up to 2.0GHz.
• ARM Mali-G52 graphics.
• 4GB LPDDR4x memory.
• 16GB eMMC 5.1 onboard storage.
• Android 11 operating system.
• HDMI 2.0 output supporting up to 4K at 60Hz.
• Mini DisplayPort output and HDMI input.
• Gigabit Ethernet with RJ45 and PoE PD-in support.
• Wi-Fi 6 and Bluetooth 5.2.
• USB 3.0, USB 2.0 and USB Type-C connectivity.
• RS232 serial interface and MicroSD card slot.
• Fanless cooling design.
• Watchdog support and scheduled power control.
