Inter-Tech IP-60 Compact Mini-ITX Case with Integrated PSU

Inter-Tech IP-60 Compact Mini-ITX Case, Integrated Cooling Fins, 2x USB 3.0

Thumbnail 1 : Inter-Tech IP-60 Compact Mini-ITX Case with Integrated PSU Thumbnail 2 : Inter-Tech IP-60 Compact Mini-ITX Case with Integrated PSU Thumbnail 3 : Inter-Tech IP-60 Compact Mini-ITX Case with Integrated PSU Thumbnail 4 : Inter-Tech IP-60 Compact Mini-ITX Case with Integrated PSU
Scan code: LN135885 Manufacturer code: 88887372
Order now and receive it by Monday, 24th June
£69.98
Get it Monday, 24 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

The IP-60 is a case for Mini-ITX mainboards with external power supply and I/O shields in normal height.


Thanks to the closed design and the integrated cooling fins, it is the ideal candidate for a system with passive cooling. In conjunction with the optional IP-3 cooler, CPUs with a TDP of up to 70W can be installed and operated entirely without active fan elements. Alternatively, other CPU coolers up to 43mm in height can also be installed.

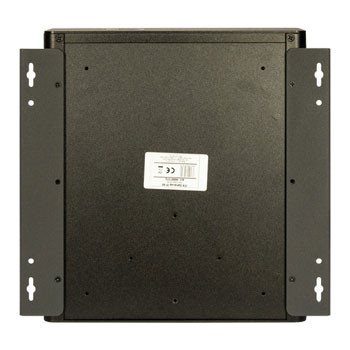

The case can be attached to almost any supporting surface (e.g. on the wall) using the standard mounting brackets, optionally using the additionally available VESA mount behind the monitor or as a standing device with four feet. Data can also be conveniently uploaded via the two integrated USB 3.0 front connections.

Features


• With External PSU
• Compact Mini-ITX housing made of aluminium.
• Integrated cooling fins for heat dissipation.
• Wall mounting via standard rails.
• Two USB 3.0 front ports.

Specifications
Core Chassis Specifications
Case Edition IP-60
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Status LED
  • 1 x Power Button
  • 1 x Power LED
  • 2 x USB 3.0
Drive Bays 2 x 2.5" Internal
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 43 mm
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support Mini-ITX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Construction Materials Aluminium
Dimensions 210 x 77 x 240 (WxHxD mm)
Weight 1.68 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN135885
Model Number 88887372
GTIN 4260455647618
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
