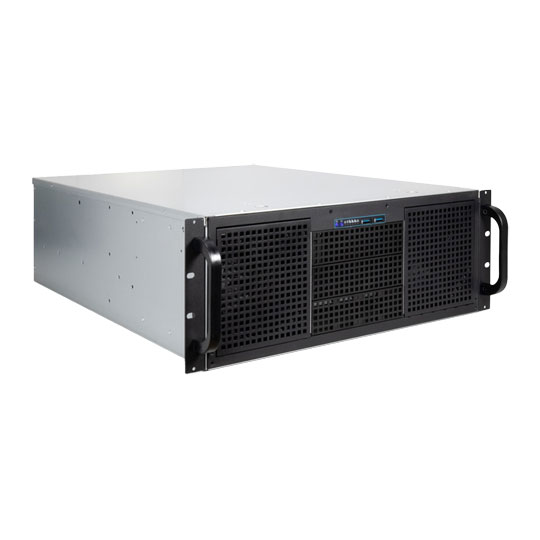

Inter-Tech IPC Server IPC 4U-40255 Server Case

Inter-Tech IPC 4U-40255 Rackmount Server Case, 3x 5.25" Bays, 11x 3.5" Slots, Dual 120mm/80mm Fans, USB 3.0
MORE INFO
MORE INFO

Scan code: LN153856 Manufacturer code: 88887304

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £9.98 Collect your parcel from your newsagents, petrol stations and convenience stores
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Suggested Alternatives

Product Overview

IPC 4U-40255

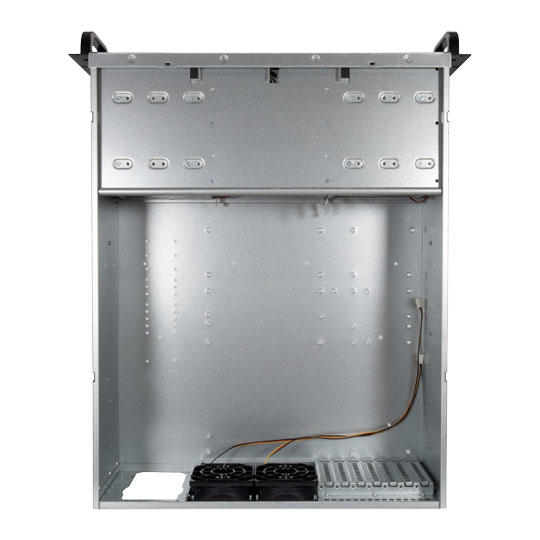

The IPC 4U-40255 offers an ideal solution for building a cost-effective yet versatile server system. Crafted with high-quality materials and precision workmanship, this case is designed for adaptability and reliability. Its modular design allows for the removal of the mounting frame, enabling the installation of up to six additional 5.25" external drives, with three bays available by default. Internally, it supports a maximum of 11 x 3.5" or 4 x 2.5" hard drives, providing extensive storage options. Cooling is handled by two 120mm and two 80mm fans, ensuring efficient thermal management. With dual USB 3.0 ports on the front panel and a lid secured by snap-in closures, the IPC 4U-40255 is a well-rounded choice for scalable server builds.


Features

• Supports up to 3 x 5.25" external drives and 11 x 3.5" or 4 x 2.5" internal drives.

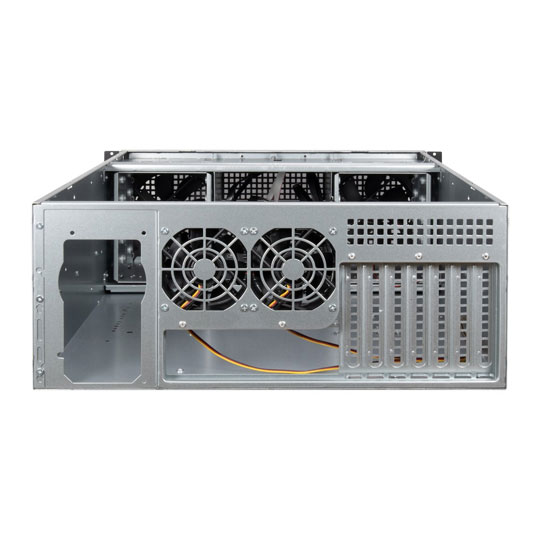

• Includes two 120mm and two 80mm fans for optimal airflow.
• Removable mounting frame for customization and easy access.
• Features two USB 3.0 front ports for quick connectivity.
• Snap-in lid closures for easy maintenance and secure operation.

Specifications
Core Chassis Specifications
Case Edition IPC 4U-40255
Case Form Factor 4U Rackmount
Motherboard Form Factor
  • ATX
  • E-ATX (Upto 12" x 11")
  • MicroATX
  • Mini-ATX
  • Mini-ITX
  • SSI CEB
  • SSI EEB
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Power Switch
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" Internal
  • 11 x 3.5" Internal
  • 3 x 5.25" External
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120mm
  • 6 x 40mm
  • 2 x 80mm
Fans Included
  • 2 x 120mm
  • 2 x 80mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 150 mm
Max GPU Card Length 330 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location Bottom Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour Black/ Metal
Chassis Construction Materials Metal
Dimensions 485 x 177.8 x 595 (WxHxD mm)
Weight 11.46 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN153856
Model Number 88887304
GTIN 4260455645935
