Scan code: LN107441 Manufacturer code: CD8069504449000

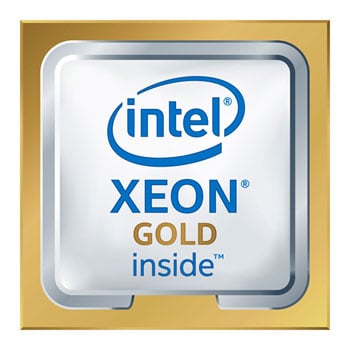

Intel 16 Core Xeon Gold 6226R 2nd Gen Scalable Server OEM CPU/Processor

Intel Xeon Gold 6226R, S 3647, Cascade Lake-SP, 16 Core, 32 Thread, 2.9GHz, 3.9GHz Turbo, 22MB, 48 Lane, 150W, OEM

Scan code: LN107441 Manufacturer code: CD8069504449000
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Workload-Optimized

Intel® Xeon® Gold processors offer up to 28 cores/56 threads, alongside memory subsystem enhancements with support for Intel® Optane™ DC persistent memory (on select processors), DDR4-2933 MT/s and 16Gb DIMMs per socket for increased performance.


Foundation for AI

Intel® Xeon® Scalable processors are built specifically for the flexibility to run complex AI workloads on the same hardware as your existing workloads; and 2nd Gen Intel® Xeon® Scalable processors take embedded AI performance to the next level with new AI acceleration, including new Intel® Deep Learning Boost (Intel® DL Boost).


Advanced Hardware-Enhanced Reliability

Experience the difference Intel delivers advanced hardware-enhanced reliability, availability, and serviceability (Advanced RAS) available in the Intel® Xeon® Gold processor-based solutions.


Intel® Deep Learning Boost (Intel® DL Boost) with VNNI

Intel® Xeon® Scalable processors are built specifically for the flexibility to run complex AI workloads on the same hardware as your existing workloads; and 2nd Gen Intel® Xeon® Scalable processors take embedded AI performance to the next level with new AI acceleration, including new Intel® Deep Learning Boost (Intel® DL Boost).


Intel® Optane™ DC Persistent Memory

A new foundation for performance begins with support for Intel’s breakthrough Intel® Optane™ DC persistent memory, delivering up-to 36TB of system-level memory capacity when combine with traditional DRAM, helping to transform critical data workloads – from cloud and databases, to in-memory analytics, and content delivery networks, now supported by select 2nd Gen Intel® Xeon® Scalable processors.


Intel® Infrastructure Management Technologies (Intel® IMT)

A framework for resource management, Intel® Infrastructure Management Technologies (Intel® IMT), combines multiple Intel capabilities that support platform-level detection, reporting, and configuration. This hardware-enhanced monitoring, management, and control of resources can help enable greater data center resource efficiency and utilization.

Features
Cores: 16.
Threads: 32.
Base Frequency: 2.9GHz.
Turbo Frequency: 3.9GHz.
Cache: 22MB.
TDP: 150W.
Specifications
Model & Type
CPU Type Intel Xeon Gold
CPU Model 6226R
Socket 3647
Architecture Cascade Lake-SP (Purley)
Manufacturing Process 14 nm
Cores & Clocks
No. of Cores 16 Core
No. of Threads 32
Core Ratio 29 x
Clock Speed 2.9 GHz
Turbo Speed 3.9 GHz
Turbo Boost Max Technology 3.0 Speed N/A
Unlocked Core Multiplier No
Unlocked Full Range Base Clock (B-Clock) No
Bus Speeds
FSB Speed N/A
QPI Speed N/A
UPI Links/Speed N/A
DMI Speed N/A
Memory Support
Max. Memory Size 1024 GB
Max. Memory Speed DDR4 - 2933
Max. Memory Channels 6 (Hex Channel)
ECC Memory Yes
Intel Optane Memory No
Intel Optane DC Persistent Memory Yes
Lanes & Features
Intel Deep Learning Boost Support Yes
Scalability Upto 2 Sockets/Processors
Node Controller Support No
PCIe Version 3.0
PCIe Lanes 48
Integrated Graphics
Features Integrated Graphics No
Integrated Graphics Model/Type N/A
iGPU Cores
iGPU Base Clock N/A
iGPU Boost Clock N/A
iGPU Max. Resolution N/A
CPU Cache
L1 Cache
L2 Cache
L3 Cache 22MB
Intel® Smart Cache N/A
Thermals & Package
Max. TDP 150W
Thermal Specification 85 °C
Heatsink/Cooler Included? Not Included, Sold Separately
Package Type OEM
Note
Additional Information
Scan Code LN107441
Model Number CD8069504449000
