Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit

Intel NUC8i7HVK Hades Canyon VR Gaming NUC, i7-8809G w/ Radeon RX Vega M GH Graphics, 4GB HBM2, DDR4, 2x M.2, Barebone

Thumbnail 1 : Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit Thumbnail 2 : Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit Thumbnail 3 : Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit Thumbnail 4 : Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit Unlocked Intel i7 Hades Canyon Radeon Vega VR Gaming NUC Mini PC Kit : video thumbnail 1
Scan code: LN88364 Manufacturer code: BOXNUC8I7HVK3
£791.99
From £33.00 / month (APR 0%)
Monthly Payment: £132.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £791.99
Total inc. interest: £791.99
Monthly Payment: £66.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £791.99
Total inc. interest: £791.99
Monthly Payment: £44.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £791.99
Total inc. interest: £791.99
Monthly Payment: £33.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £791.99
Total inc. interest: £791.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £19.78 / month (APR 15.9%)
Delivery Options
  • By DPD On 16th Dec To 18th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Hades Canyon Intel i7 Barebone Mini PC with Radeon Vega Graphics

Intel i7 Hades Canyon Nuc

Dream with your eyes openExperience extreme with the latest Intel NUC kit, completely unlocked and ready for overclocking so you have the high performance you need for immersive virtual reality adventure. Built with an unlocked 8th gen Intel Core i7 processor ready for overclocking and Radeon RX Vega M graphics so you can see every single movement clearly, the Intel NUC8i7HVK kit is optimized to give you every GHz of performance you need for extreme experiences in the virtual world. There’s room for up to 32GB of DDR4 RAM and two M.2 slots for SSDs so you can store data locally and load maps fast.

Core i7-8809GCPU

Radeon RX Vega M GHGPU

2 x (2280) M.2M.2 Storage

2 x SO_DIMM SlotsDRAM - DDR4

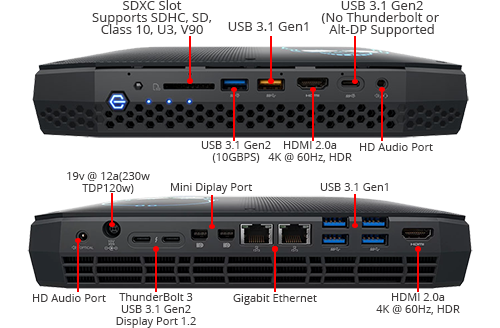

Extreme Connectivity for Controllers and Peripherals

Hades Canyon NUC Ports

The New Standard in Compact Gaming With front and rear HDMI* ports, two Mini DisplayPort* ports, and two Thunderbolt™ 3 ports, the NUC8i7HVK Mini PC can handle up to five 4K displays or one 5K display for games or creations in living color. The six USB ports, one USB-C port, and the two Thunderbolt 3 ports assure fast data transfer and enough connectivity ports for controllers, graphics tablets, scanners, and music keyboards, along with a QWERTY keyboard, for the ability to create more amazing.

Design Optimized in the Smallest Package Available

Intel CPU Mini PC

The Hades Canyon can support up to six displays at 60Hz The Intel® NUC8i7HVK Mini PC packs all the performance of a desktop tower in a device that you can tuck behind a display. The system is fast as Hades for slaying opponents or task swapping with ease between CAD workloads and 3D jobs. The skull on the lid can be customized to light up RGB—or not—so the Mini PC is at home in the office, the living room, or at a LAN party. And its small size means the system can integrate discretely in any location and be moved without a hand truck.

VR Gaming and Workstation-Level Performance

Intel RGB NUC

Expand to a total of 32GB DDR4 Memory The Hades Canyon NUC is easily one of the most powerful PCs in its class available today which utilises Intel’s latest Quad Core Hyper-Threaded 8th Gen Core i7 Processor with integrated Radeon RX Vega M graphics which features 4GB of dedicated HBM2 VRAM. The memory is upgradable to 32GB and is more than enough for even the most memory hungry applications today. The top panel features customizable RGB LED illumination for a level of style in keep with the very latest gaming towers. The front HDMI 2.0 port is perfectly placed for easy connectivity to the latest high-performance VR Headsets such as the HTC Vive & the Oculus Rift.

Specifications
Edition Intel® NUC Kit NUC8i7HVK
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i7
CPU Model 8809G
Architecture Kaby Lake G
Manufacturing Process 14 nm
Unlocked CPU Yes
Core Quad Core
No. of Threads 8
Clock Speed 3.1 GHz
Burst Frequency 4.2 GHz
CPU Cache 8MB
CPU Cooler Air Cooled
Max. TDP 100 W
CPU Socket Integrated CPU
Chipset System-on-Chip
Motherboard Form Factor UCFF (5.5" x 8")
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 630
Discrete GPU Yes
Discrete GPU Chipset Radeon RX Vega M GH Graphics
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 24 Compute Units (1536 Cores)
GPU Tensor Cores N/A
Base GPU Speed 1063 MHz
Max. GPU Speed 1190 MHz
GPU Memory Size 4GB
GPU Memory Type HBM2
GPU Memory Clock
GPU Memory Bus 1024 Bit
Discrete GPU Cooler Air Cooled
Multi-GPU Configuration No
Max. GPU Resolution 4096x2160 @ 60Hz
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe/SATA
  • 1 x M.2, 22-80, PCIe/SATA
SATA M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays N/A
Backplane I/O
RAID Support RAID-0/RAID-1
Internal I/O
  • 1 x CEC Connector
  • 1 x Front Panel Connector
  • 2 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Dual Band Wireless-AC 8265 Card + BT4.2
  • 1 x Intel® I210AT (Gigabit LAN)
  • 1 x Intel® I219LM (Gigabit LAN)
Front Panel
  • 1 x HDMI 2.0a
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 1 x SDXC Card Reader with UHS-I Support
  • 1 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Back Panel
  • 1 x Combo Speaker/TOSLINK Optical Jack
  • 1 x DC-In Jack
  • 1 x HDMI 2.0a
  • 2 x Mini DisplayPort 1.2
  • 2 x RJ-45
  • 4 x USB 3.0
  • 2 x USB 3.1 Gen2 Type-C/Thunderbolt3
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 230 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 221 x 39 x 142 (mm WxHxD)
Weight
Includes 1 x VESA Mounting Plate
Notes
Additional Information
Scan Code LN88364
Model Number BOXNUC8I7HVK3
GTIN 5032037109727
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
Loading Please Wait

Please wait . . .

Reviews
Intel NUC8i7HVK Hades Canyon VR Gaming NUC, i7-8809G w/ Radeon RX Vega M GH Graphics, 4GB HBM2, DDR4, 2x M.2, Barebone is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Overpowered mini PC Runs AAA titles no bother, no lag/latency issues at all. (Above 60 easy) No heat issues at all while gaming 6/8 hours. Have not done any editing/video editing. Easy to install memory and storage inside of the NUC. Make sure you have the right sized screw head for the internal screw when trying to install the ram etc as you may thread it like I did lol....comes with spare screws etc so don't worry. (It does tell you the screw size inside) Led skull is amazing, can't wait for mods. Make sure you use a usb 3.0/3.1 or external CD player to set up windows 10. (No usb 2.0 headers) Back of case is a little flimsy, io shield type thing. ( feels well build so don't worry) You at least need 16gb of ram if for gaming in general. (My opinion as running comms(skype) and music while playing games may strain your memory, that's my advice for any pc) I recommend the Hades Canyon, It's power/size and appearance makes this a BEAST. Before I forgot you could easy travel with this on trains etc if they have a power supply as it comes with a mount for a monitor ( buy yourself a small monitor and travel mouse/keyboard and you have got a winner!!!
