End Of Life
Scan code: LN128949 Manufacturer code: RNUC12WSKI70000

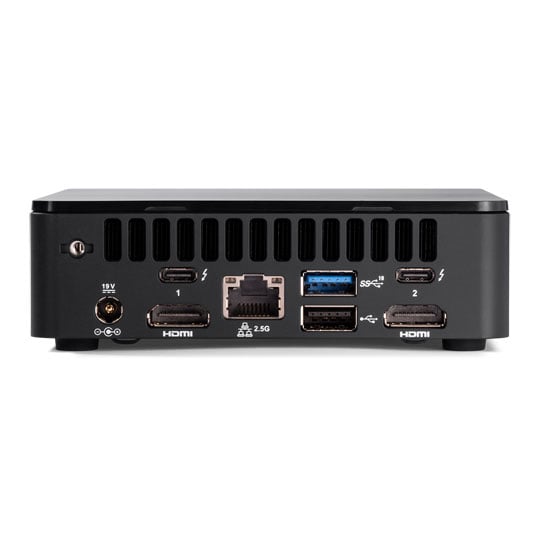

Intel Core i7 Wallstreet Canyon NUC 12 Slim Mini PC Kit

Intel NUC12WSKi7 Wallstreet Canyon Slim NUC, i7-1260P, Intel Iris Xe Graphics, DDR4, 3x M.2, PCIe Gen4,TB4, Barebone Kit

Thumbnail 1 : Intel Core i7 Wallstreet Canyon NUC 12 Slim Mini PC Kit Thumbnail 2 : Intel Core i7 Wallstreet Canyon NUC 12 Slim Mini PC Kit Thumbnail 3 : Intel Core i7 Wallstreet Canyon NUC 12 Slim Mini PC Kit
Scan code: LN128949 Manufacturer code: RNUC12WSKI70000
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Powerful Performance, Perfect Fit

Intel® NUC 12 Pro Mini PCs, Kits, and Boards raise the bar for performance and connectivity in a 4x4 device for productivity, collaboration, and edge compute. 12th Gen Intel® Core™ processors—plus up to 64GB dualchannel memory and massive SSD capacity—drive enterprise-class performance in a pint-sized PC. Collaboration is faster and easier than ever with lightning-fast wired and wireless connectivity options. Select SKUs come with Intel vPro® technology for remote manageability, hardware-enhanced security features, and platform stability to help businesses cut IT costs and boost uptime. The systems are built to deliver great experiences at the edge, with their small size, numerous ports front and back, dual LAN expansion module (select SKUs), and these added features:
• Intel Watchdog Utility: Monitors and can automatically restart applications.
• Display emulation: Enables emulation of displays for one or both HDMI ports when a display is not attached or is temporarily disconnected.
• Client management interface: HDMI CEC can be queried and configured via the WMI interface.

Every Intel® NUC 12 Pro Mini PC, Kit, and Board is qualified for 24x7 operation and designed to last with a three-year warranty from Intel. For performance, connectivity, and reliability in a small footprint, these 4x4s are tough to beat.

Features

• Up to Quad Extended Displays.
• M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD.
• M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0 and SATA SSD expandability.
• Intel® i225 10/100/1000/2500 Mbps RJ45 Ethernet (i225-LM on vPro SKUs; i225-V on non-vPro SKUs).
• 2nd Intel® i225-LM Ethernet and 2 x additional USB 2.0 ports on expansion module (select SKUs only).
• Intel® Wi-Fi 6E AX211 vPro (i7 vPro and i5 vPro kits), non-vPro (other kits) on M.2 slot.
• Dual-channel DDR4-3200 SODIMMs, 1.2V, 64GB max.
• Discrete TPM 2.0 (i7 vPro and i5 vPro SKUs only).
• SDXC card reader with SD Express support (expansion module on select Mini PC SKUs only).
• Fast Wireless charging (15W) non-slip lid (select SKUs only).
• 2 x front and 1 x rear USB 3.2 Gen 2 type A ports.
• 1x rear type A and 2 x internal USB 2.0 headers (all USB ports with individual USB power control).
• 3.5mm front stereo headset jack.
• Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports.
• Front panel header (with Vcc5/1A, 5Vsby2A, 3.3Vsby/1A).
• Qualified for 24x7 operation.
• Delayed AC start; Auto CMOS reset; DC transient voltage suppression.
• Display emulation (headless display, virtual display, persistent displays) via HDMI.
• 12 – 20VDC ±5% DC input on rear jack, internal 2x2 power connector, with OVP/UVP.
• Matte textured chassis, replaceable lid, Kensington lock with base security, Cable locking arm.
• Compatible with various Linux distros.
• Individual retail box packaging.
