Hot Seller
Scan code: LN91944 Manufacturer code: BOXNUC8I5BEH3

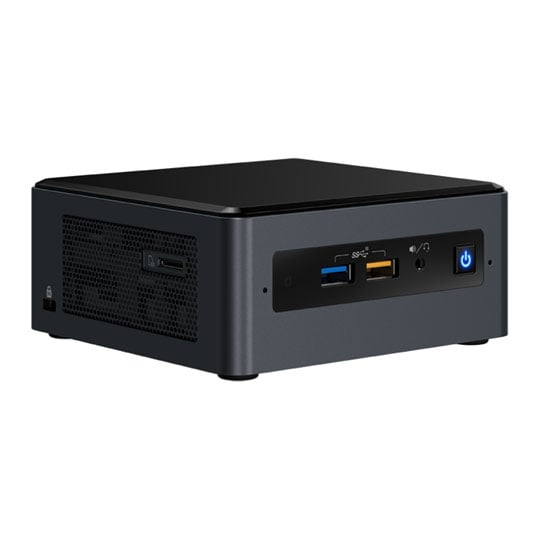

Intel Quad Core 8th Gen i5 Tall NUC Barebone Mini PC Kit

Intel NUC Kit, NUC8I5BEH, i5-8259U, DDR4, M.2, 2.5" SATA3, Iris Plus Graphics 655, USB 3.1 Gen2, Thunderbolt3, Barebone

Free Bullguard Internet Security 2019 3 User/1 year Worth 19.99 - LN 90580
Thumbnail 1 : Intel Quad Core 8th Gen i5 Tall NUC Barebone Mini PC Kit Thumbnail 2 : Intel Quad Core 8th Gen i5 Tall NUC Barebone Mini PC Kit Thumbnail 3 : Intel Quad Core 8th Gen i5 Tall NUC Barebone Mini PC Kit Thumbnail 4 : Intel Quad Core 8th Gen i5 Tall NUC Barebone Mini PC Kit
Scan code: LN91944 Manufacturer code: BOXNUC8I5BEH3
£374.99
From £18.00 / month (APR 14.9%)
Monthly Payment: £65.07
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £374.99
Total inc. interest: £390.42
Monthly Payment: £33.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £374.99
Total inc. interest: £403.97
Monthly Payment: £23.22
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £374.99
Total inc. interest: £417.82
Monthly Payment: £18.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £374.99
Total inc. interest: £431.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.37 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

The Intel® i5 NUC Kit: Configure your own Mini PC

Intel i7 Nuc Kit

Grab Every GHz of Performance for Gaming & Content CreationGet ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with an 8th generation Intel® Core™ i5 processor. The latest generation Intel NUC kit lets you or your customers build the exact system they want. From choosing memory options to storage configurations, the benefit of building up an Intel NUC kit is the ability to completely customize the kit for a specific usage. Whether editing photos, streaming media, or setting up a second PC, the Intel® NUC8i5BEH Mini PC kit delivers the features people want in a size that fits easily into any lifestyle and any room in the house or office.

Core i5-8259UCPU

Intel Iris Plus Graphics 655GPU

1 x M.2 2242/2280 / 1 x 2.5" Storage

2 x SO-DIMM 2400MHzDRAM - DDR4

Who Says Small isn’t Powerful?

Intel CPU Mini PC

Think You Know What Small Can Do? Think Again In a footprint that’s almost zero, especially when compared with a tower, this Intel NUC Mini PC kit can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned anywhere from mounting it behind your monitor to hidden discretely in an entertainment centre. Moreover, with improved cooling, fan noise is minimal—so it doesn’t sound like there’s a PC in the living room if the Intel NUC Mini PC is used for gaming.

Extreme Connectivity for all your Peripherals

The New Standard in Compact Computing The Intel® NUC8I5BEH Mini PC kit has a chassis that is a connectivity powerhouse. It comes with Thunderbolt™ 3 which supports up to 40 GBps of data transfer and four USB 3.1 ports to bolster productivity, as well as room enough for peripherals. There’s also room in for an M.2 SSD, and the kit comes with two additional USB ports via 1x4 internal headers, an HDMI* 2.0a port for 4K displays, and DisplayPort* 1.2 via USB-C. With the ability to have triple displays in 4K, photos, videos, and streaming media are all picture perfect. The kit also allows for a 2.5" HDD and is Intel® Optane™ memory ready. By coupling a 2.5" HDD and Intel® Optane™ memory you can improve performance dramatically with up 1.4x2 faster media loading, opening large media files 3x4 faster, and completing daily tasks up to 2x5 faster.

NUC 8 Ports

1 8th Gen Intel® i5-8259U CPU  2 Iris® Plus Graphics 655  3 Two DDR4 SO-DIMM sockets (up to 32GB, 2400MHz)
4 SATA3 Port connection for 2.5" SSD/HDD  5 Support for a 42 or 80mm M.2 SSD   6 Intel Optane memory ready (up to 32GB)
7 Intel Dual Band Wireless AC9560 and Bluetooth 5.0  8 Back Panel DC power connector (12-19V)   9 HDMI 2.0a   10 Intel Gigabit LAN
11 Two USB 3.1 ports on the back panel   12 Thunderbolt™ 3 USB-C port providing DisplayPort 1.2 or USB 3.1 gen 2
13 Kensington lock support   14 Support for user-replaceable third-party lids   15 Micro SD card slot
16 Consumer infrared sensor   17 Two USB 3.1 Ports   18 Headphone / Mic Jack   19 Power   20 Dual-array front microphones

Specifications
Edition Intel NUC Kit NUC8i5BEH
Form Factor Intel NUC (Tall)
CPU Included Yes
CPU Type Intel Core i5
CPU Model 8259U
Architecture Coffee Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 2.3 GHz
Burst Frequency 3.8 GHz
CPU Cache 6MB
CPU Cooler Air Cooled
Max. TDP 28 W
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC8i5BEB
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included RAM Memory Not Included - Please Buy Separately
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Plus Graphics 655
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 48
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 1050 MHz
GPU Memory Size 128MB
GPU Memory Type eDRAM
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 4096x2304 (4K) @60Hz
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 22-30 (Occupied by WiFi Card)
  • 1 x M.2, 22-42/80, PCIe Gen3/SATA
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type Storage Drive Not Included - Please Buy Separately
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
Backplane I/O
RAID Support RAID-0/RAID-1
Internal I/O
  • 1 x CEC Connector
  • 1 x Front Panel Connector
  • 1 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
Front Panel
  • 1 x Consumer Infrared Rx Sensor
  • 1 x HDD Activity LED
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-A (w/ Quick Charging)
Back Panel
  • 1 x DC-In Jack
  • 1 x HDMI 2.0a
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader (UHS-I)
  • 1 x RJ-45
  • 2 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C/Thunderbolt3
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Gunmetal
Dimensions 112 x 51 x 117 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN91944
Model Number BOXNUC8I5BEH3
GTIN 5032037133777
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
Loading Please Wait

Please wait . . .

Reviews
Intel NUC Kit, NUC8I5BEH, i5-8259U, DDR4, M.2, 2.5" SATA3, Iris Plus Graphics 655, USB 3.1 Gen2, Thunderbolt3, Barebone is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Powerful, compact and feature rich mini-PC Ideal as either a desktop replacement or a HTPC (with infrared remote capability and CEC built in), this Intel NUC is a powerful mini-PC with quad core hyperthreading i5 processor and plenty of up-to-date ports (4 x USB B Gen 2, Thunderbolt 3). As with previous NUCs, it's a piece of cake adding memory and an SSD, so it can be up and running in no time at all. Intel Visual BIOS makes it easy to configure, and comprehensive driver support provided by Intel is a definite bonus. Highly recommended.
Date published: 2019-04-24
Rated 5 out of 5 by from Great device in such small footprint Paired with 16GB of RAM (CT2K8G4SFS8266) and WD Black SN750 500GB of NVMe storage and the Ubuntu 18.10 flies with nearly instant feedback at desktop clicks. Also have a 126GB of SATA SSD but not actively used. Compared with a Mac Mini 2012 you can hear the fan from time to time but this NUC is also much more powerful.
Date published: 2019-04-06
