Scan code: LN80072 Manufacturer code: BOXNUC7I5BNK

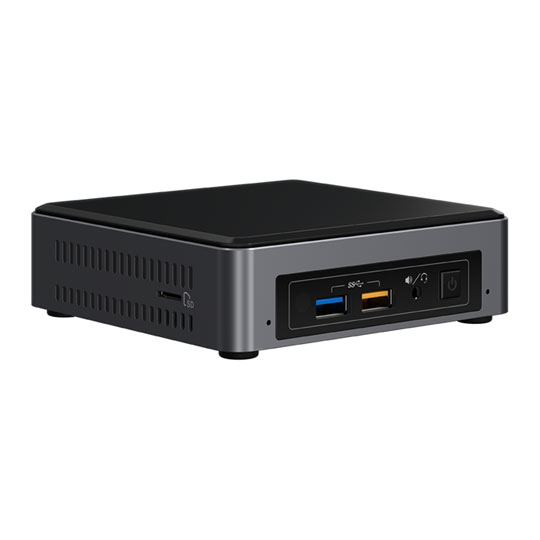

Intel i5 Slim Baby Canyon NUC NUC7I5BNK Thunderbolt3 Barebone Kit

Intel NUC Barebone Kit, i5-7260U, DDR4, M.2, GbE, WiFi/BT, Intel Iris Plus Graphics 640, Thunderbolt 3

Thumbnail 1 : Intel i5 Slim Baby Canyon NUC NUC7I5BNK Thunderbolt3 Barebone Kit Thumbnail 2 : Intel i5 Slim Baby Canyon NUC NUC7I5BNK Thunderbolt3 Barebone Kit Thumbnail 3 : Intel i5 Slim Baby Canyon NUC NUC7I5BNK Thunderbolt3 Barebone Kit Intel i5 Slim Baby Canyon NUC NUC7I5BNK Thunderbolt3 Barebone Kit : video thumbnail 1
Scan code: LN80072 Manufacturer code: BOXNUC7I5BNK
There are 6 people viewing this product
£326.99
From £15.70 / month (APR 14.9%)
Monthly Payment: £56.74
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £326.99
Total inc. interest: £340.45
Monthly Payment: £29.36
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £326.99
Total inc. interest: £352.26
Monthly Payment: £20.25
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £326.99
Total inc. interest: £364.33
Monthly Payment: £15.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £326.99
Total inc. interest: £376.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.17 / month (APR 15.9%)
Delivery Options
  • By DPD On 20th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The Intel® NUC Kit NUC7i5BNK Gives You the Performance to Turn the Intel NUC into A Powerhouse of Productivity and Play

Get ready for truly responsive performance. The newest member of the Intel® NUC family is built with a dual-core 7th generation Intel® Core™ i5 processor. The Intel NUC Kit NUC7i5BNK gives you the performance to turn the Intel NUC into a powerhouse of productivity and play, running analytics and working late into the night, or streaming your favourite movies and music to unwind at the end of your day.

The slim Intel NUC7i5BNK comes with an M.2 slot for a lightning fast SSD.

New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i5BNK has some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours. With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage.

Intel® Iris™ Plus Graphics and Thunderbolt™ 3
Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better clarity, letting you see data visualizations or on screen text in brilliant definition. The Intel NUC7i5BNK can connect up to three 4K monitors so you can spread your work out across screens. The kits also come with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds for your intensive data needs and has built-in 10 GbE for networking with another Thunderbolt 3 system.

Cut The Cords, Not The Performance
Each kit comes with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.

INTEL® NUC: Go small, get big. Features • 7th generation Intel® Core™ i5-7260U processor.
• Intel® Iris™ Plus Graphics 640.
• Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz).
• M.2 slot with flexible support for a 42 or 80 mm M.2 SSD.
• Intel® Dual Band Wireless-AC 8265 and Bluetooth* 4.2.
• Back panel DC power connector (12–19V).
• One full-size HDMI* 2.0 display port supporting 8 channel audio (7.1 surround sound).
• Intel® Gigabit LAN.
• Two USB 3.0 ports on the back panel.
• Thunderbolt™ 3 port with support for USB* 3.1 gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt.
• Kensington lock support.
• Support for user-replaceable third-party lids.
• Micro SD card slot.
• Consumer infrared sensor.
• Two USB 3.0 ports (including one charging port) on the front panel.
• Front panel headphone/microphone jack.
• Front panel power button.
• Dual-array front microphones.
• Multi-colour front panel LED ring.
Specifications
Edition NUC7I5BNK
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i5
CPU Model i5-7260U
Architecture
Manufacturing Process
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.2 GHz
Burst Frequency 3.4 GHz
CPU Cache
CPU Cooler Air Cooled
Max. TDP
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor Intel NUC
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Plus Graphics 640
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots 1 x M.2, 2242/2280, PCIe/SATA
SATA M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays N/A
Backplane I/O
RAID Support Not Supported
Internal I/O
  • 1 x AUX_PWR header
  • 1 x Consumer Electronics Control header
  • 1 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (867Mbps)
Front Panel
  • 1 x Dual-array Microphones
  • 1 x Headphone/Mic Combo
  • 1 x Infrared Sensor
  • 1 x Multi-colour Front Panel LED Ring
  • 1 x Power Button with LED
  • 1 x USB 3.0
  • 1 x USB 3.0 Charge Port
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI 2.0
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader
  • 2 x USB 3.0
  • 1 x USB 3.1 Type-C/Thunderbolt 3
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Grey
Dimensions 115 x 35 x 111 (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Intel
Telephone:
0870 607 2439
Loading Please Wait

Please wait . . .

Reviews
Intel NUC Barebone Kit, i5-7260U, DDR4, M.2, GbE, WiFi/BT, Intel Iris Plus Graphics 640, Thunderbolt 3 is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Small. neat, fast but expensive. Seems to work well with Windows 10 and Ubuntu. Bios needed to be updated to fix problem where wireless adaptor was not available/kept switching off.
